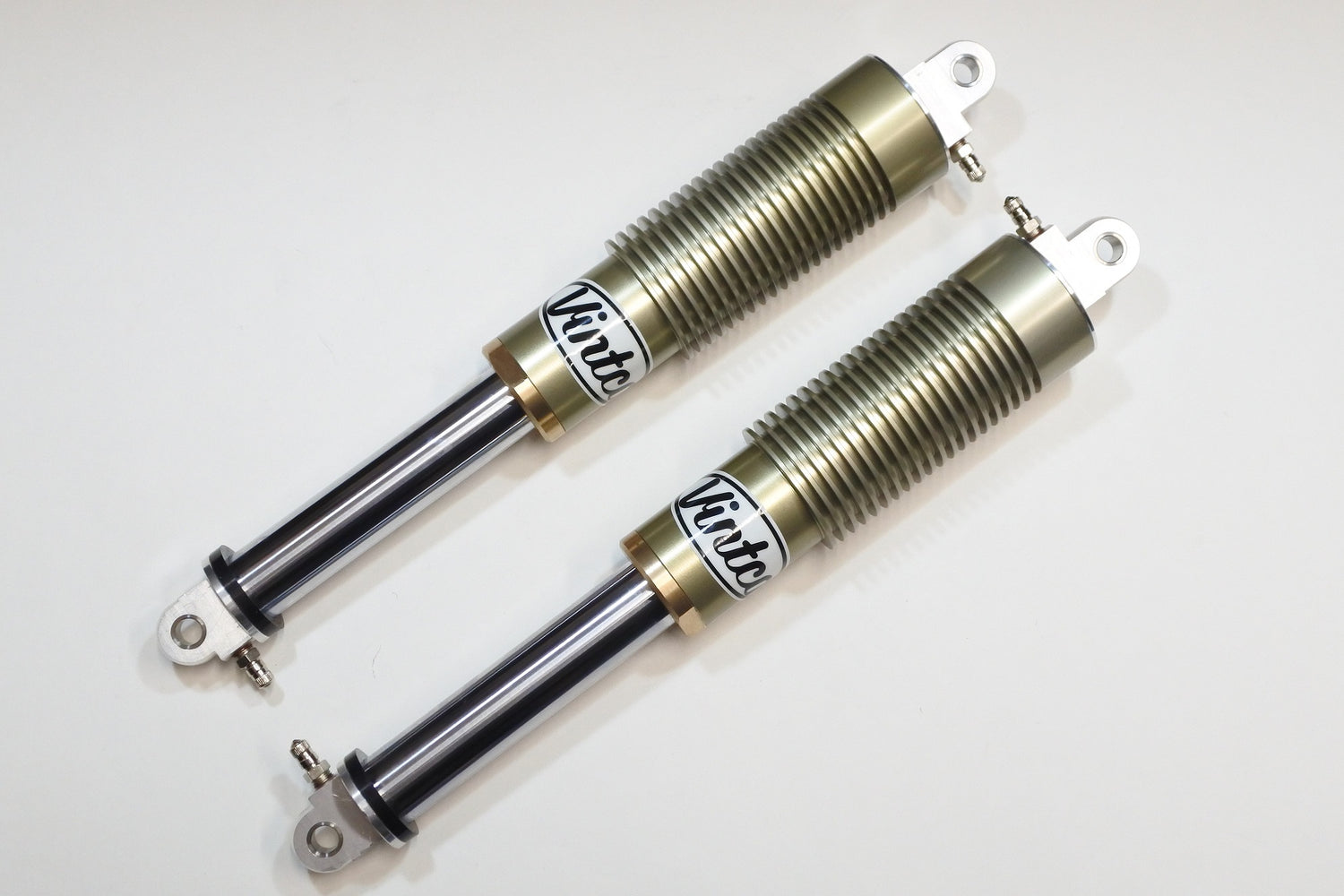

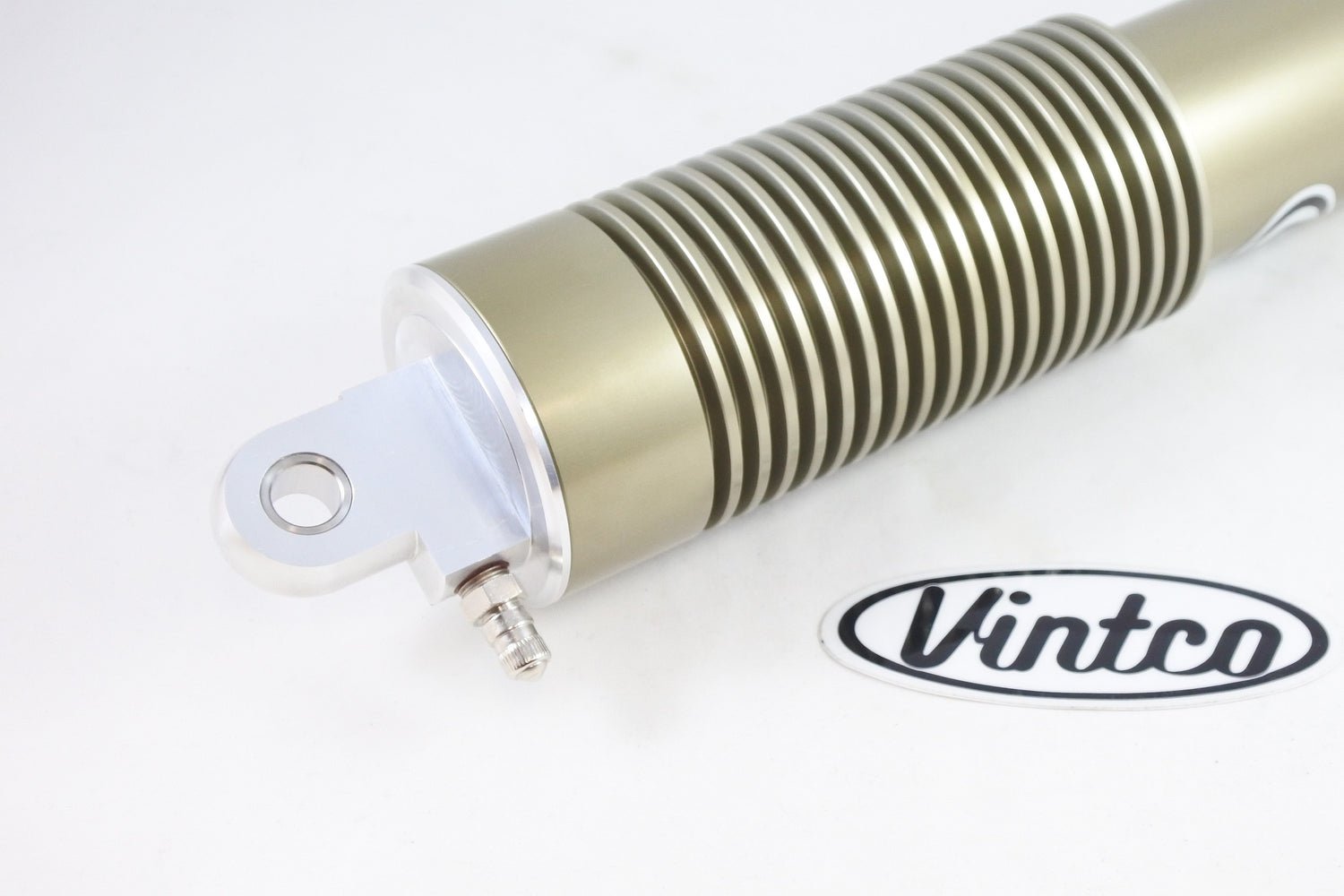

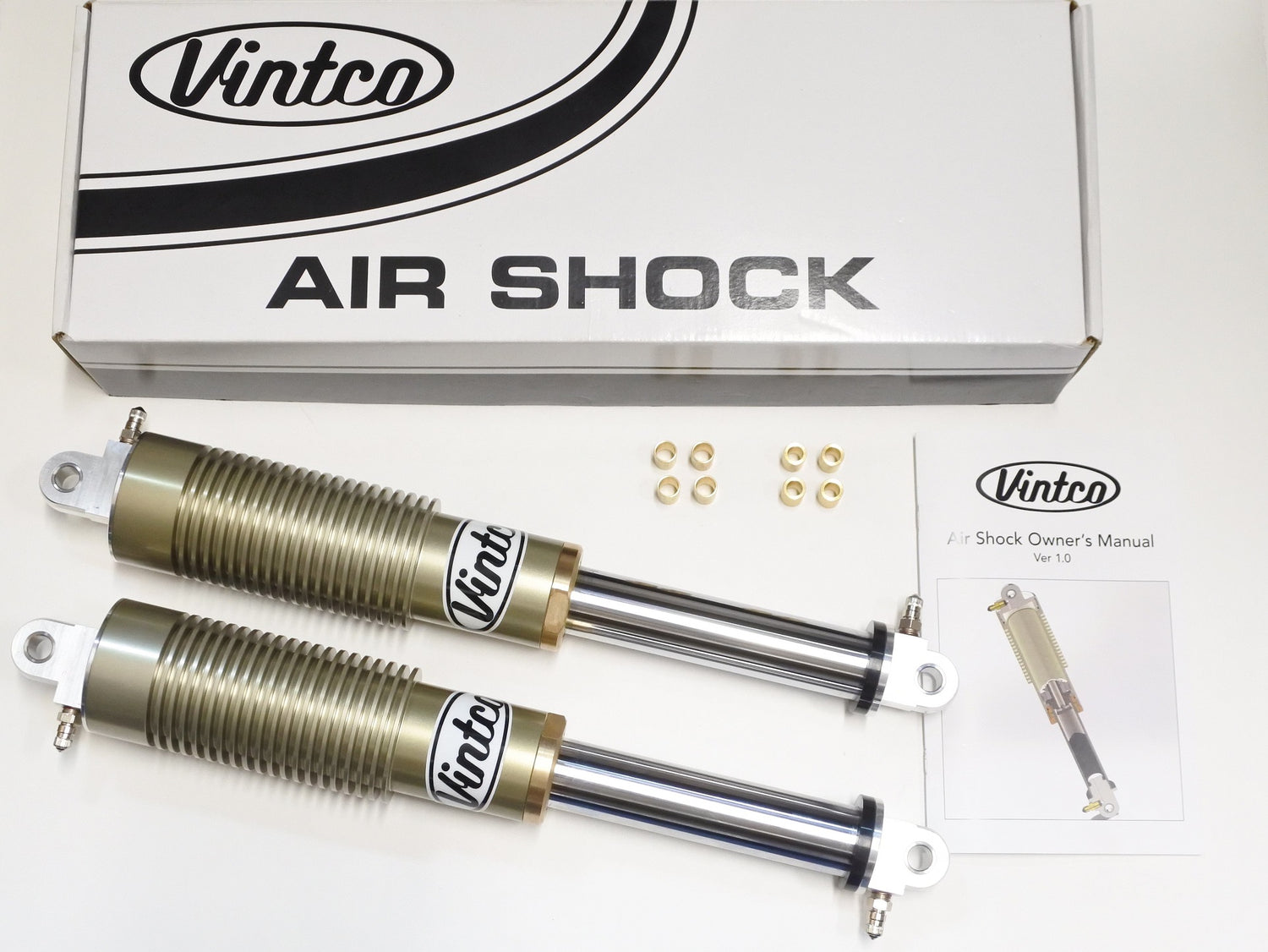

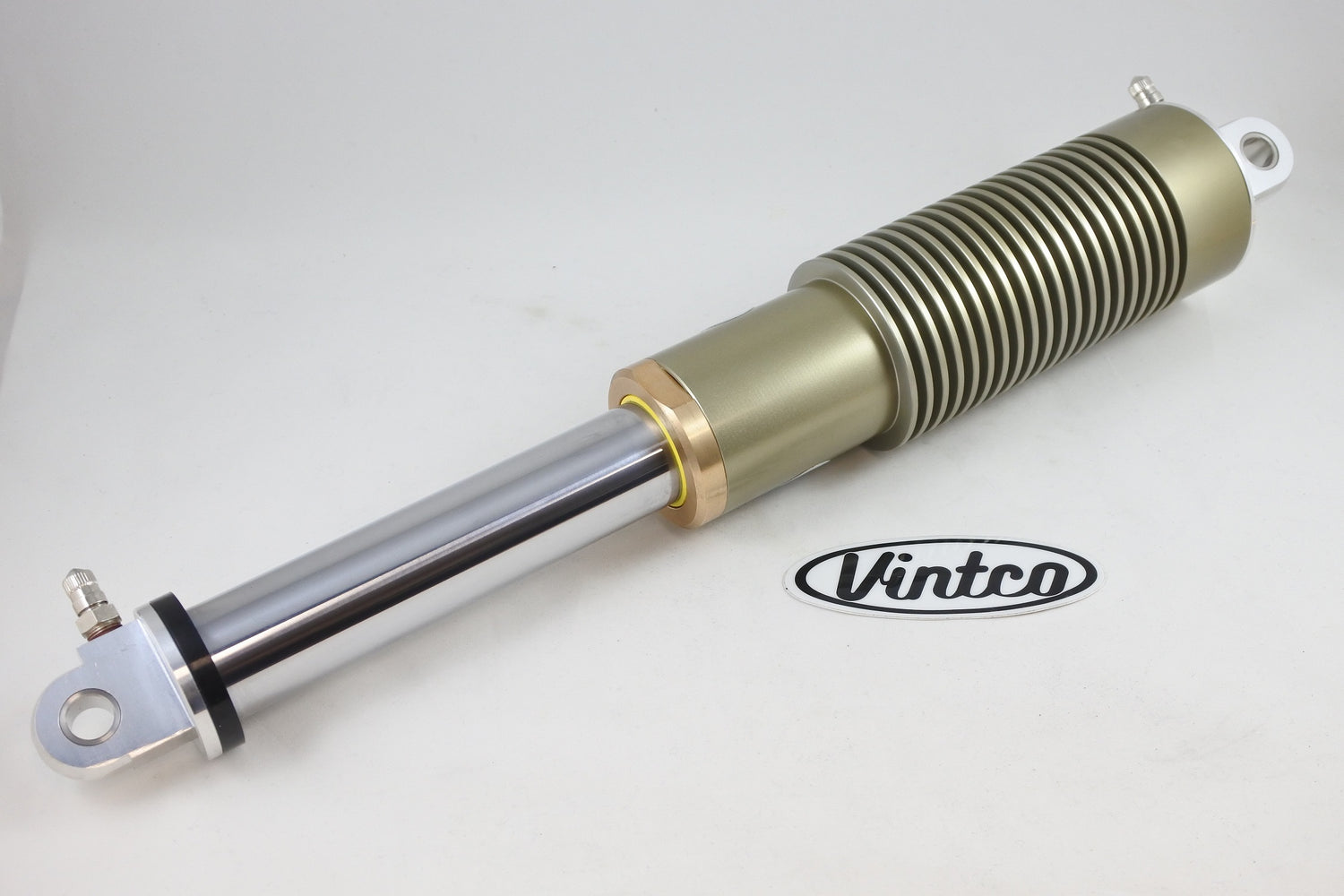

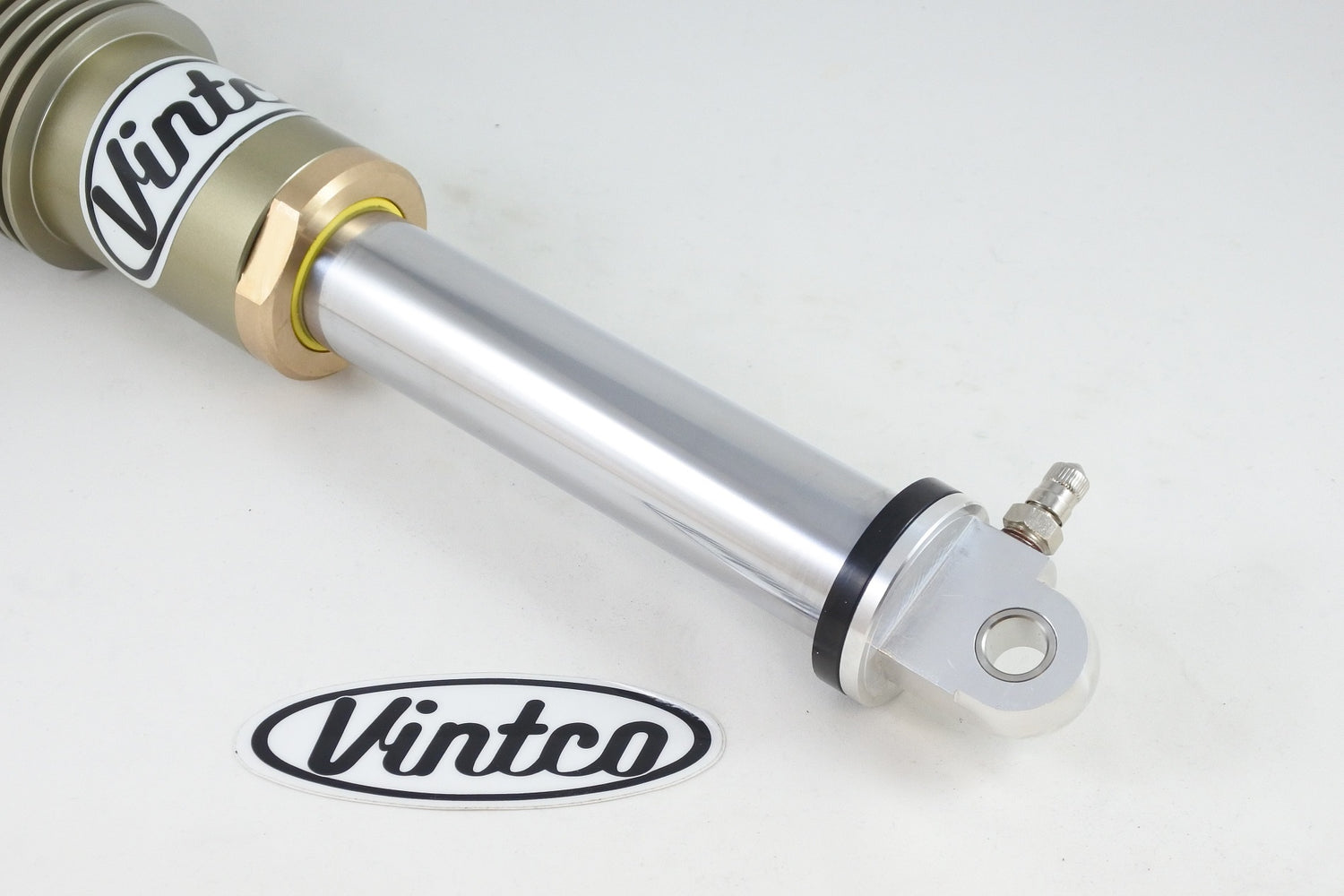

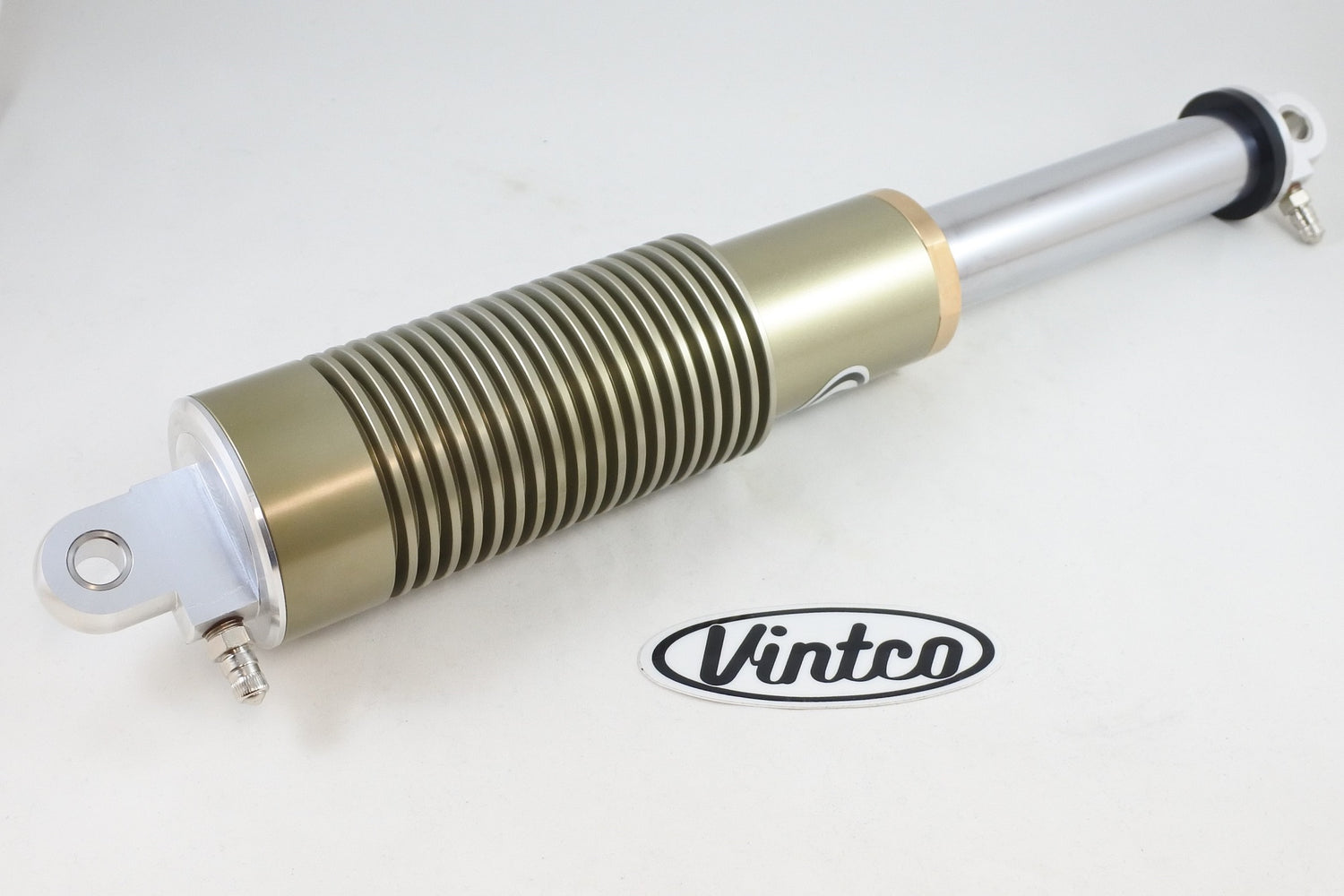

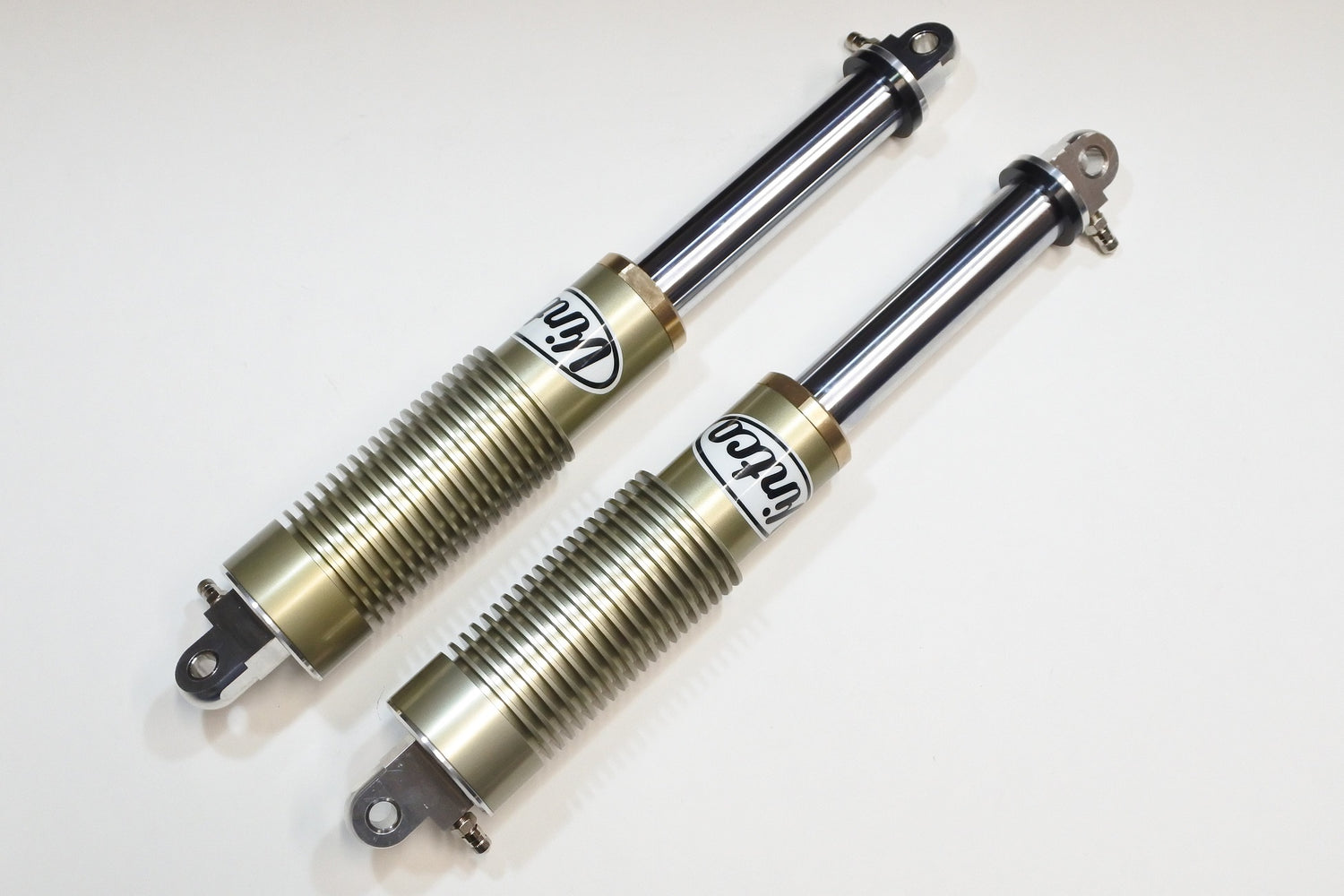

VintCo KSHOCK16.25 is a pair of 16.25-inch air shocks made as an exact duplicate of the original late-1970s air shocks used on a range of Honda, Husqvarna, Kawasaki, KTM and Suzuki models. The shocks use a two-chamber high- and low-pressure design for suspension adjustment, are supplied assembled with spacers, reducer bushings and a VintCo owner’s manual, and are rebuildable with VintCo rebuild kits. Some applications may require modification during installation.

Features

• Exact duplicate of the original 1970s air shocks
• Pair of complete air shocks
• Adjustable two-chamber design with high- and low-pressure chambers
• Allows suspension setup without changing springs to suit rider weight
• Supplied assembled and ready for installation
• Supplied without air; air or nitrogen must be added to set sag correctly
• Various bushings supplied to assist fitment
• Some models may require modification during installation
• Fully rebuildable with VintCo rebuild kits
• Hand assembled in the USA
• Includes spacers
• Includes VintCo owner’s manual
• All new components
• Customisable for many models
• Available in the VintCo range in lengths from 13.5 in to 17.5 in
• Discount codes do not apply to shock purchases

Specifications

• VintCo Part Number: KSHOCK16.25
• Nominal shock length: 16.25 in
• Distance centre to centre: 16.287 in / 413.7 mm
• Travel: 5.250 in / 133.4 mm
• Collapsed length: 11.035 in / 280.3 mm
• Cap reducer bushings: 4 x 10 x 12 x 16.5 mm

Vehicle Fitments

• 1971 KTM MC125
• 1972 KTM MC125
• 1973 KTM MC125
• 1974 KTM MC125
• 1975 KTM MC125
• 1977 Kawasaki KX125
• 1977 Kawasaki KX250
• 1977 Kawasaki KX400
• 1978 Kawasaki KX125
• 1978 Kawasaki KX250
• 1978 Honda XL250
• 1978 Kawasaki KX400
• 1979 Kawasaki KX125
• 1979 Kawasaki KX250
• 1979 Suzuki RM125
• 1979 Suzuki RM250
• 1979 Suzuki RM100
• 1979 Husqvarna WR390
• 1979 Husqvarna CR390
• 1979 Honda XR185
• 1979 Husqvarna OR250
• 1979 Husqvarna WR250
• 1979 Husqvarna OR390
• 1979 Husqvarna CR125
• 1979 Husqvarna WR125
• 1979 Kawasaki KDX400
• 1979 Honda XL250
• 1979 Kawasaki KX400
• 1980 Honda CR125
• 1980 Suzuki RM125
• 1980 Suzuki RM250
• 1980 Suzuki RM100
• 1980 Suzuki DR400
• 1980 Husqvarna WR390
• 1980 Husqvarna CR390
• 1980 Honda XR200
• 1980 Husqvarna OR250
• 1980 Husqvarna WR250
• 1980 Husqvarna OR390
• 1980 Husqvarna CR125
• 1980 Husqvarna WR125
• 1980 Kawasaki KDX400
• 1980 Honda XL250
• 1980 Suzuki SP400
• 1981 Honda XR200
• 1981 KTM GS125
• 1981 KTM GS250
• 1981 KTM GS495
• 1981 KTM MC125
• 1981 KTM MC250
• 1981 KTM MC495
• 1981 Suzuki DR500
• 1982 Honda XR200
• 1982 KTM GS125
• 1982 KTM GS250
• 1982 KTM GS495
• 1982 KTM MC125
• 1982 KTM MC250
• 1982 KTM MC495
• 1982 Suzuki DR500
• 1983 Honda XR200
• 1984 Honda XR200
