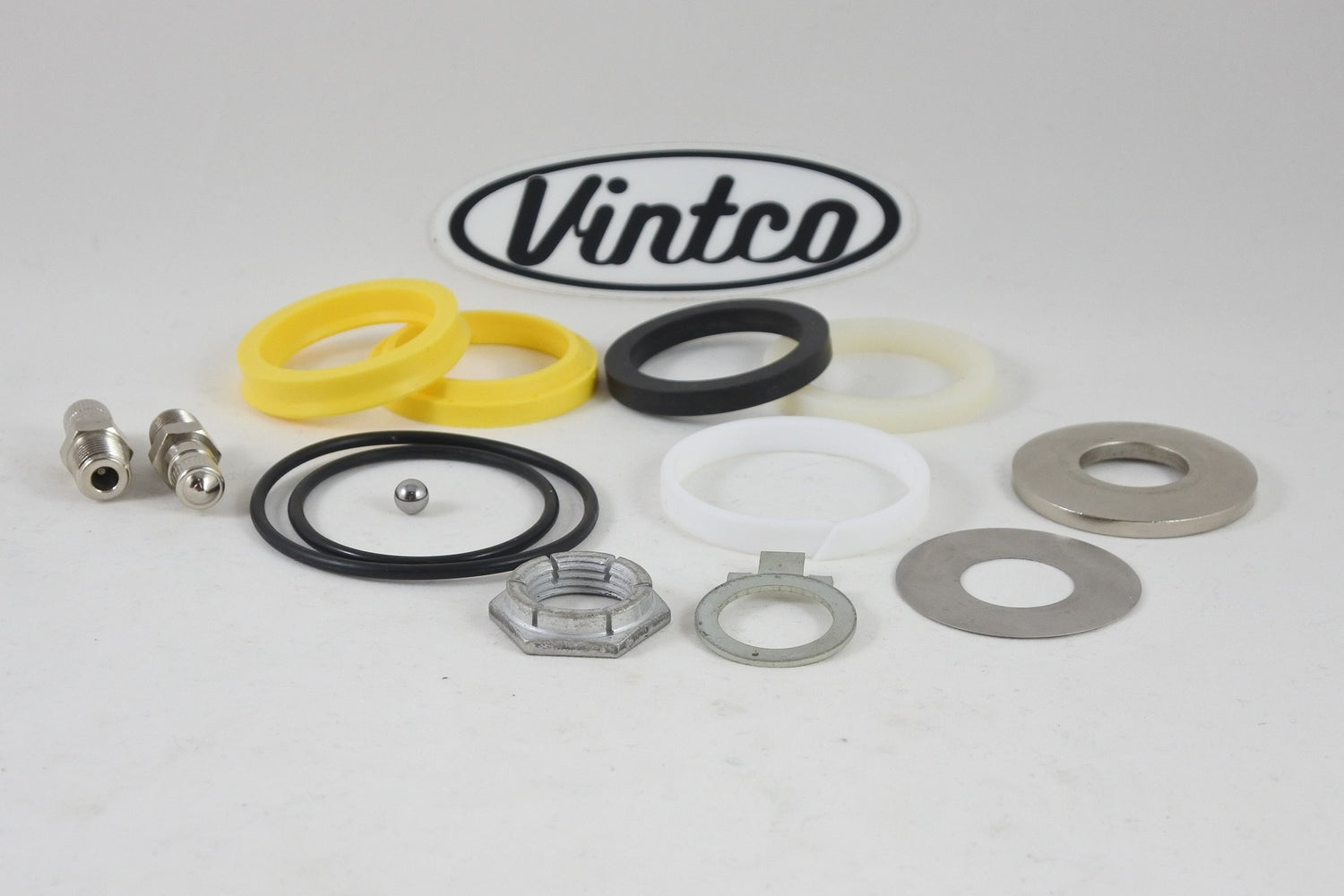

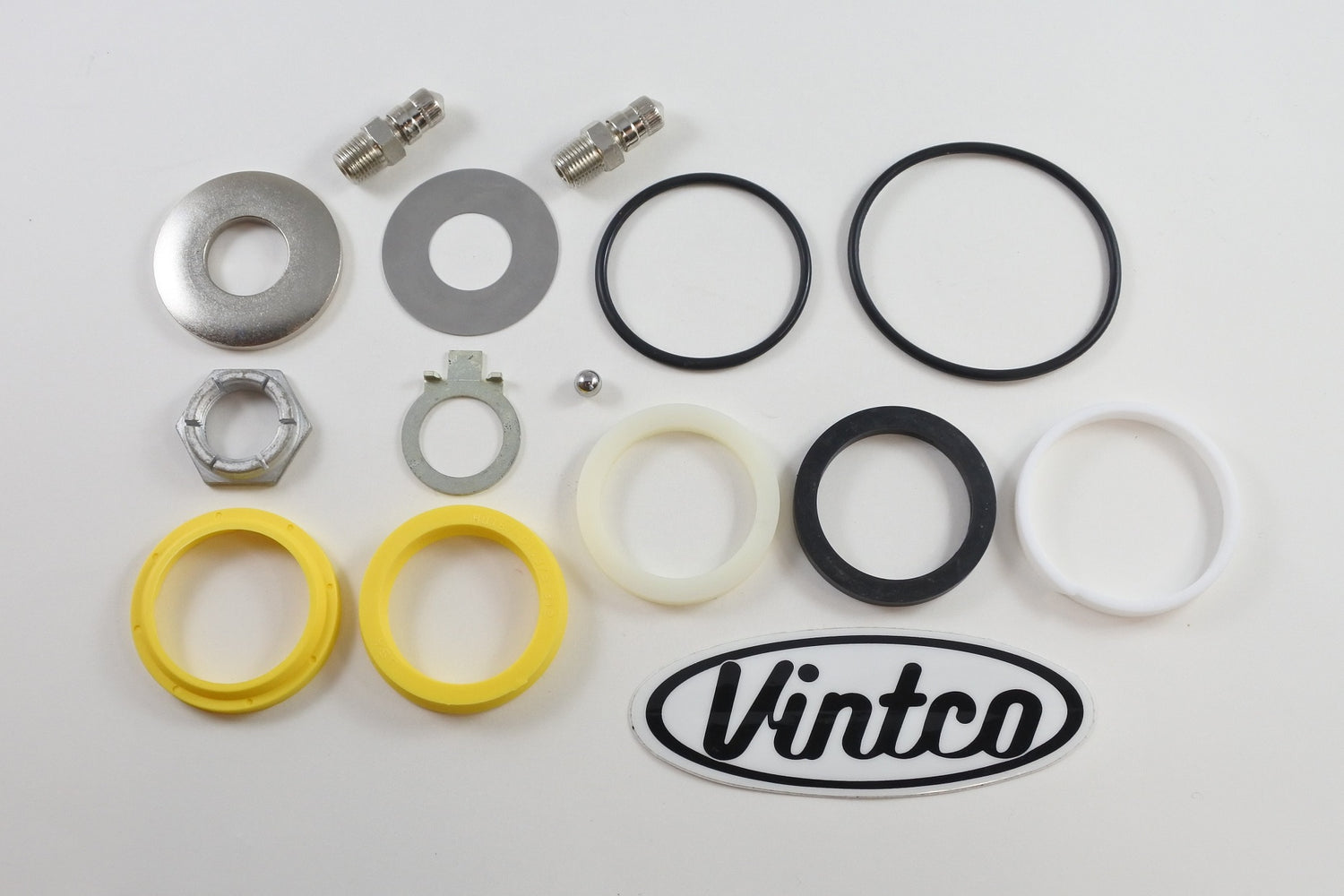

The VintCo KSH-REBUILD air shock complete rebuild kit is intended for rebuilding one VintCo or original Fox air shock, including all shock lengths. It includes the key sealing, damping and valve components required for a full rebuild, and is manufactured using modern materials and production methods to provide fit comparable with the original Fox air shocks. Individual rebuild parts for Fox air shocks are also available from VintCo.

Features

• Complete air shock rebuild kit
• Suitable for all VintCo and original Fox air shocks
• Covers all air shock lengths
• Includes the critical parts required for a rebuild
• One kit rebuilds one shock
• Two kits are required to rebuild two shocks
• Manufactured with modern materials and manufacturing techniques
• Compatible with VintCo and original Fox air shock applications
• Individual rebuild parts are available from VintCo

Specifications

• VintCo Part Number: KSH-REBUILD
• Item Category: Air Shock Rebuild Parts
• 1 shaft seal, 33.5 × 43.5 × 7.9 mm
• 1 shaft wiper, 34.5 × 45.5 × 7.25 mm
• 1 bearing O-ring, 42 × 48 × 2.6 mm
• 1 cap O-ring, 55 × 60 × 2.6 mm
• 1 top-out bumper, 34.5 × 44.5 × 5.3 mm
• 1 shaft bumper, 34.4 × 47.5 × 6.35 mm
• 1 piston ring, 6.35 mm
• 1 piston lock ring, 1.1 mm
• 1 valve ball
• 1 top-out plate (washer), 4.6 mm
• 1 large valve (washer), 0.25 mm
• 2 tank valves
• 2 tank valve caps
