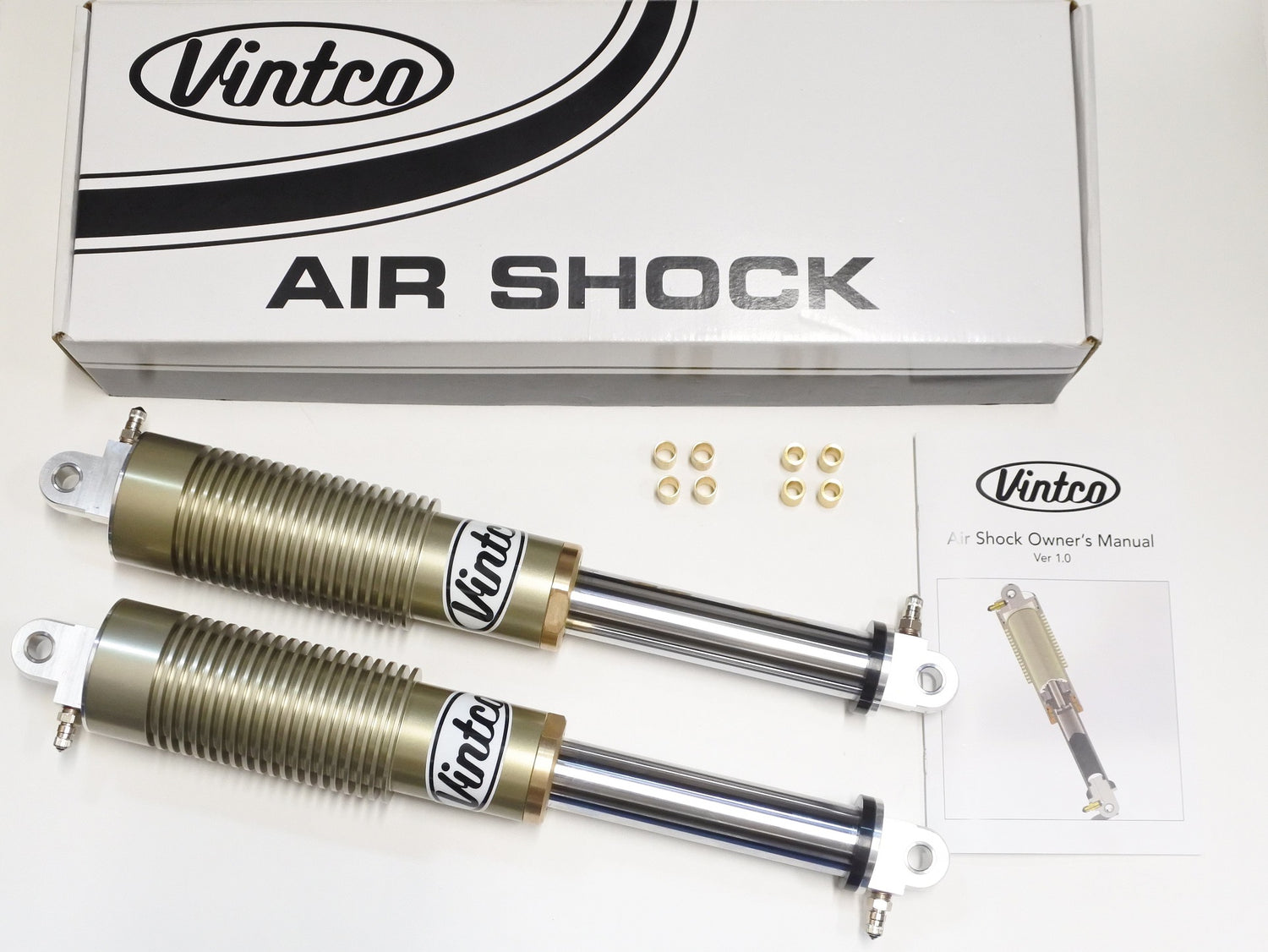

VintCo KSHOCK15.75 is a pair of 15.75-inch air shocks made as an exact duplicate of the original late-1970s air shocks for selected Can-Am and Suzuki off-road models. The shocks use a two-chamber high- and low-pressure design for suspension setup adjustment and are supplied assembled and ready for installation with spacers, reducer bushings and a VintCo owner’s manual. This product is part of the VintCo air shock range available in lengths from 13.5 in to 17.5 in. Some modifications may be required for installation on specific dirt bikes. Discount codes do not apply to shock purchases.

Features

• Exact duplicate of original late-1970s air shocks
• Adjustable two-chamber design with high- and low-pressure chambers
• Allows suspension setup adjustment to suit rider preference
• Supplied assembled and ready for installation
• Requires air or nitrogen to be added during setup to set sag correctly
• Fully rebuildable with VintCo rebuild kits
• Hand assembled in the USA
• Includes manual and spacers
• Includes all new components
• Customisable for many models
• Same design as 1970s air shocks

Specifications

• VintCo Part Number: KSHOCK15.75
• Product type: Air shocks
• Quantity: Pair of complete air shocks
• Distance centre to centre: 15.787 in / 401 mm
• Travel: 5.250 in / 133.4 mm
• Collapsed length: 10.535 in / 267.6 mm
• Cap reducer bushings included: 4
• Cap reducer bushing size: 10 x 12 x 16.5 mm

Vehicle Fitments

• 1978 Suzuki RM400
• 1979 Suzuki RM400
• 1980 Suzuki RM400
• 1980 Suzuki PE400
• 1980 Can Am 125MX
• 1980 Can Am 175 Qualifier
• 1980 Can Am 250MX
• 1980 Can Am 370MX
• 1980 Can Am 125 Qualifier
• 1980 Can Am 250 Qualifier
• 1980 Can Am 400 Qualifier
• 1981 Suzuki PE400
• 1981 Can Am 125MX
• 1981 Can Am 125 Qualifier
• 1981 Can Am 175 Qualifier
• 1981 Can Am 250MX
• 1981 Can Am 370MX
• 1981 Can Am 250 Qualifier
• 1981 Can Am 400 Qualifier
• 1982 Can Am 500 Sonic
