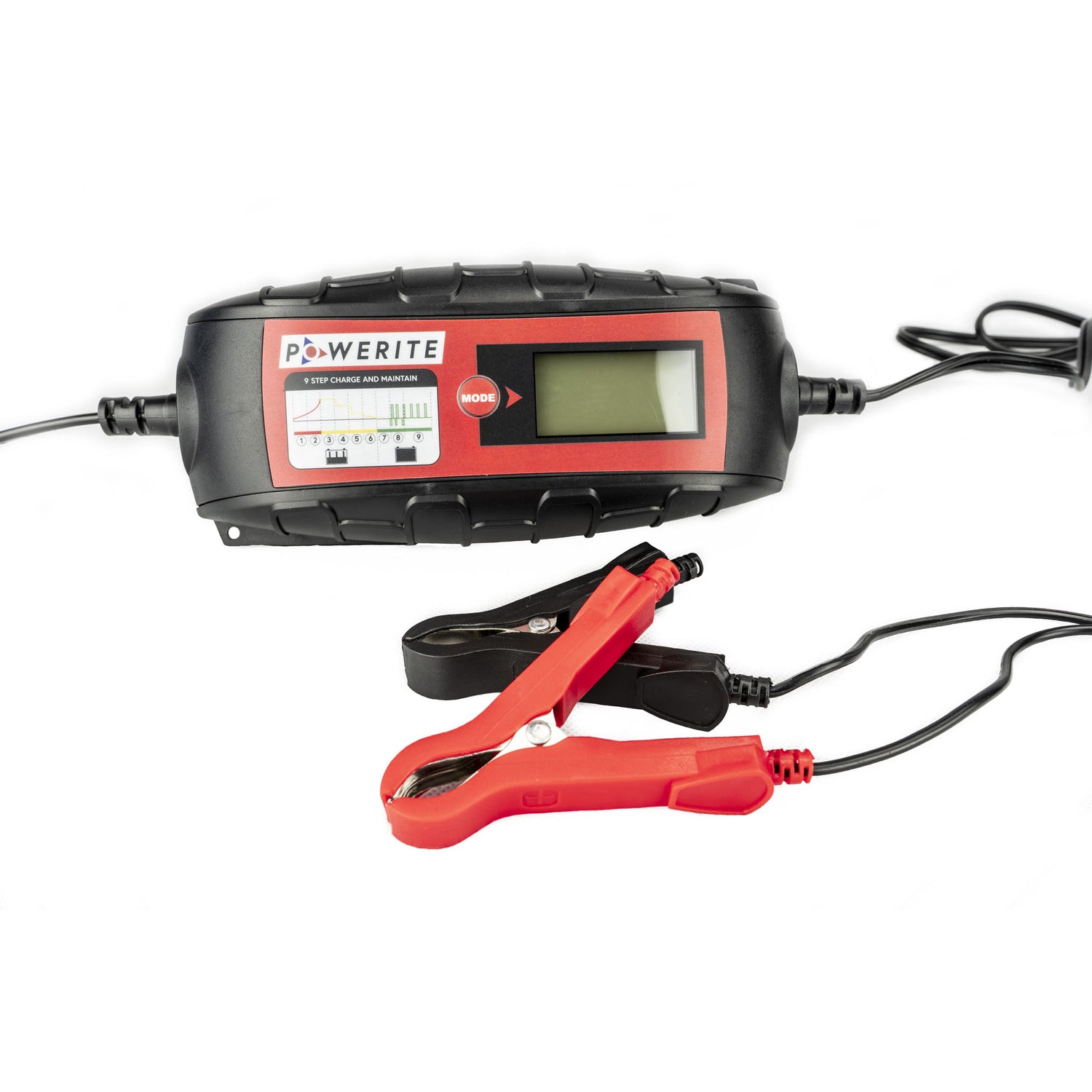

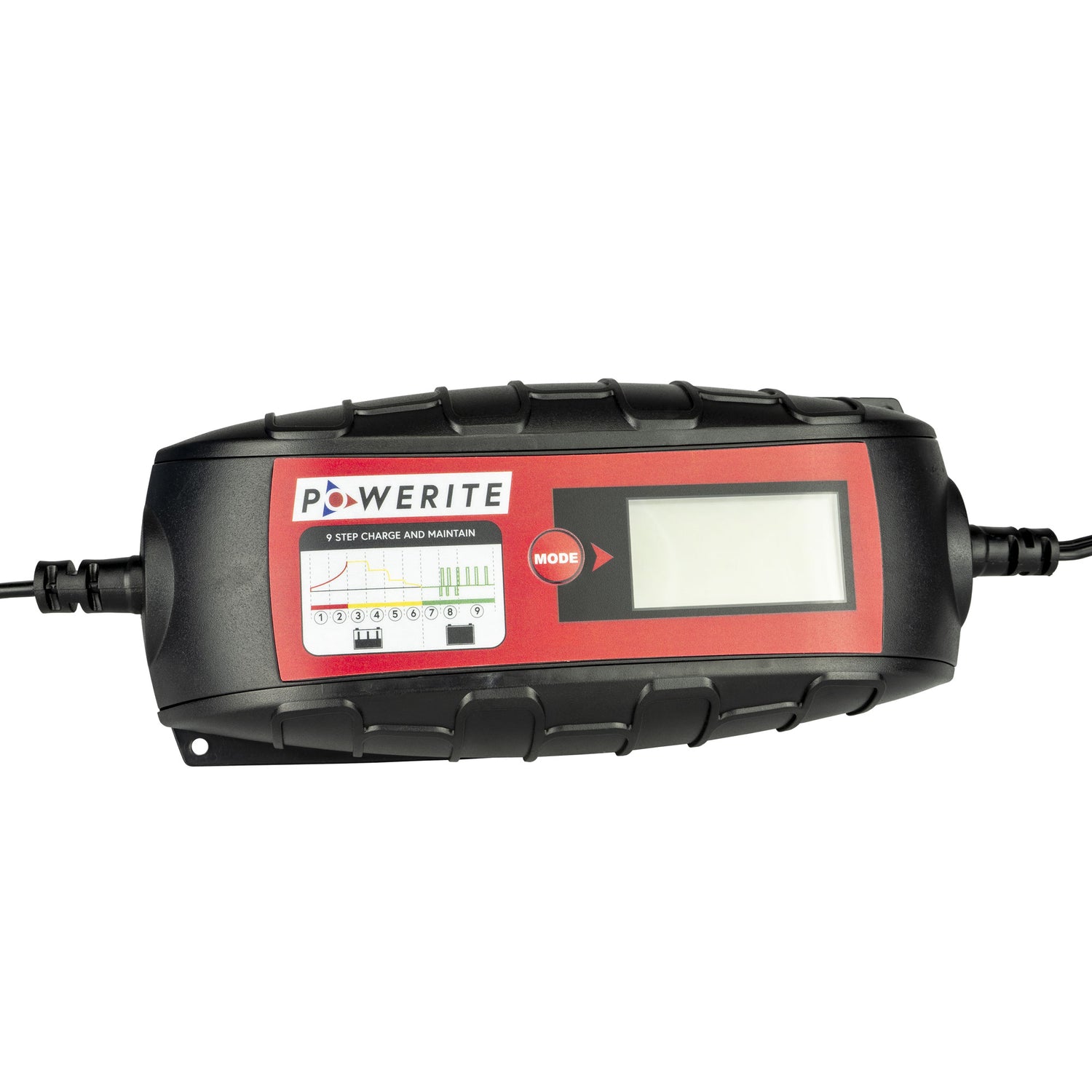

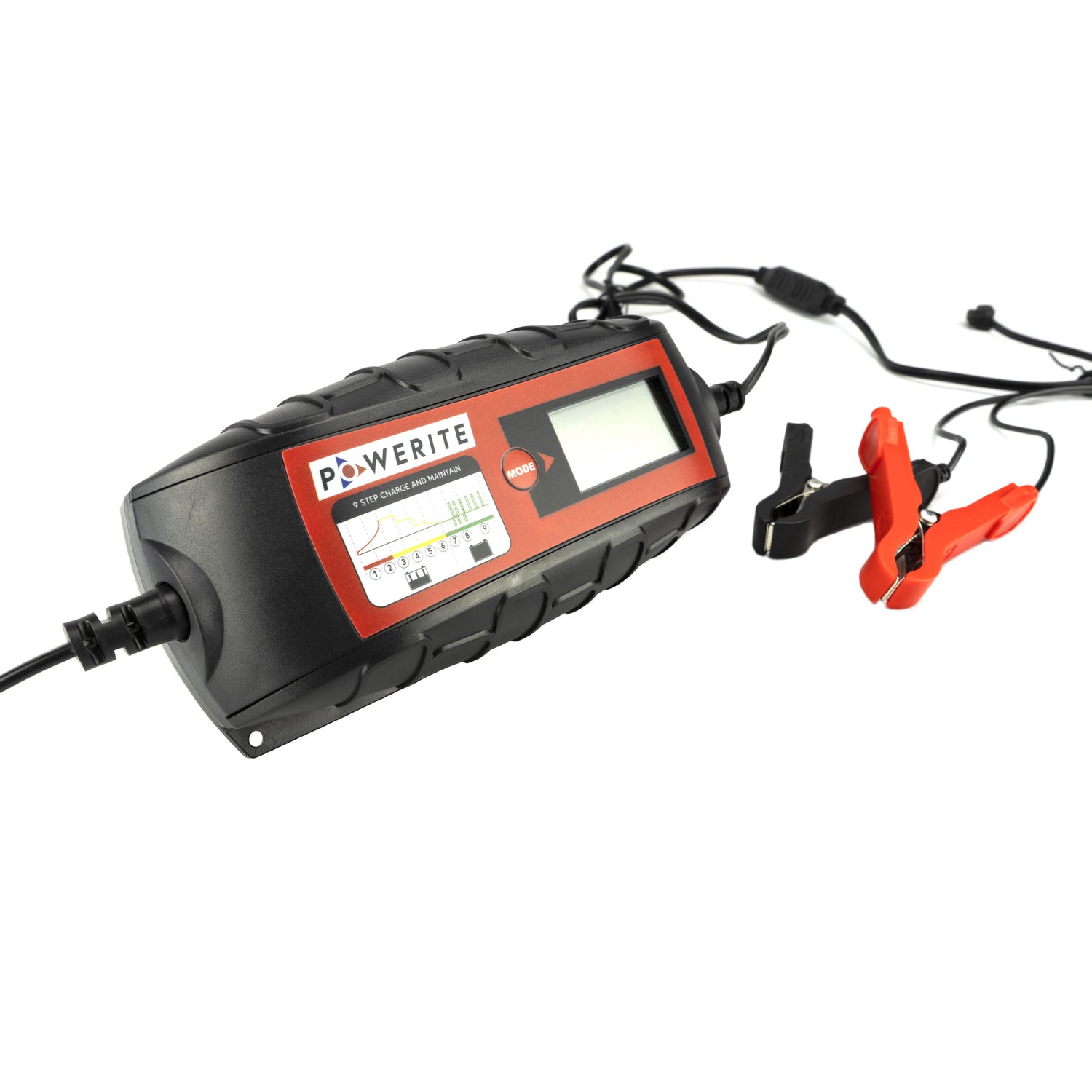

Powerite 5A 6V/12V Smart Battery Charger and maintainer with clamps

The charger is intended for trickle charging on lead-acid batteries and a variety of sealed, maintenance-free lead acid batteries with a nominal voltage of 6 volts or 12 volts and a capacity of 1.2 to 120 Ah as commonly installed in vehicles. Suitable batteries include:

• Lead-acid batteries (WET)
• Gel batteries (gel-like electrolyte)
• AGM batteries (electrolyte absorbed in glass mat).
• Maintenance-free lead acid batteries (MF)
• Not suitable for Li-ion batteries

Technical specifications
Operating voltage:	6V Mode	12V mode
Output voltage	220-240V AC, 50-60 Hz	220-240V AC, 50-60 Hz
Max. Charging voltage	6V DC	12V DC
Charging current	7.4 V	14.6V/14.8V
Ambient temperatures	2.5 A	2,5 A / 5,0 A
Housing IP class: IP65	-5°C to +40°C	-5°C to +40°C

It is equipped with a micro-processor.You must read and understand the manual before attempted useFunctions The charger is suitable for batteries with a capacity of 1.2-120 Ah.It is equipped with a micro-processor. Use the MODE key to select one of the below mentioned charging modes depending on battery type, battery condition and environmental conditions.Once you have selected the suitable charging mode, the charger will automatically detect the connected battery (voltage, capacity, charge status) and calculate the necessary charging parameters (charging voltage and current).If you select a charging mode unsuitable for the connected battery, or if the battery is defective or incorrectly connected, the charger will not charge and the fault icon will appear. This is NOT a fault on the charger.

---

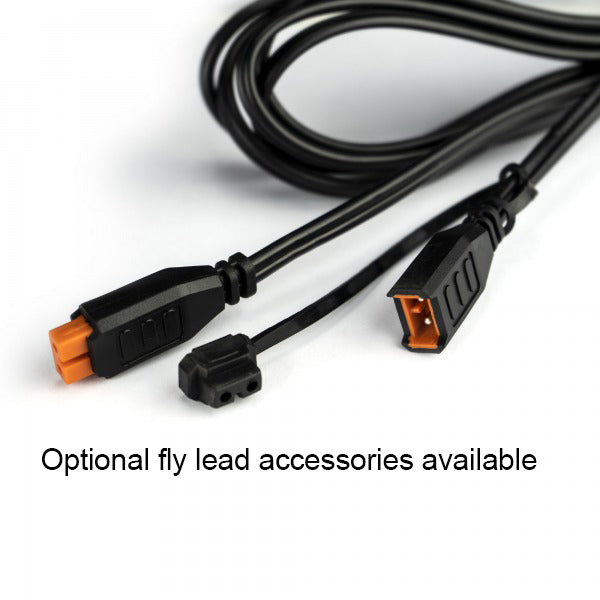

AccessoriesExtension flyleads that can be left permanently in place on the machine are also available separately. These optional leads simply replace the standard as supplied crocodile clips which will unplug from the charger.

• Permanent Flylead - ItemCode 4203005
• 3 metre extension cable for garage or workshop - ItemCode 4203006

Manufacturer Part No. (MPN): SPC5DVL
Barcode (EAN): 5056343097158
Weight (Est.): 633.5g (0.63kg)
Commodity Code: 8504409999 > Country Of Origin (ISO 3166-2): CHINA
