Kawasaki KX85 Top End Rebuild Kit – Original OEM Cylinder with Replacement Sleeve, Recently Rebored

Complete top end rebuild package featuring an original Kawasaki OEM cylinder, part number 11005-0052, fitted with a replacement cylinder sleeve and recently rebored to suit the supplied Meteor P1862 piston.

The original cylinder casting is retained, but the bore has been reconditioned using a replacement sleeve.

The package also includes an Athena top end gasket set and a Meteor small end needle roller bearing.

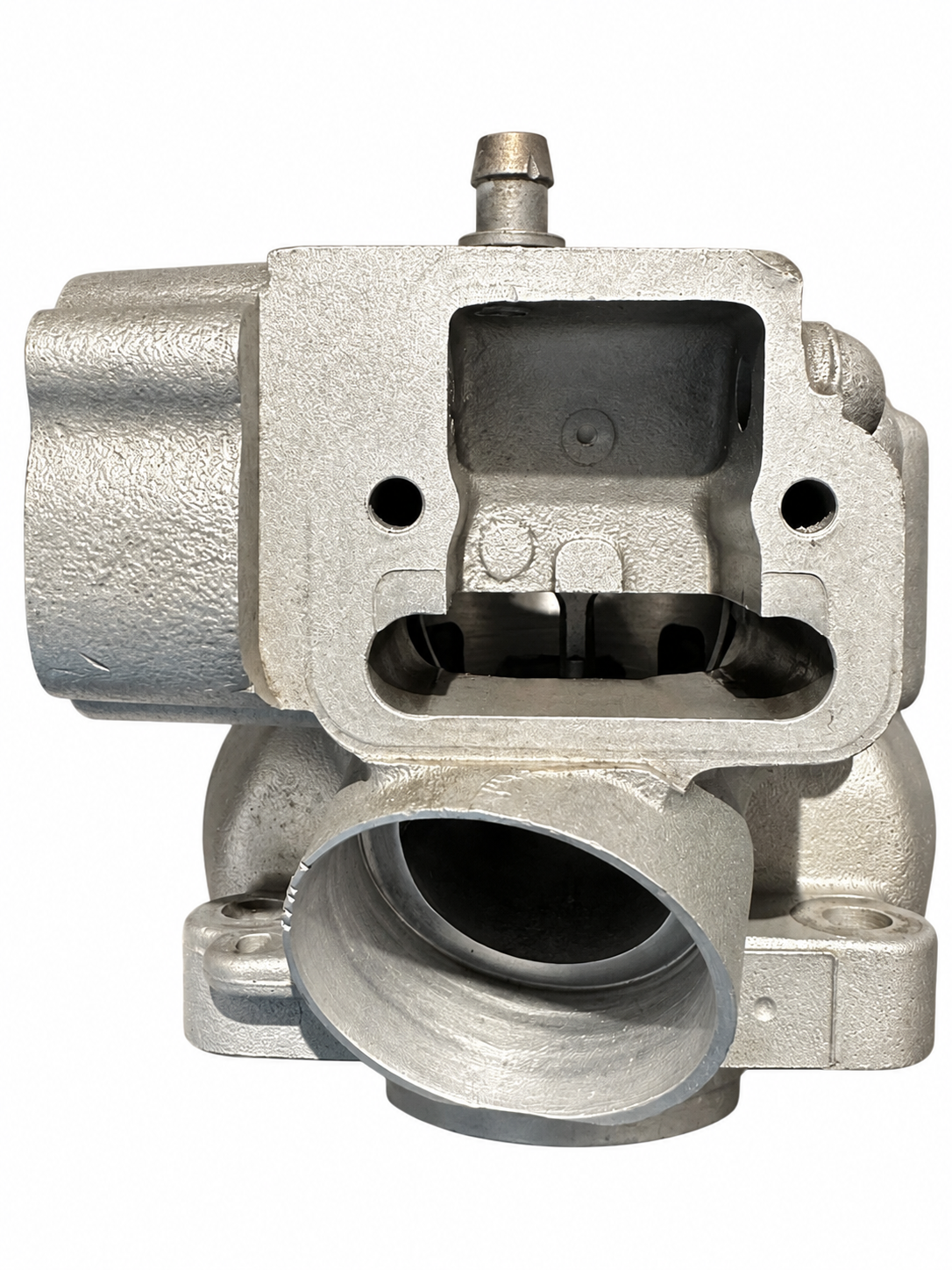

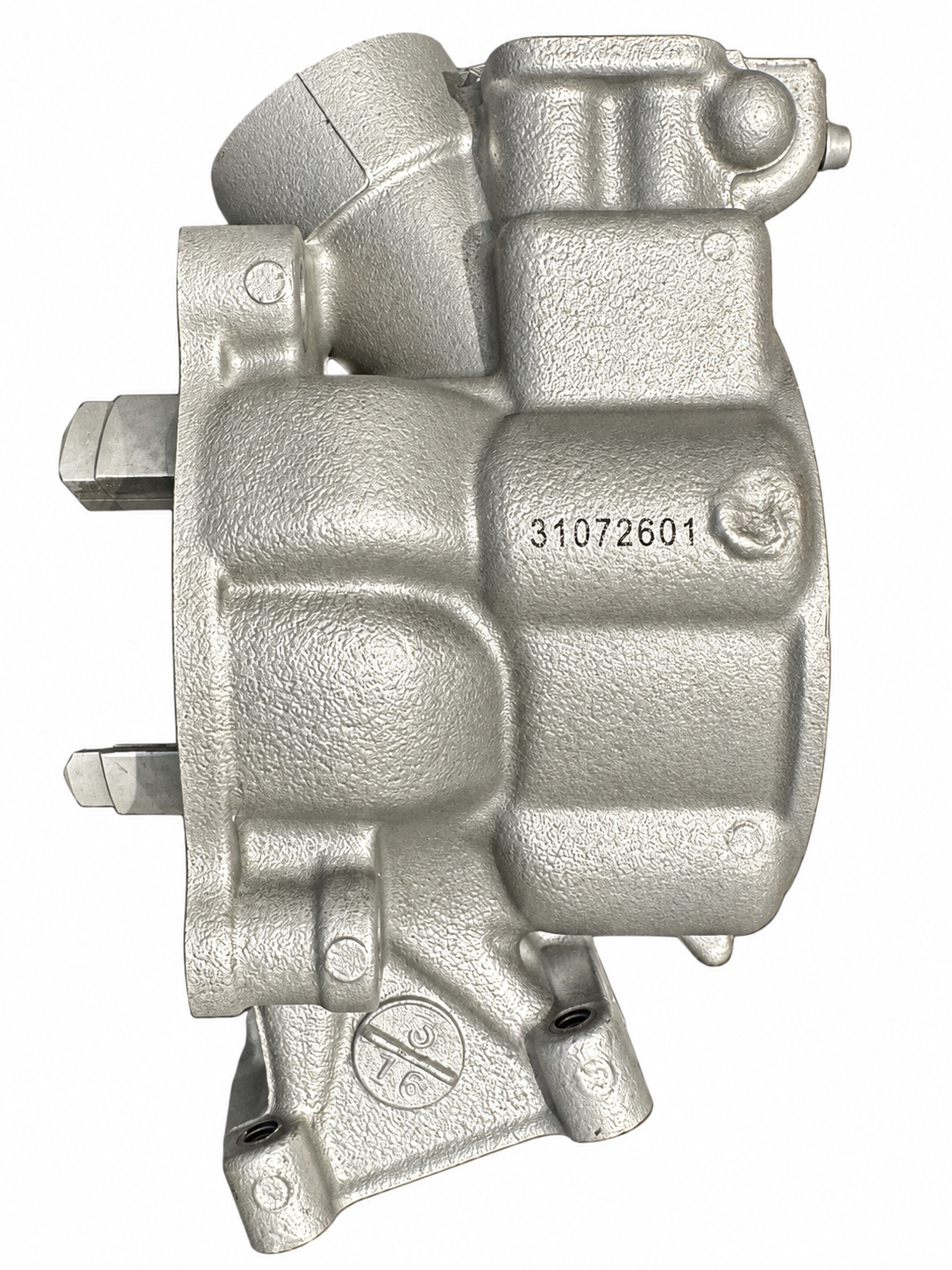

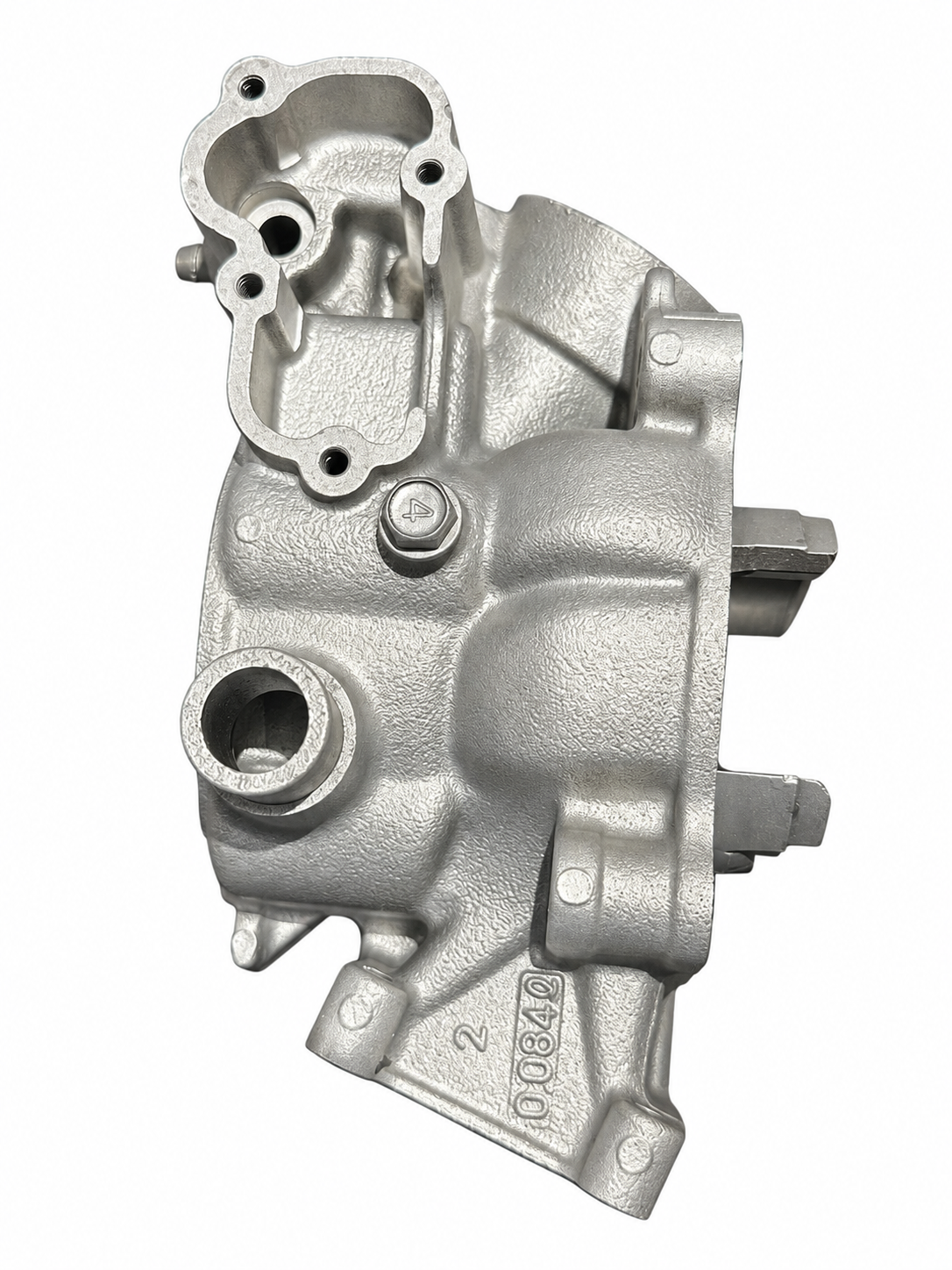

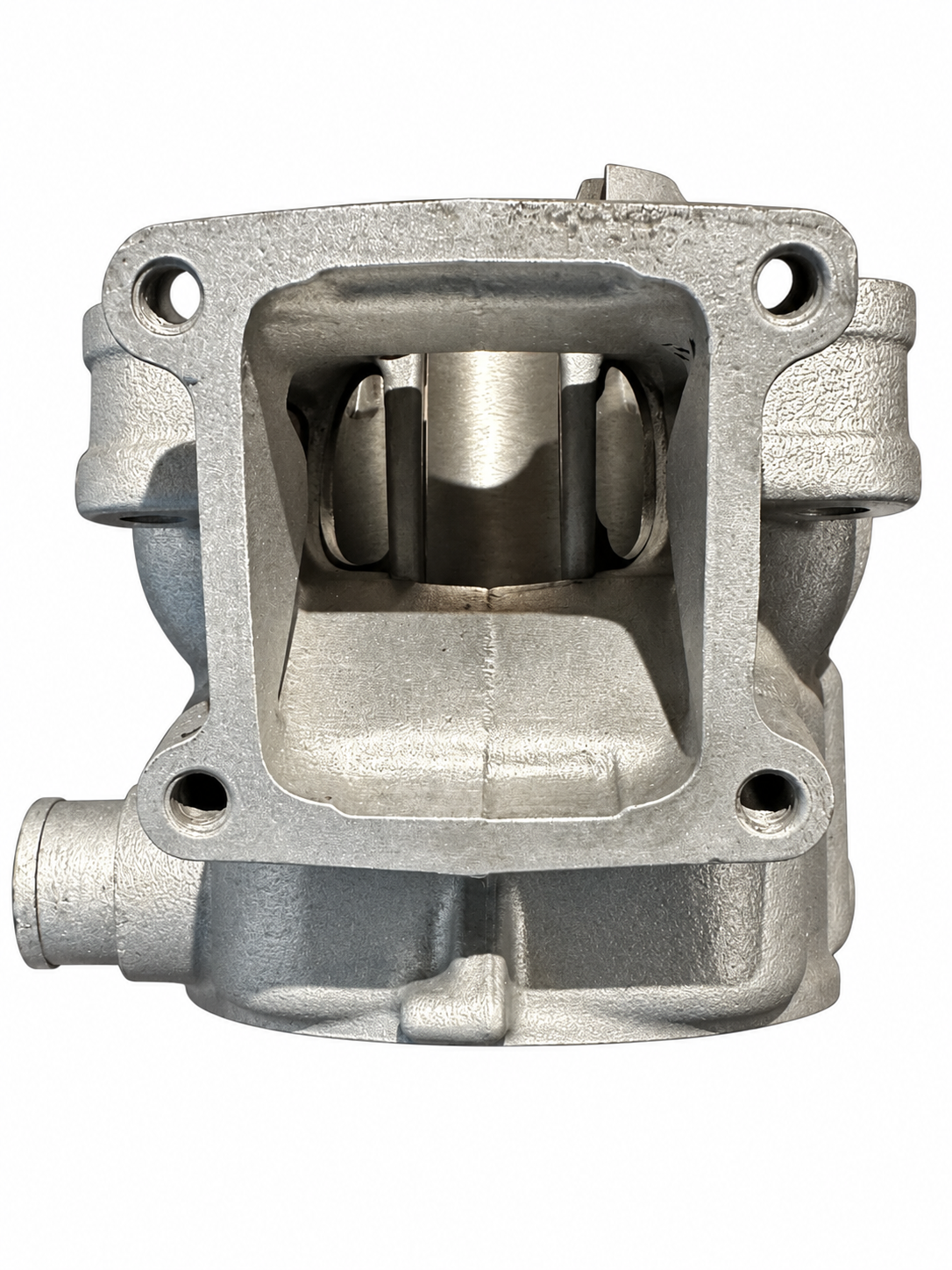

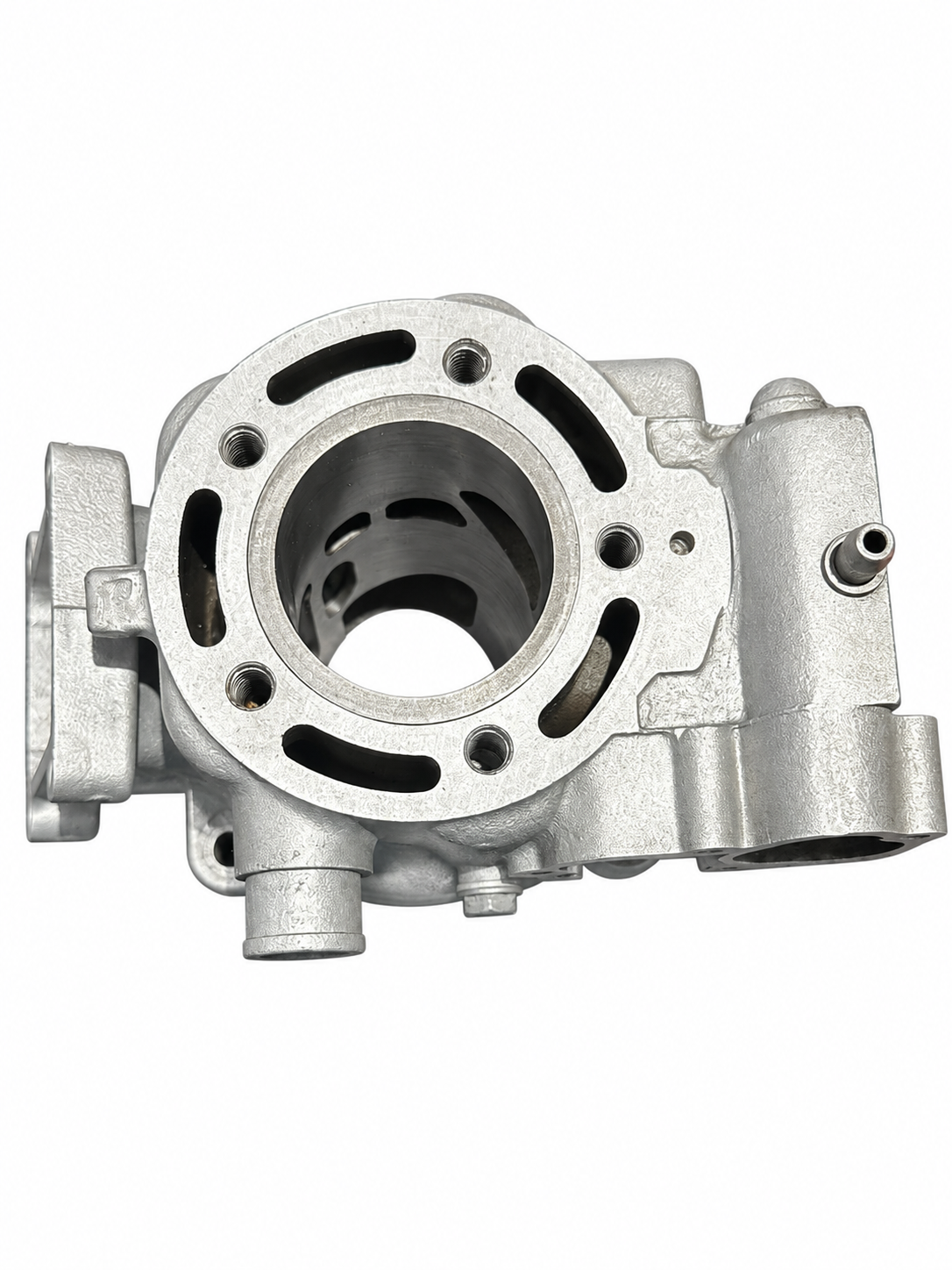

This is an original Kawasaki OEM cylinder that has been fitted with a replacement sleeve and recently rebored.

Please note: This is a refurbished OEM cylinder, not a brand-new original cylinder.

What's Included

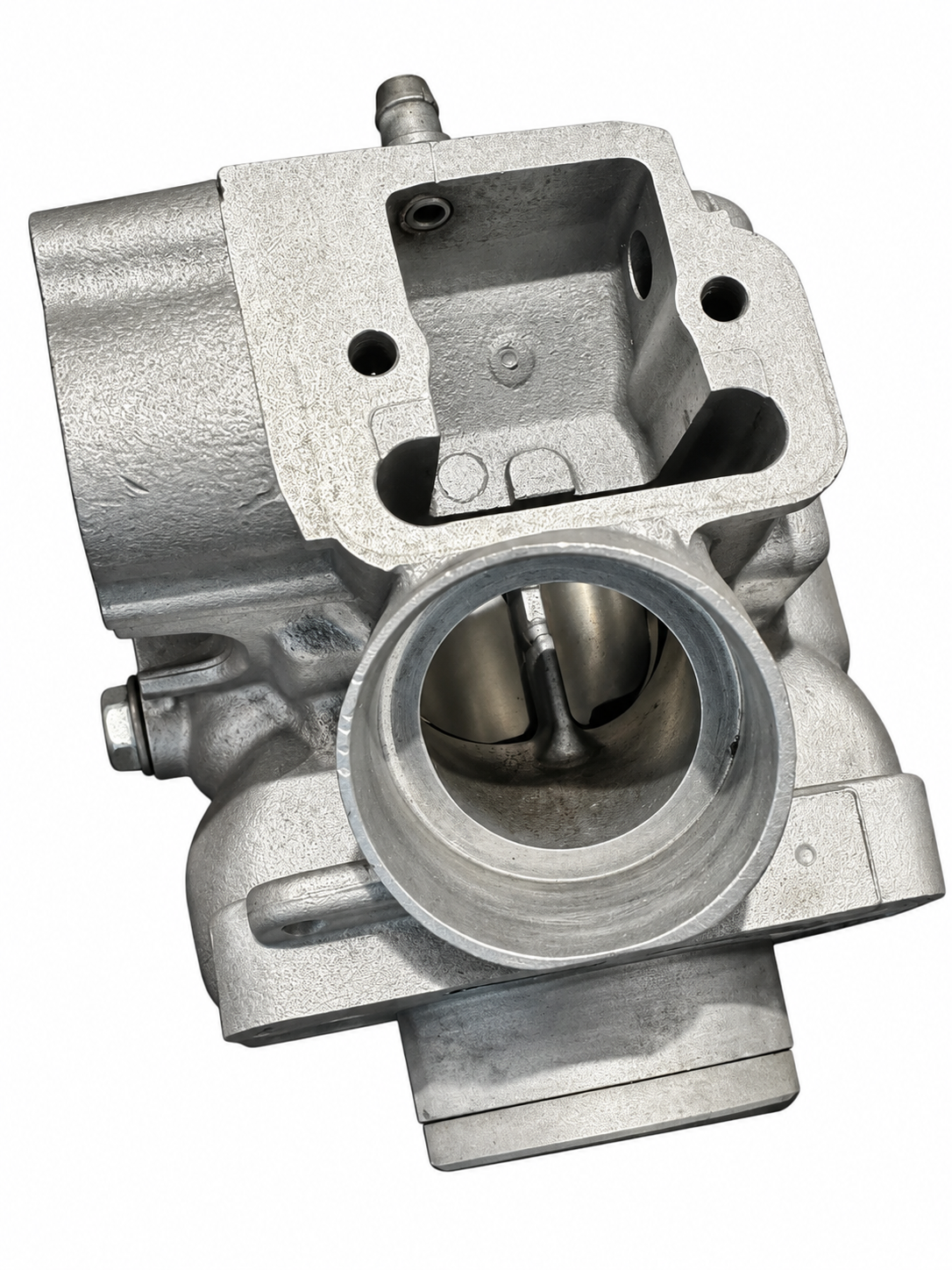

• Kawasaki OEM Cylinder – 11005-0052

  • Original Kawasaki cylinder casting
  • Replacement cylinder sleeve fitted
  • Recently rebored to suit the supplied piston
  • Used OEM component, reconditioned

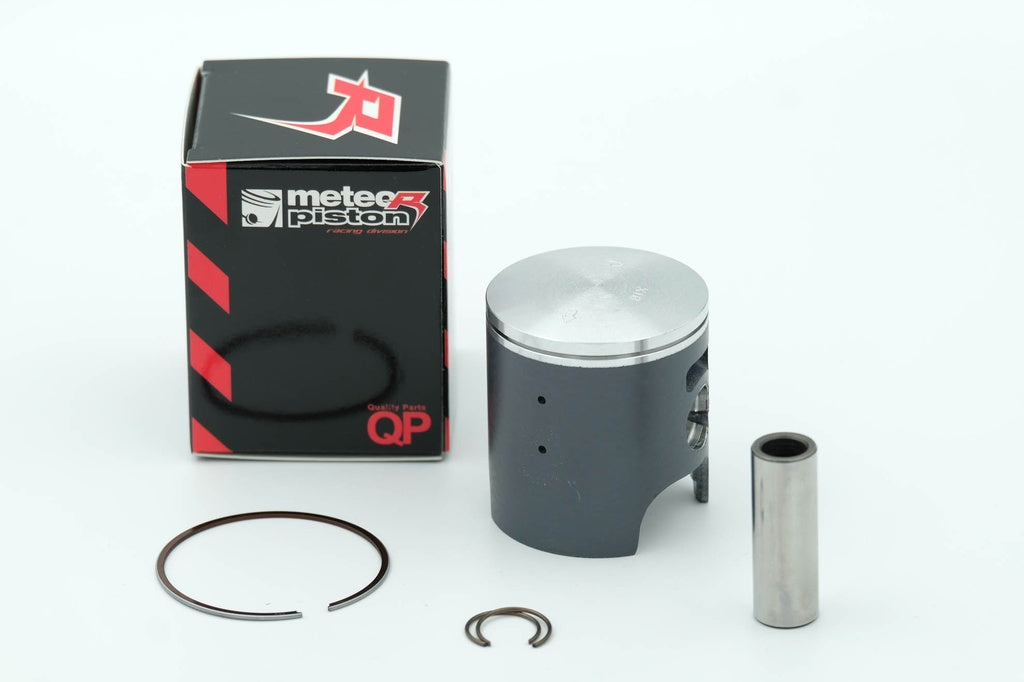

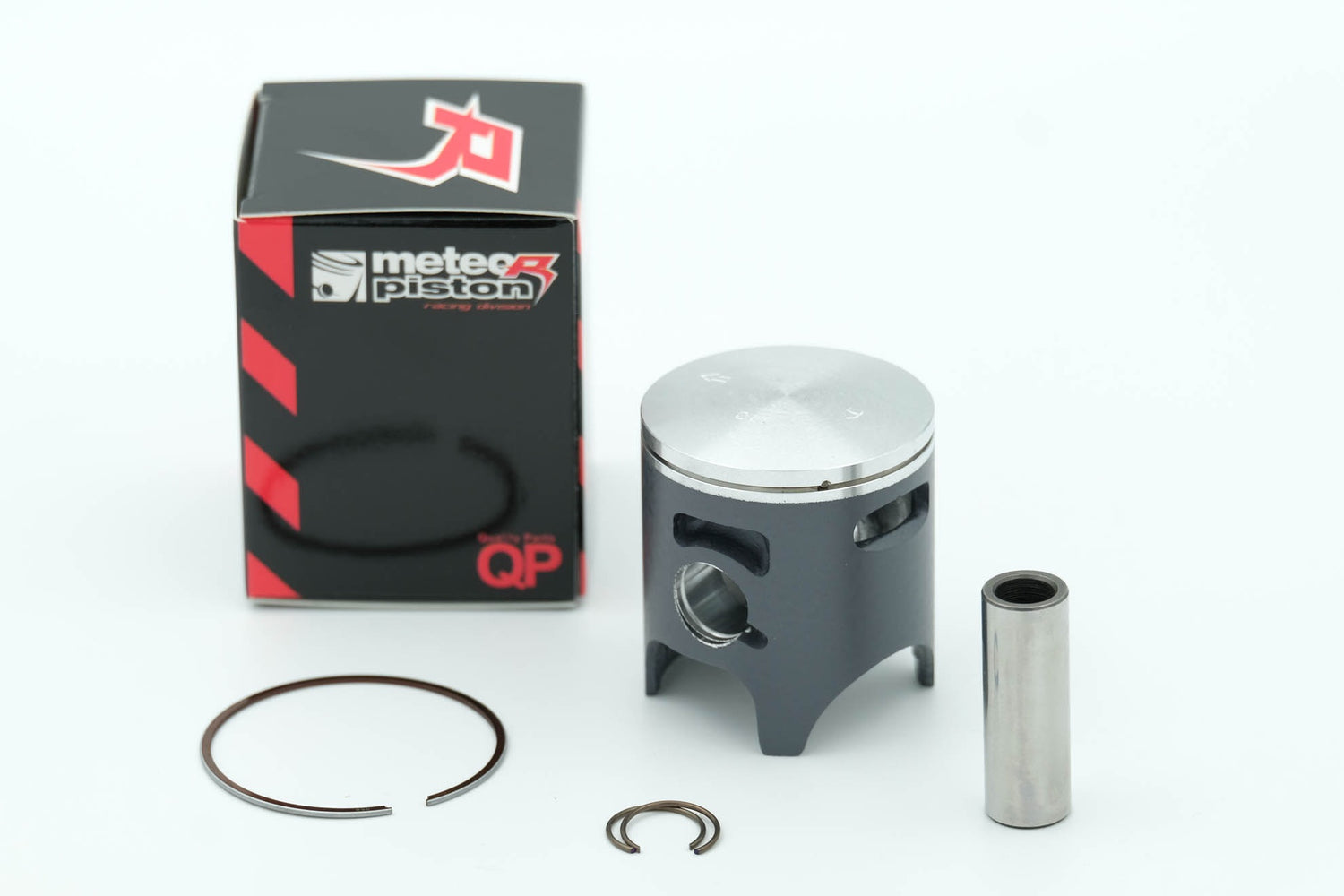

• Meteor P1862 Piston Kit

  • Mold technology: Gravity cast
  • Nominal Diameter [mm]: 48,5
  • Compression [mm]: 26,00
  • Total height [mm]: 54,00
  • Head type: Barrel head
  • Head height [mm]: 2,00
  • Bare piston weight [g]: 97
  • Item total weight [g]: 142
  • Item total dimensions L x L x H [mm]: 55 x 55 x 70
  • Additional features: Equipped with chrome steel ring

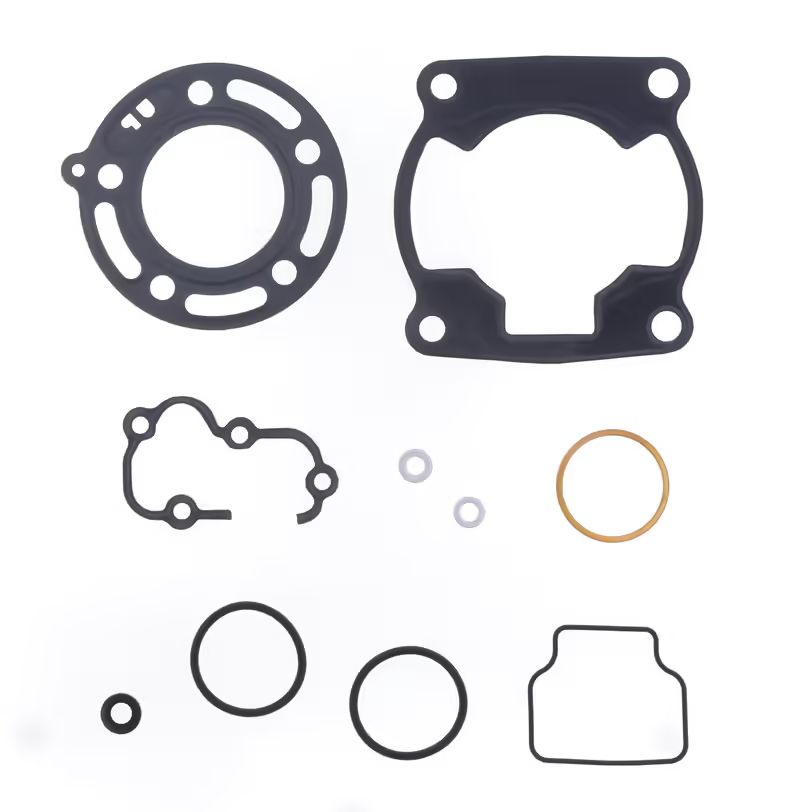

• Athena Top End Gasket Set – P400250600089

  • Application: Kawasaki KX80 / KX85
  • Top end engine gasket set

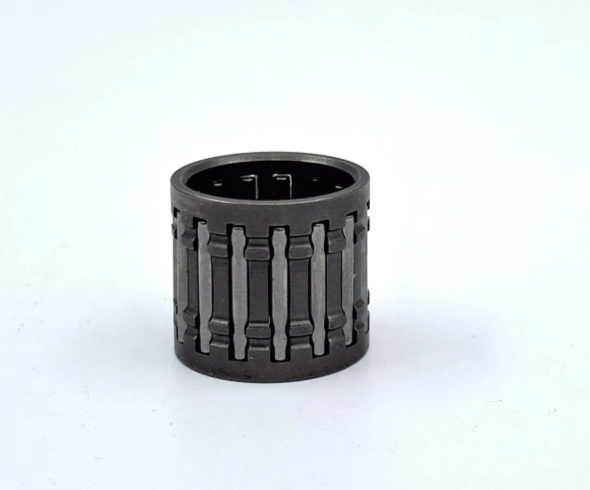

• Meteor Small End Needle Roller Bearing

  • Internal diameter: 14 mm
  • External diameter: 18 mm
  • Width: 16.8 mm

Vehicle Compatibility

Compatibility is based on the OEM cylinder reference 11005-0052. The cylinder has been modified from its original bore configuration, and the supplied piston was checked against the finished bore.

Package Includes: 1 reconditioned Kawasaki OEM cylinder, 1 Meteor P1862 piston kit, 1 Athena P400250600089 top end gasket set and 1 Meteor 14 × 18 × 16.8 mm small end needle bearing.
