1987 - 1993 Suzuki LT 230E,
1986 - 1993 Suzuki LT 230F,
1985 - 1993 Suzuki LT 230S,

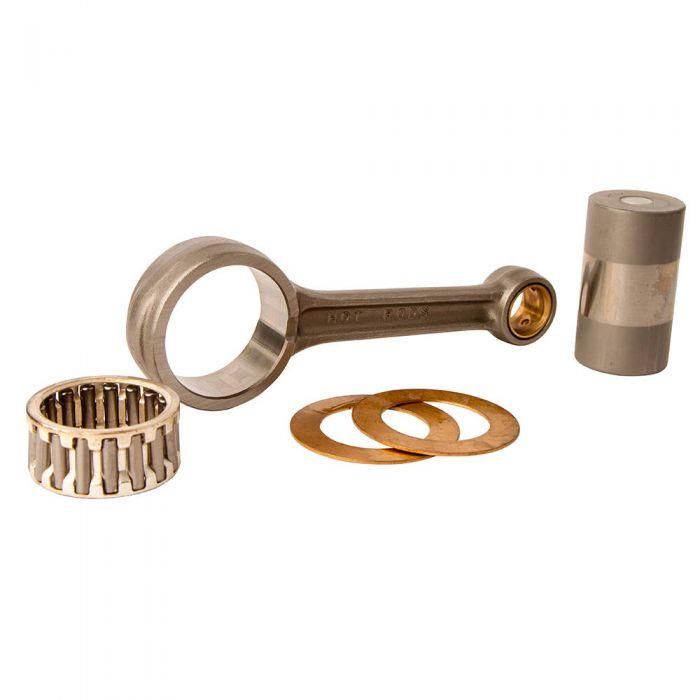

Connecting rod rebuild kit Hotrods 8154 Part No. 56-193.HR
Cross reference numbers.
SUZUKI: 12161-22A01 SUZUKI: 12161-22A02, SUZUKI: 12161-22A10 Technical Specifications: Big End Bearing (mm):30x38x17.7 Big End Bore (mm):38.00 Big End Width (mm):17.98 Center To Center (mm):111.50 Pin Diameter (mm):30.00 Pin Length (mm):52.60 Small End Bearing (mm):Bushing Small End Bore (mm):16.00 Small End Width (mm):14.00 Washer Thickness (mm):1
