KTM
125 EXC 2007 - 2016,
125 SX 2007 - 2015,
144 SX 2007 - 2008,
150 SX 2009 - 2015,
150 XC 2010 - 2013,
HUSABERG
TE 125 2012-2014,
HUSQVARNA
TE 125 2014 - 2015,
TC 125 2014 - 2015,
GAS-GAS CONNECTING CONROD ROD REBUILD KIT PSYCHIC MX-09059 - Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

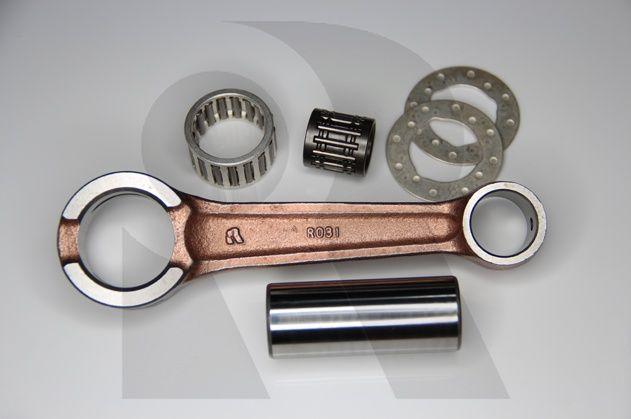

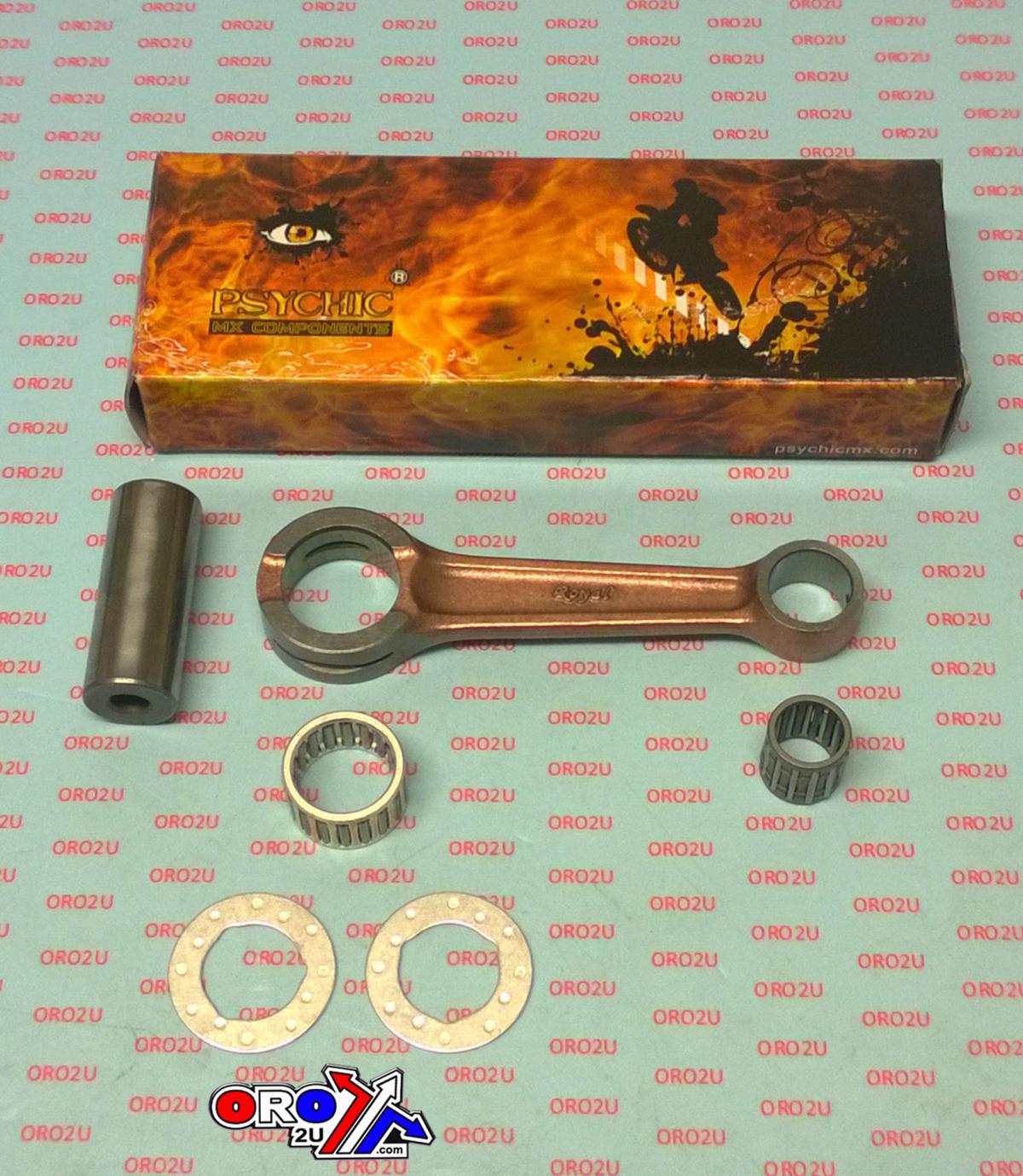

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.

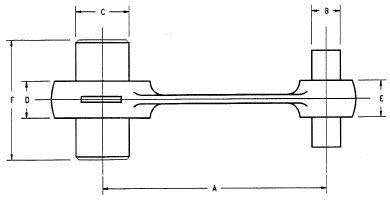

- Material SNCM220, SIZE MM Centre 2 Centre 110 Small End Bearing 15x19x19.80 Small End Bore Ø 19 Small End Width 15.90 Big End Bearing 22x28x15.8 Big End Bore Ø 28 Big End Width 15.90 Big End Pin Ø 22 Big End Pin Length 54.85 Washer Thickness 1.00 CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 110, B = 15, C = 22, D = 15.9, E = 15.9, F = 54.8 Part No. 56-867.RO ( ) Cross reference numbers ONLY.
50330015100, ATHENA P40321047, HOTRODS 8670, PROX 03.6220, WOSSNER P2012, PSYIHC MX-09059
