HUSQVARNA
CR360 1992-1993,
WR360 1992-2002, CONNECTING ROD REBUILD CONROD KIT. PSYCHIC MX-09092 - Heavy-duty OE replacement connecting rods.

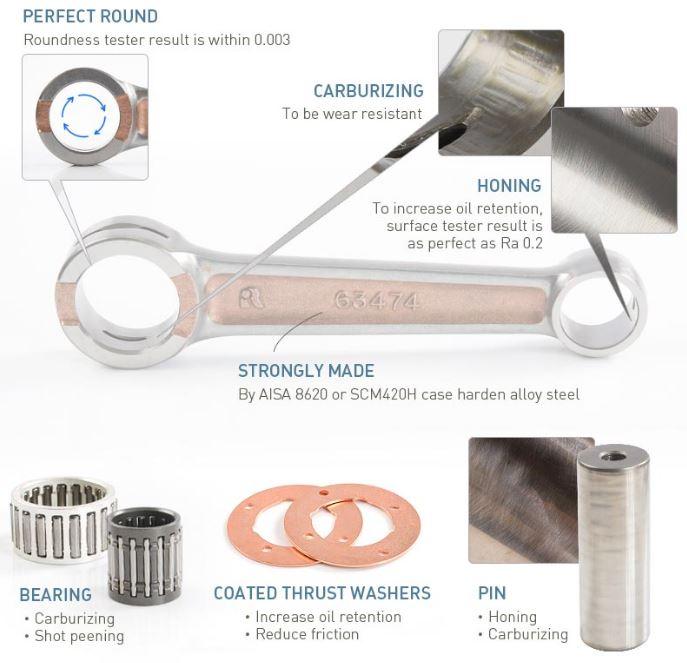

- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.

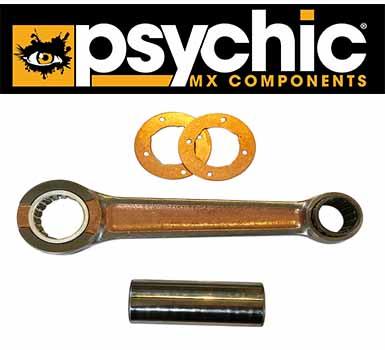

- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SCM420 / SNCM220, SIZE
MM Centre 2 Centre 135 Small End Bearing 18x22x23.50
Small End Bore Ø 22
Small End Width 17
Big End Bearing 24x30x16.70 Big End Bore Ø 30
Big End Width 17
Big End Pin Ø 24
Big End Pin Length 64.00
Washer Thickness 24x41x1
Part No. 56-0369.PS ( ) Cross reference numbers.
RO-8211, 8000073505, 1984 YT60L CRANKSHAFT-PISTON
1985 TRI-ZINGER - YT60N
1986 4-ZINGER - YF60S
1979 QT50F
