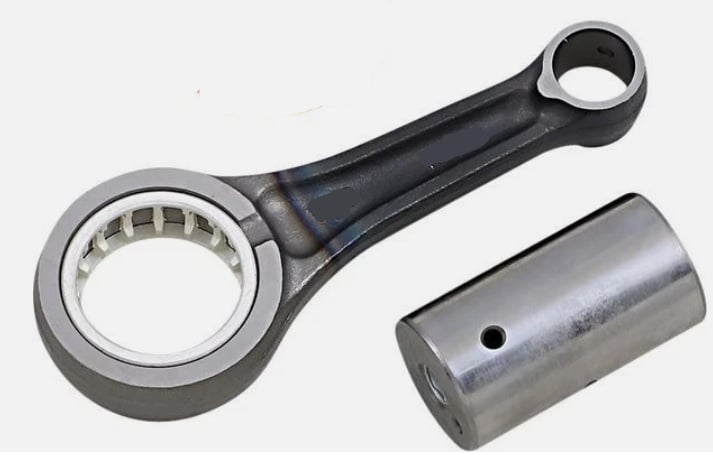

This connecting rod rebuild kit is designed to replace worn crankshaft connecting rod components in selected Honda XR250 Tornado and CBF250 motorcycles. It retains the original mounting arrangement and is manufactured to OEM specifications for direct installation, reliable operation and use with standard or increased engine power loads.

Features

• Direct OEM-style replacement
• Uses the original mounting locations
• Manufactured to match original equipment fit and appearance
• High-strength construction for reliable engine operation
• Suitable for standard and increased power loads
• Cost-effective replacement for worn connecting rod components
• Compare the product image and dimensions before ordering
• Professional installation is recommended if unsure

Specifications

• 102.50 mm rod centre-to-centre length,
• 17.80 mm small-end and big-end eye widths, and
• 32mm x 54.00mm crank pin

Cross-Reference OEM Part Numbers

• ProX 03.1358
• Honda 13000-KPF-900

Vehicle Fitments

• Honda XR250 Tornado, 2001–2012
• Honda CBF250, 2004–2007

Compatibility Note

• The listed XR250 Tornado and CBF250 applications are published for ProX 03.1358.
