This carburettor rebuild kit supplies the components required to service and restore correct fuelling, including jets, needle, seals and fasteners. Components are manufactured to precise specifications and use fuel-resistant materials for reliable operation.

Features

• Meets or exceeds OEM quality
• Direct OEM replacement
• Utilises stock mounting locations
• Designed to handle increased power loads
• Best value for money
• Please check the image before ordering to avoid mistakes
• High-quality replacement part and carries a satisfaction guarantee
• Easy to install but if unsure please use a professional

Specifications

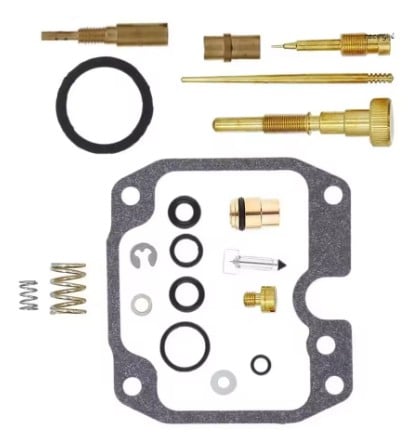

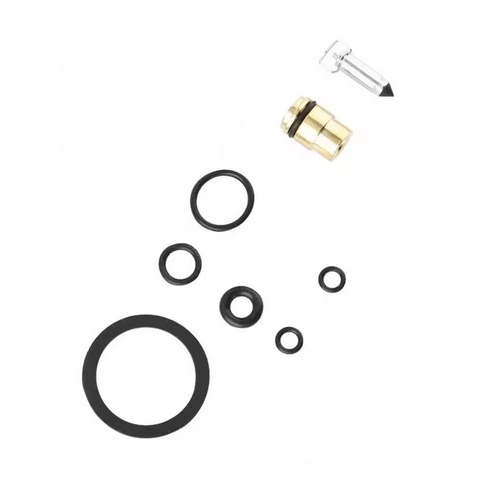

• Kit contents: all O-rings, gaskets, jets, needle, mixture screw, float bowl screws, float valve needle and seat
• OEM jet sizes included

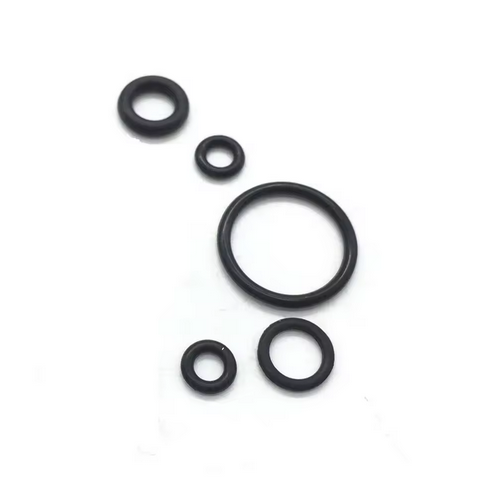

• O-ring and rubber gasket material: NBR (resistant to ethanol in modern fuels)

Cross-Reference OEM Part Numbers

• 5HP-1490J-00 – NEEDLE SET

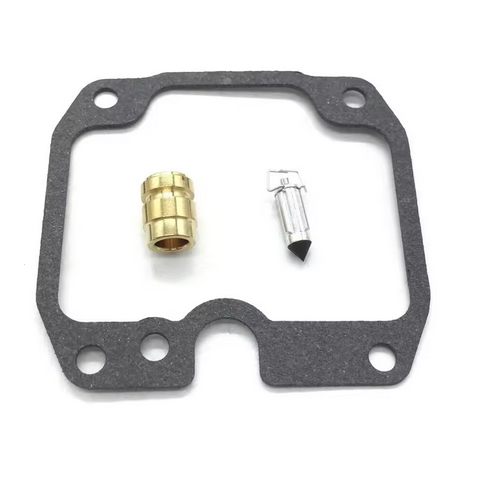

• 24W-14184-00 – Gasket – float
• 4LS-14126-00 – Gasket TOP CAP
• 5HH-14103-00 – THROTTLE
• 3H1-14147-00 – O-Ring
• 4LS-14923-20 – SCREW, PILOT
• 5K7-14134-00 – SPRING, AIR
• 5HP-14107-18 – Needle jet
• 620-1423A-71-A0 – JET, MAIN 102.5
• 21V-1414M-26 – NOZZLE, MAIN
• 5HP-14142-15 – JET, PILOT (#15)
• ALLBALLS 26-1312

Vehicle Fitments

• Carb. Rebuild Kit Closed Course Racing Only
• Yamaha TTR125 Drum Brake 2000–2003
• Yamaha TTR125E Drum Brake 2003–2005
• Yamaha TTR125L Disc Brake 2000–2005
• Yamaha TTR125LE Disc Brake 2003–2005
