This big knuckle kit is designed for the Can-Am Maverick R as a comprehensive suspension and steering upgrade focused on improving geometry, strength and control. Featuring an unequal-length control arm arrangement and a tall knuckle design, it is engineered to reduce bump steer, decrease scrub radius and narrow track width compared with factory specifications. The kit includes upper and lower control arms, billet knuckles, billet tie rods, uniball joints, bushings, stainless inserts, a steering flag for the rack and associated hardware.

Features

• Big knuckle kit for the Can-Am Maverick R

• Comprehensive suspension and steering upgrade

• Unequal-length control arm arrangement

• Tall knuckle design without tyre size restriction

• Improves suspension geometry

• Reduces bump steer for improved handling stability

• Decreases scrub radius for improved cornering response

• Reduces track width compared with factory specification

• Vertically oriented uniball joints for improved strength and durability

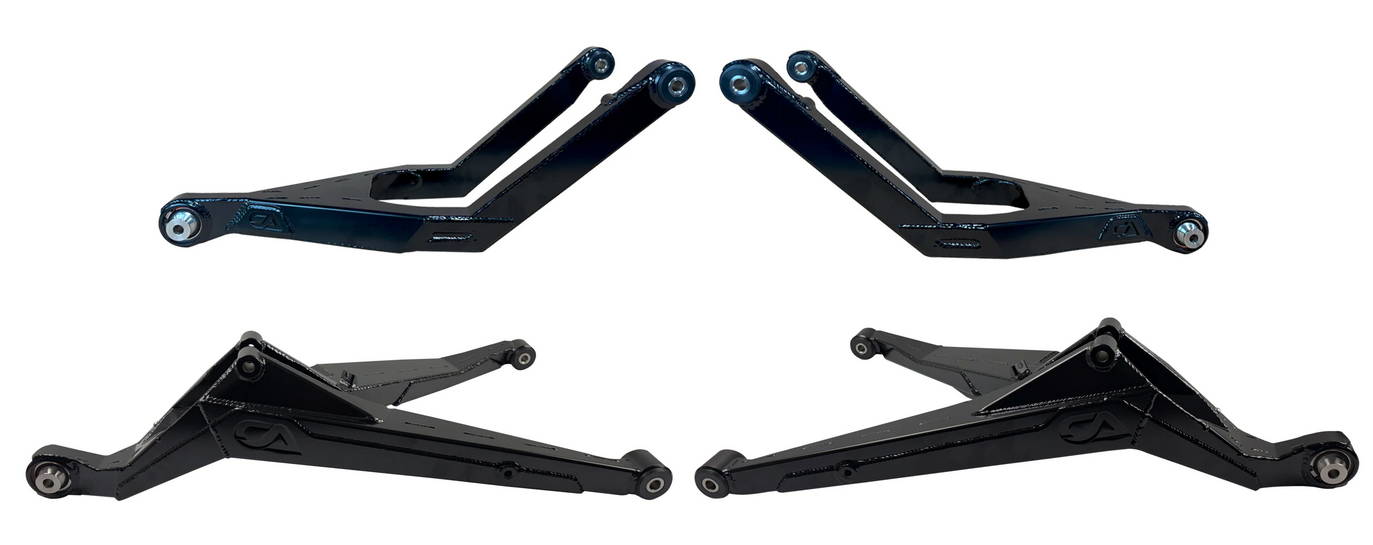

• Includes upper control arms

• Includes lower control arms

• Includes bushings and stainless inserts

• Includes a steering flag for the rack

• Includes associated hardware

Specifications

• FK wide-series uniballs

• 304 stainless steel spacers throughout

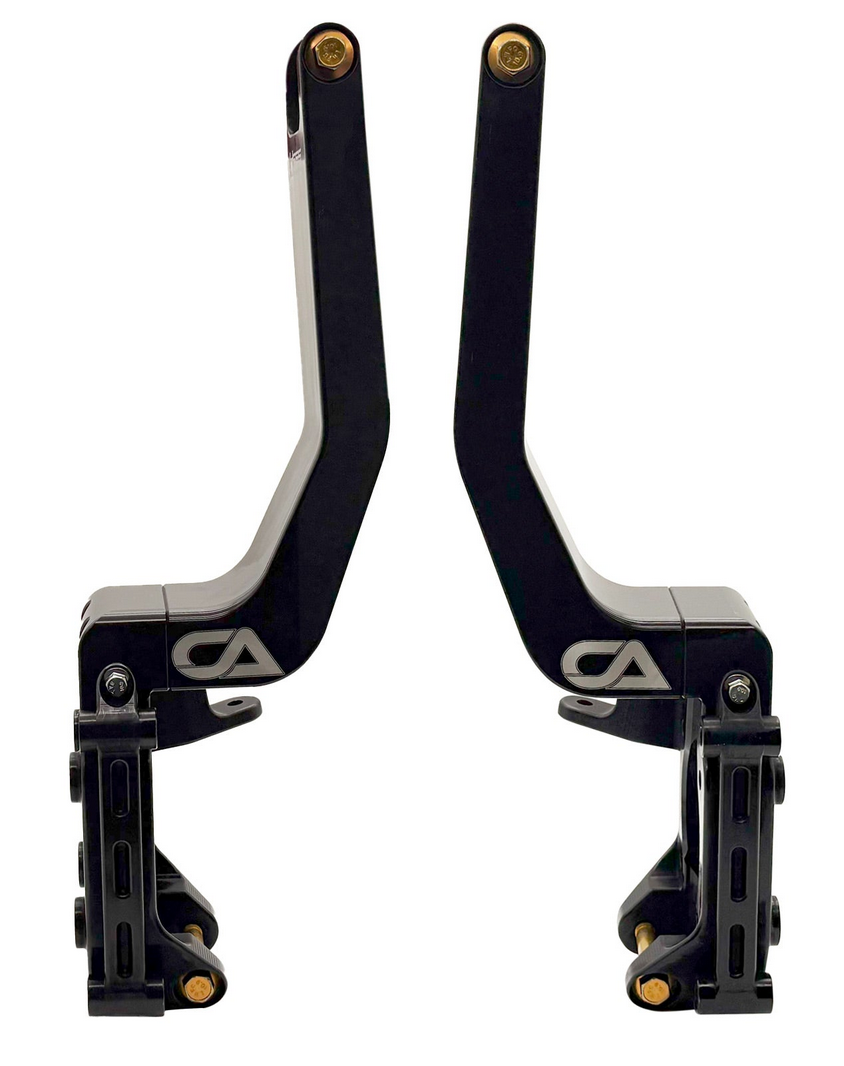

• 7075 billet knuckle

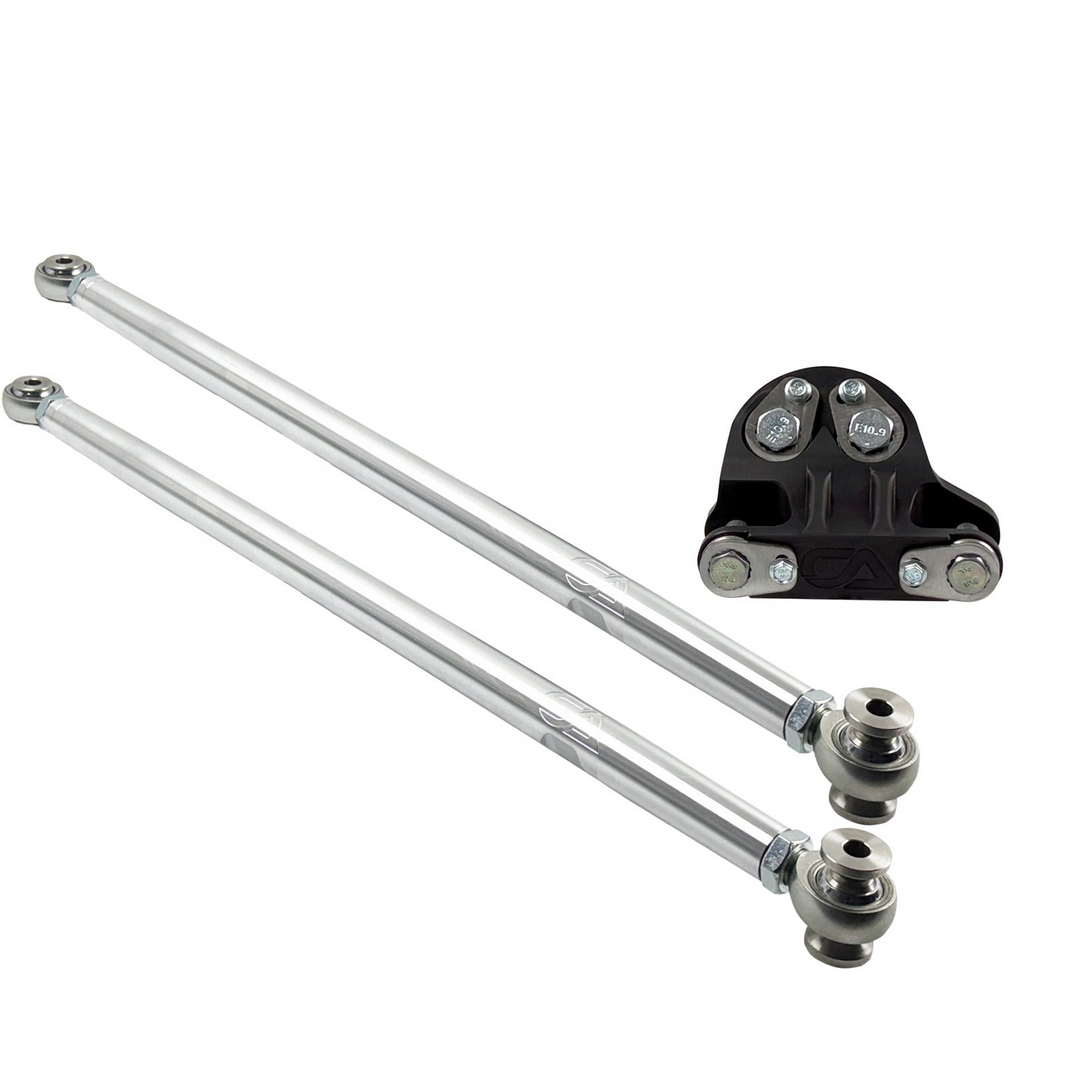

• 7075 billet tie rod

• 3/4-inch heims

• Bump steer reduced from nearly 1 degree to 0.2 degrees total toe change

• Scrub radius reduced by 12% compared with factory specification

• Track width reduced by 16% compared with factory specification

Vehicle Fitments

• Can-Am Maverick R 2024
