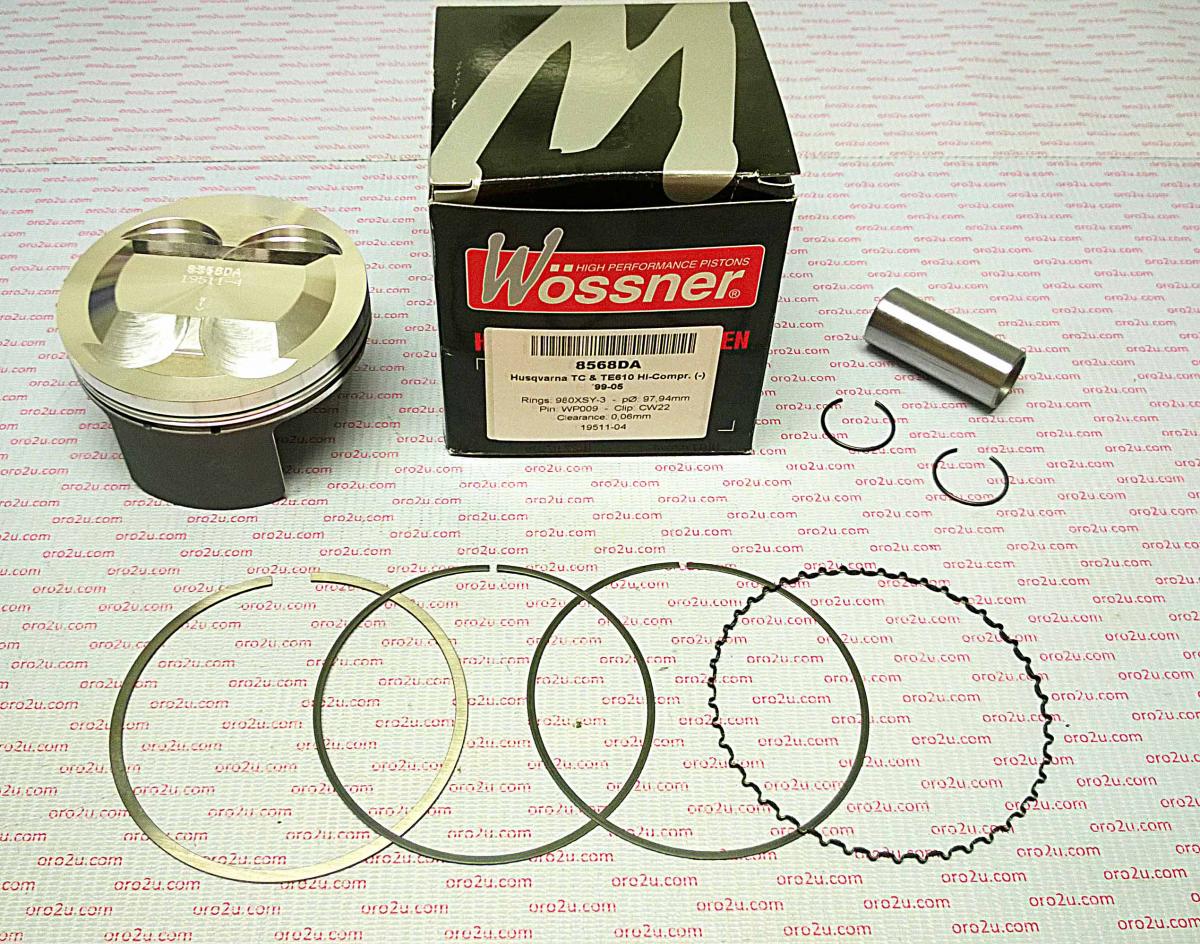

Piston kit 100mm Bore 99.94 WOSSNER 8568D200 (+2.00) Husqvarna
TC 610 1999 - 2004,
TE 610 1999 -2004,
(High compression)   Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany. 56-W019_2.00.WO
Lock P/N CW22
Pin P/N WP009
Ring Set P/N 100XSY Display (cm3) 577
Hub stroke (mm) 76.40
Clearance (mm) 0.06
Wossner compression Ratio: 11.00:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) +8.20
Compression height (mm) 25.00
