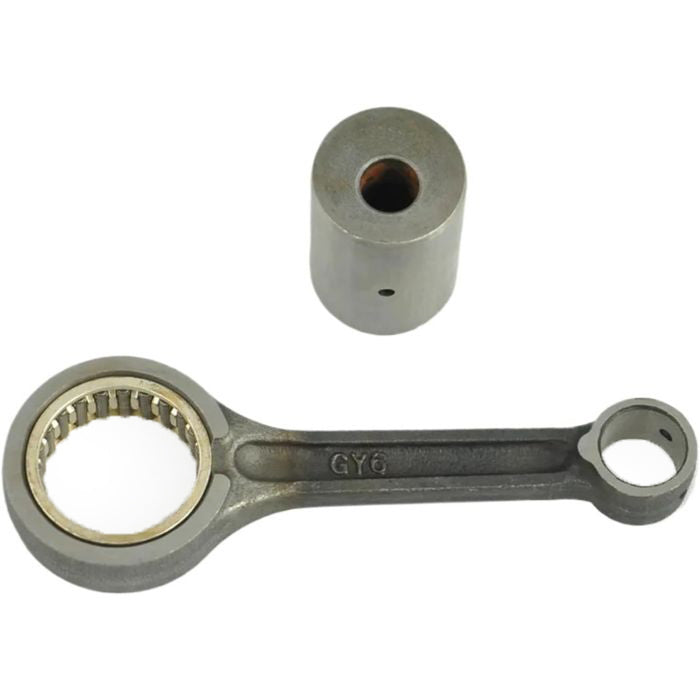

This connecting rod kit is designed for Kymco GY6-based engines, covering GY125 and 125/150 variants. It is engineered to OEM standards for dimensional accuracy and reliable operation, supplied with matching pin and big-end bearing to the sizes listed.

Features

• Constructed from high-grade materials for reliability and consistent performance
• Manufactured to exacting standards to support confident engine rebuilds
• Meets or exceeds OEM quality specifications
• Direct OEM replacement
• Check the reference image before ordering to avoid errors
• Cost-effective replacement option
• Straightforward installation; if unsure, use a professional

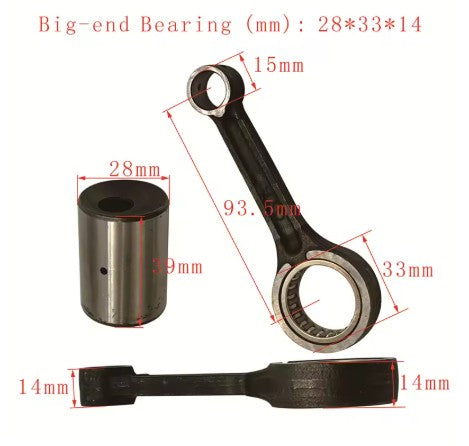

Specifications

• Big-end width: 14 mm
• Small-end width: 14 mm
• Big-end bore: 33 mm
• Small-end bore: 15 mm
• Centre-to-centre length: 93.5 mm
• Overall rod length: 124 mm
• Pin diameter: 28 mm
• Pin length: 39 mm
• Big-end bearing size: 28 × 33 × 14 mm

Cross-Reference OEM Part Numbers

• 13201-GY6-9000-1
