Make
Model
CC
Year
















HONDA
CRF R
450
2009 - 2015

HONDA
CRF R
450
2009 - 2016

DESCRIPTION

HONDA

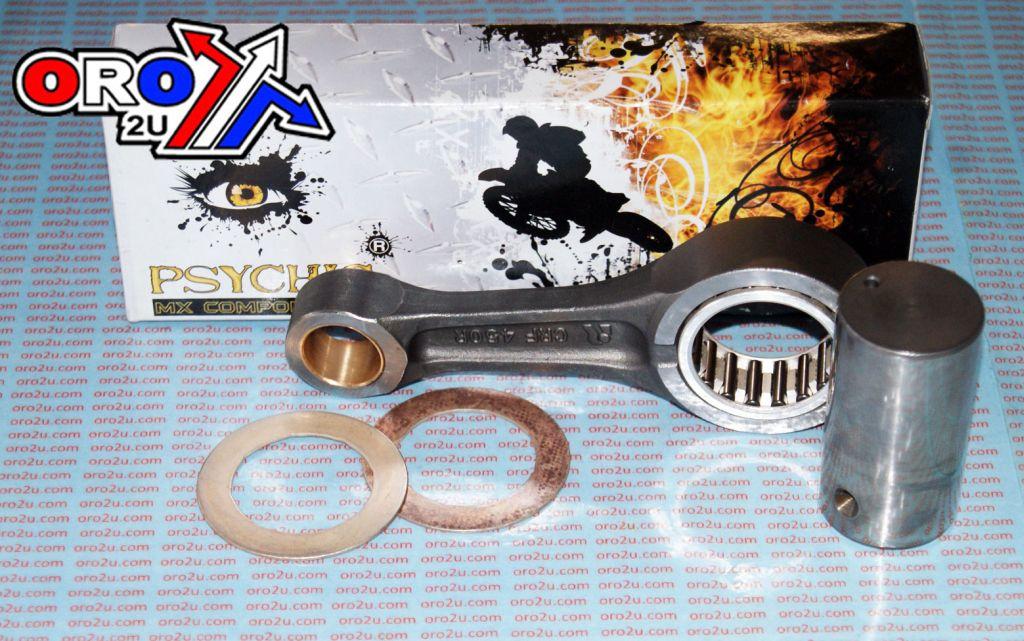

CRF450R 2009-2016, CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09088 - Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220, SIZE MM Centre 2 Centre 102 Small End Bearing None Small End Bore Ø 18/15.2 Small End Width 19 Big End Bearing 33x41x19.8 Big End Bore Ø 41 Big End Width 19.8 Big End Pin Ø 34 Big End Pin Length 60.85 Washer Thickness 0.95 Part No. 56-278.DR Cross reference numbers ONLY.
ATHENA P40321014 , 13000-MEN-A50 / 13000-MEN-A70, PSYCHIC MX-09088, HOTRODS 8682, PROX 03.1409, WOSSNER P4027, PROX 03.1409,

HONDA
CRF450R 2009-2016, CONNECTING CONROD ROD REBUILD KIT. PSYCHIC MX-09088 - Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220, SIZE MM Centre 2 Centre 102 Small End Bearing None Small End Bore Ø 18/15.2 Small End Width 19 Big End Bearing 33x41x19.8 Big End Bore Ø 41 Big End Width 19.8 Big End Pin Ø 34 Big End Pin Length 60.85 Washer Thickness 0.95 Part No. 56-278.DR Cross reference numbers ONLY.
ATHENA P40321014 , 13000-MEN-A50 / 13000-MEN-A70, PSYCHIC MX-09088, HOTRODS 8682, PROX 03.1409, WOSSNER P4027, PROX 03.1409,
