DESCRIPTION

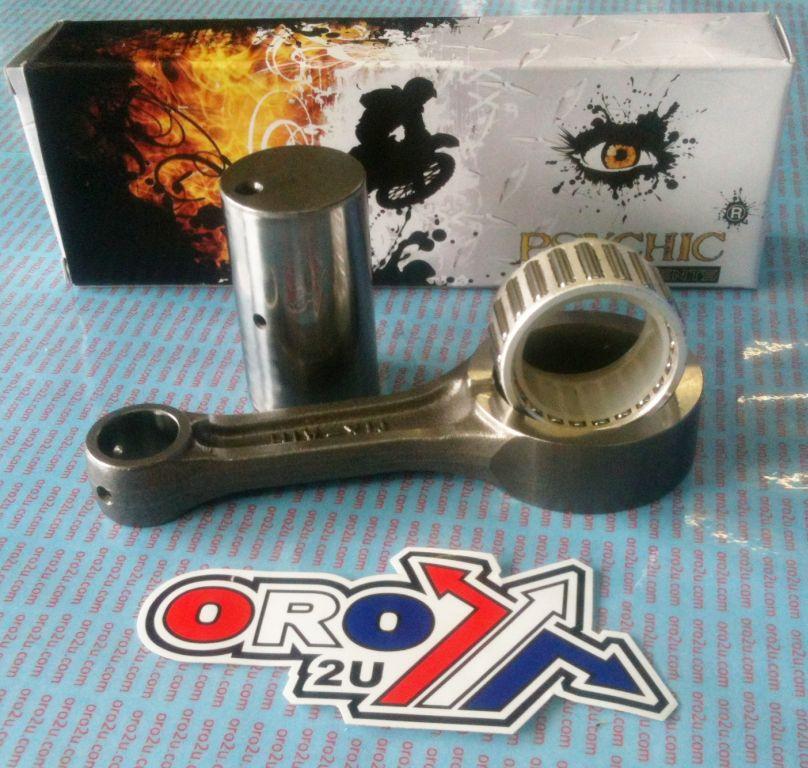

CONNECING ROD REBUILD KIT, CONROD KIT PSYCHIC MX-09087 YAMAHA
YZF450, YZ450F 2006-2009,
WRF450 / WR450F 2007-2011, - Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220, Part No. 56-126.DR Cross reference numbers.
2S2116510000, 2S2-11651-00-00, PSYCHIC MX-09087, HOTRODS 8643, PROX 03.2426, WISECO WPR205, WOSSNER P4008, ATHENA P40321023, 2S2-11651-00-00, HOTRODS 8643, PROX 03-2426,

Big End Bearing (mm): 34X42X20
Big End Bore (mm): 42.00
Big End Width (mm):.20.00
Center To Center (mm):103.50
Pin Diameter (mm): 34.00
Pin Length (mm): 60.80
Small End Bearing (mm): None
Small End Bore (mm):18.00
Small End Width (mm):   18.00
Washer Thickness (mm): None.
