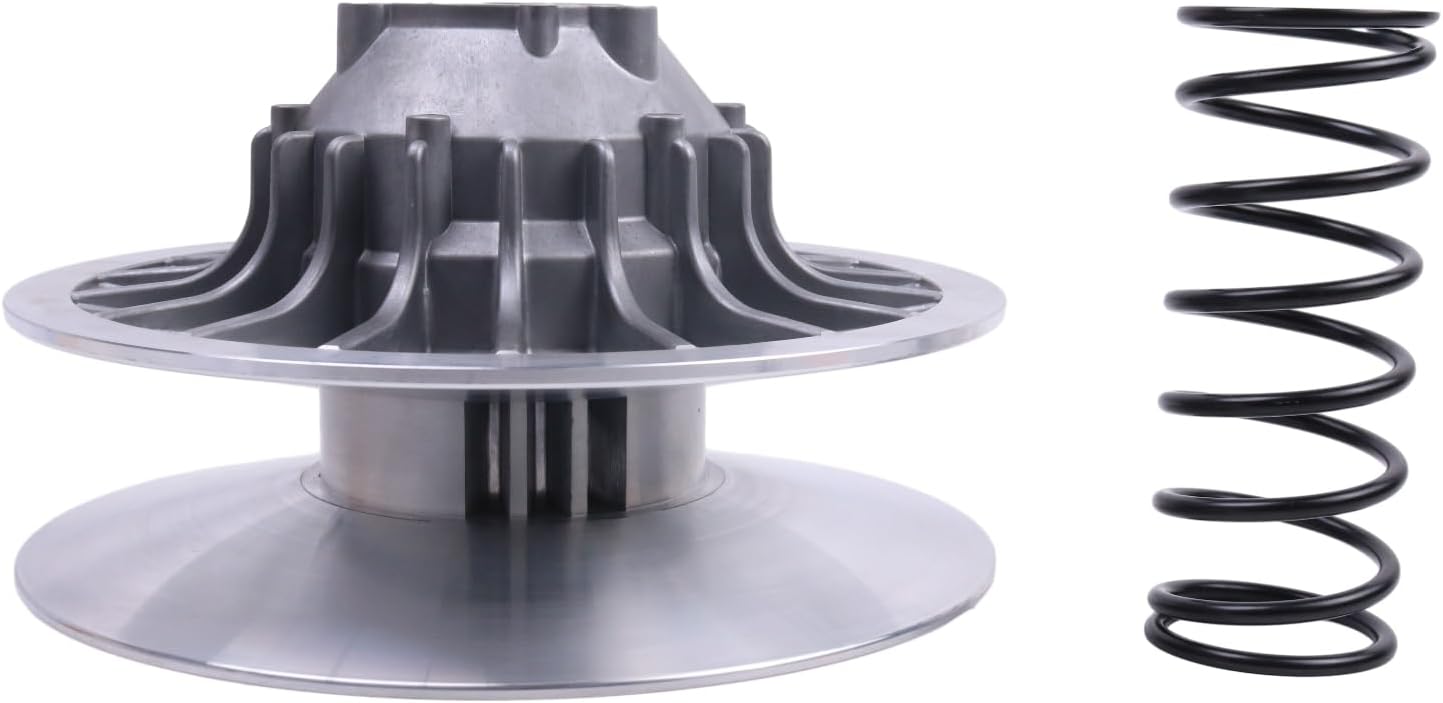

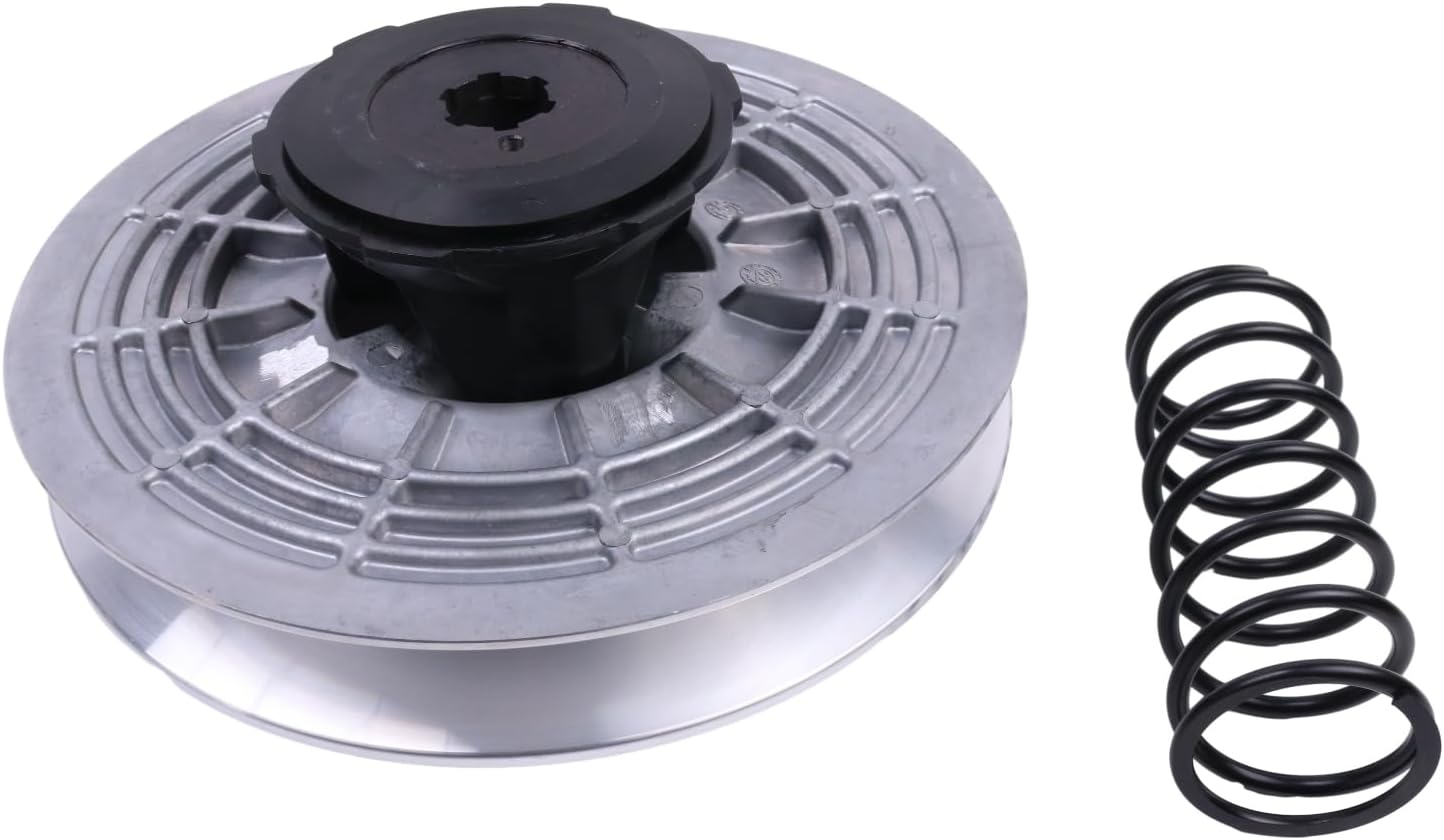

This complete secondary driven clutch assembly (CVT driven pulley) is designed for BRP/Can-Am ATV/UTV applications. It replaces the separate outer and inner sheaves with a ready-to-install unit and is supplied with the required spring and internal components for correct operation in the specified models.

Features

• Complete OEM-style secondary driven clutch assembly for CVT transmissions
• Supplied assembled for direct fitment
• Includes pre-installed bearing, helix/cam and compression spring
• Restores correct back-shift and belt squeeze characteristics on compatible models
• Suitable for CVT systems used across specified Can-Am ATV/UTV models

Specifications

• Part type: Secondary driven clutch (complete assembly)
• Position: CVT transmission, secondary (driven) clutch

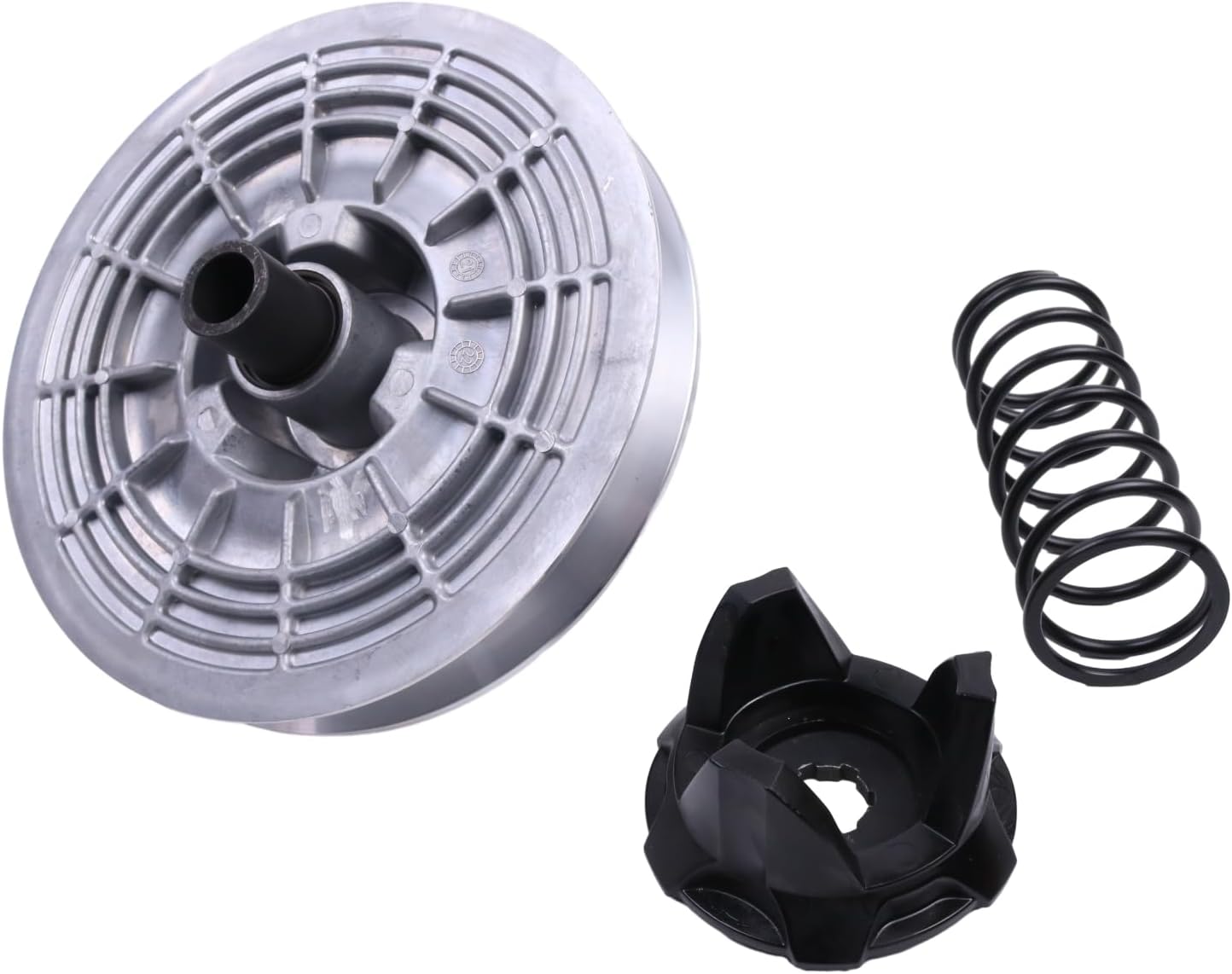

• Assembly contents: inner half, outer half, helix/cam, compression spring, bearing and required retainers/washers

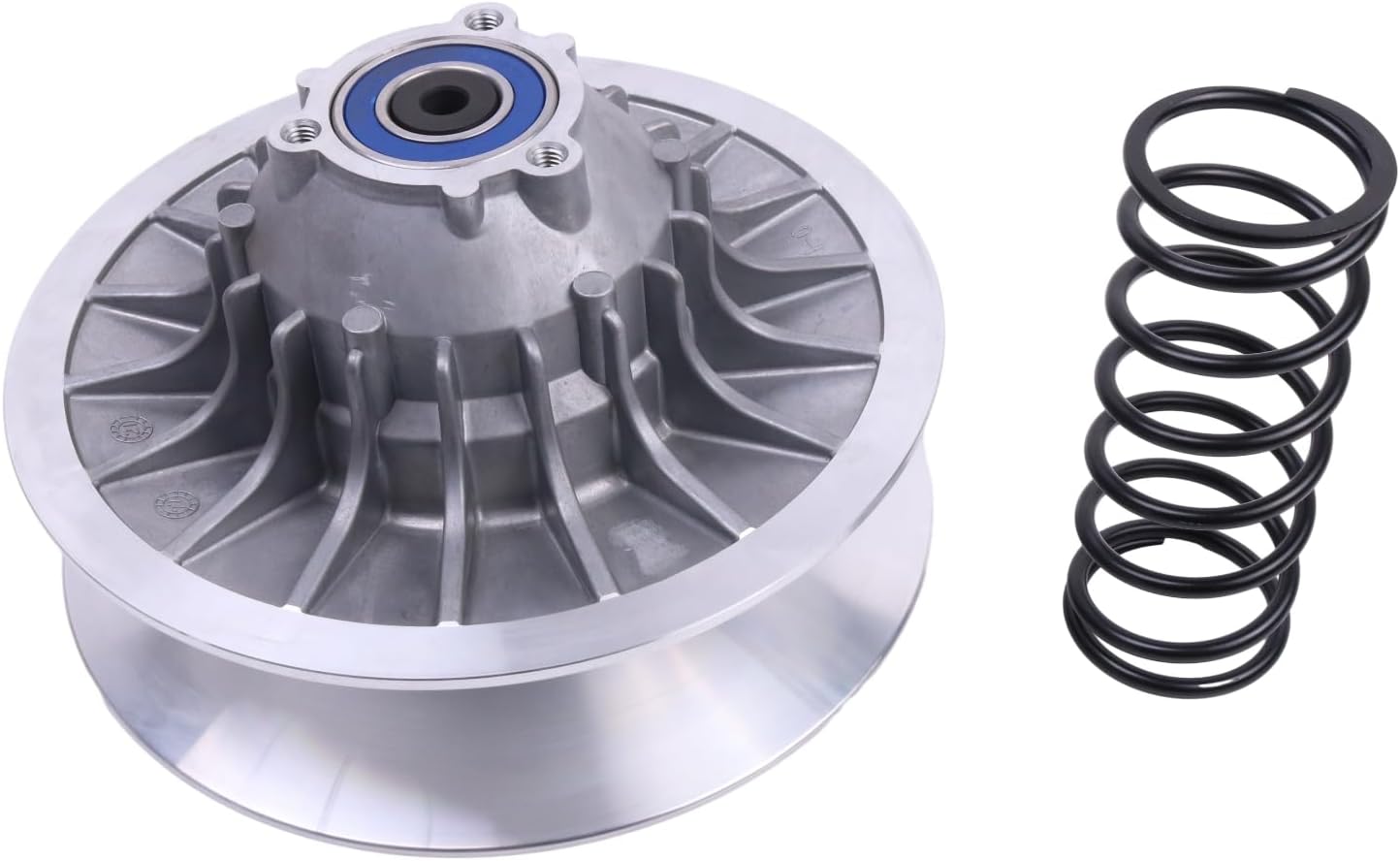

• Bearing spec: 6205 series (as used in OEM assemblies)

Cross-Reference OEM Part Numbers

• 420280173
• 420280176
• 420280178
• 420280236
• 420280499
• 420280188
• 420932426
• Spring 420238340
• Spring 420238173

Vehicle Fitments

• Bombardier/Can-Am Outlander 330 (2003–2005)
• Bombardier/Can-Am Outlander 400 (2003–2014; including STD, XT, MAX and EFI variants)
• Can-Am Outlander MAX 400 (2007)
• Can-Am Outlander 500 STD/XT (2007–2008)
• Can-Am Outlander 650 STD/XT (2007–2008)
• Can-Am Outlander 800 EFI STD/XT/LTD (2007–2008)
• Can-Am Outlander 450 (2015–2022)
• Can-Am Renegade 800 EFI (2007)
• Can-Am Commander 1000 (2011–2014; including STD, DPS, XT, XT-P and LTD variants)
• Can-Am Maverick 1000R (2013–2018)
