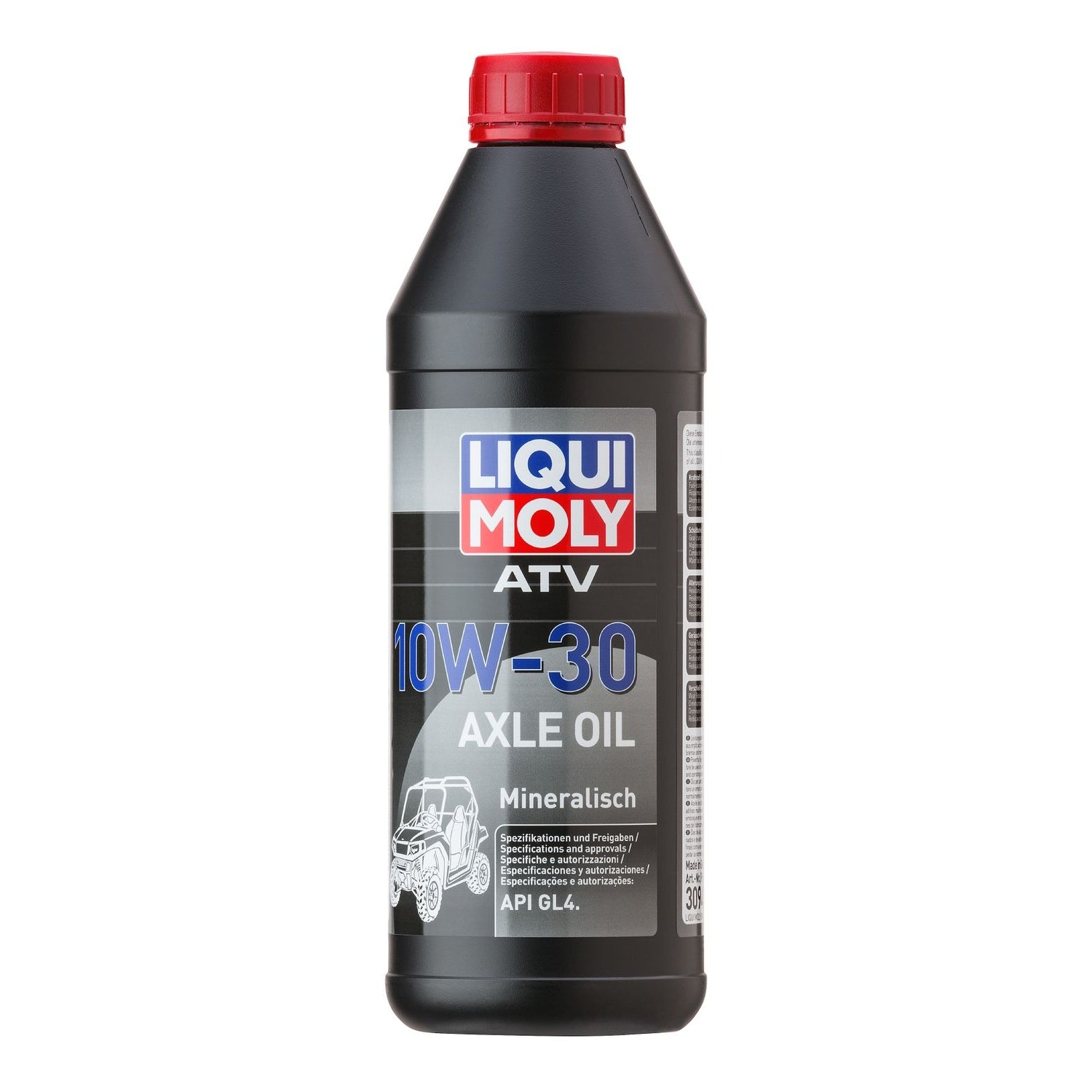

Liqui Moly ATV Axle Oil 10W-30 is a high-performance, mineral-based gear oil formulated for all-terrain vehicles (ATVs) and similar applications. Designed to meet the demands of transmissions and final drives operating under normal to high loads, it is particularly effective in assemblies featuring wet clutches and/or wet brakes.

Product Features:

• API GL-4 specification
• Mineral oil formulation
• SAE viscosity grade: 10W-30 (engine oil), 80W (gear oil)
• High pressure-absorption capability
• Excellent viscosity-temperature behaviour
• Reduces operational noise
• Minimizes wear and extends component life
• Compatible with seals and gaskets
• Outstanding resistance to ageing
• Suitable for use in systems with or without wet clutches and/or wet brakes

Technical Specifications:

• Density at 15°C: 0.870g/cm³
• Viscosity at 40°C: 59mm²/s
• Viscosity at 100°C: 9.7mm²/s
• Viscosity index: 149
• Pour point: –39°C
• Flash point: 228°C
• Foaming behaviour (24°C / 93.5°C / after 93.5°C): 0/0 ml / 40/0 ml / 0/0 ml

Application Information:

This gear oil is suitable for use in transmissions and final drives of ATVs and similar vehicles, both with and without wet clutches and/or wet brakes, operating under normal to high load conditions. It can be mixed with all branded gear oils; however, it is fully effective only when used unmixed. Always follow the manufacturer's instructions for application.
