The Rear Brake Drum Seal and Bearing O-Ring Kit is a direct OEM replacement set designed for Honda Foreman 500 and Rancher 420 models. This kit includes all necessary seals, bearing, O-rings, and hardware required for proper rear brake drum servicing. Manufactured to high standards using durable materials, it ensures reliable sealing and long-term performance. Image verification is advised before purchase.

Features

• Constructed from high-tech materials for consistent performance
• Built to exacting standards for reliable rear brake system operation
• specifications
• Direct OEM replacement
• Image verification recommended before ordering
• Designed as a complete, cost-effective solution
• Easy to install; professional assistance recommended if uncertain

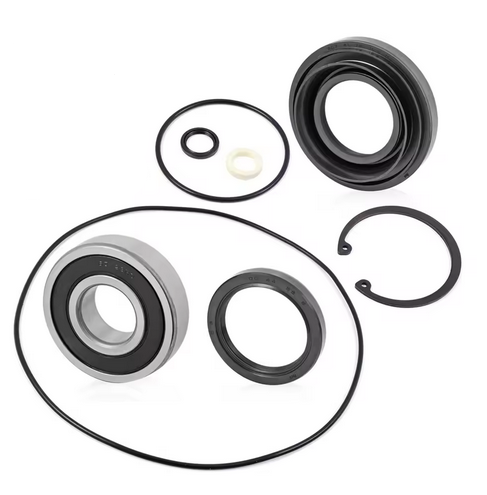

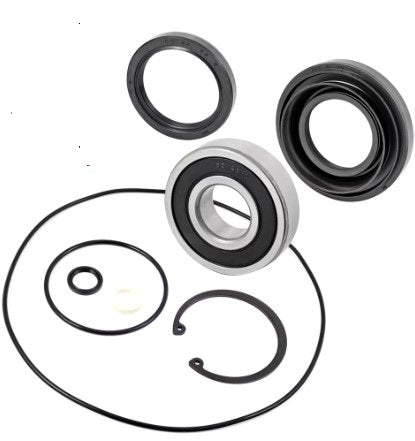

Package Includes

• 1x 41X76X10.5/19 Dust Seal
• 1x 17X23X3 Seal
• 1x 44X58X8 Seal
• 2x O-Rings
• 1x 28X68X18 Bearing
• 1x 68mm Circlip
• 1x Brake Cam Dust Seal

Cross-Reference OEM Part Numbers

• 91251-HF7-003
• 91253-HM7-003
• 91355-HN2-003

Vehicle Fitments
Honda Foreman 500

• TRX520FE2 4x4 ES EPS (2014–2021)
• TRX520FM1 4x4 (2014–2021)
• TRX520FM2 4x4 EPS (2015, 2020–2021)
• TRX500FE1 4x4 ES (2014–2016)
• TRX500FM2 4x4 EPS (2014, 2016)
• TRX500FE2 4x4 ES EPS Camo (2017)
• TRX500F 4x4 ES (2015)

Honda Rancher 420

• TRX420FA2 4x4 Auto DCT EPS (2014–2021)
• TRX420FA5 4x4 Auto DCT IRS (2015–2021)
• TRX420FA6 4x4 Auto DCT IRS EPS (2015–2021)
• TRX420FE1 4x4 ES / TRX420FM1 4x4 (2014–2021)
• TRX420TM1 (2016–2021)
• TRX420TE1 ES (2016, 2021)
• TRX420FM2 4x4 EPS (2014–2016, 2020–2021)
• TRX420TE1 4x4 ES (2014, 2020)
• TRX420FA2 4x4 Auto DCT EPS Camo (2017, 2019)
• TRX420FA6 4x4 Auto DCT IRS EPS Camo (2017, 2019)
• TRX420FE1 4x4 ES Camo (2017, 2019)
• TRX420FA1 4x4 Auto DCT (2014–2016)
• TRX420FM1 4x4 (2014–2015)
• TRX420FA6 4x4 Auto DCT IRS EPS (2018)
• TRX420FM1 4x4 Camo (2017)
• TRX420FE 4x4 ES / TRX420TM 2x4 / TRX420TE 2x4 ES (2015)
• TRX420FA 4x4 AT / TRX420FPA 4x4 AT EPS (2014)
