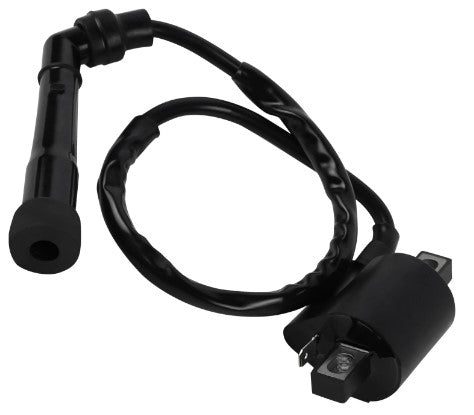

The Ignition Coil with Long Cap is designed as a direct replacement for various Yamaha models ranging from 50cc to 660cc, including the Big Bear, Raptor, and Grizzly series.

Features:

• Voltage: 12 volts
• Spark plug cap resistance: Approximately 4.91KΩ
• Primary coil resistance: Approximately 0.4-0.5Ω
• Secondary coil resistance: Approximately 7.51KΩ
• Mounting points (centre to centre): 57mm (2 1/4 inches)

Overall dimensions:

• Length: 38mm (1 1/2 inches)
• Width: 33mm (1 3/8 inches)
• Height: 43mm (1 3/4 inches)

Cross-Reference OEM Part Numbers:

• 3KJ-82310-10-00
• 4RP-82310-29-00
• 4ST-H2310-00
• 5LW-H2310-00
• 5LW-H2310-01-00
• 4VW-82370-00-00
• 371-82370-00-00

Vehicle Fitment:

Yamaha ATV Models:

• YFM350 Big Bear 2WD (1999)
• YFM350 Big Bear 4WD (1998-1999)
• YFM350 Raptor (2004-2011)
• YFM400 Grizzly (2007)
• YFM400 Grizzly 4WD (2008)
• YFM400 Kodiak 2WD (2000-2004)
• YFM400 Kodiak 4WD (1999-2006)
• YFM450 Grizzly 4WD (2007-2011)
• YFM450 Kodiak 4WD (2003-2006)
• YFM450 Wolverine 4WD (2006-2010)
• YFM660 Grizzly (2002-2008)
• YFM660 Grizzly 4WD (2003-2004)

Yamaha Motorcycle Models:

• YZ80 (1985-2001)
• YZ125 (1990-2003)
• YZ250 (1989-2004)
• YZ490 (1983-1988)
• TTR230 (2005-2013)
• PW50 (1983-2014)
• PW80 (1983-2006)

Yamaha Scooter Models:

• Zuma II 50 CW50 (1997-2001)
• Razz 50 SH50
