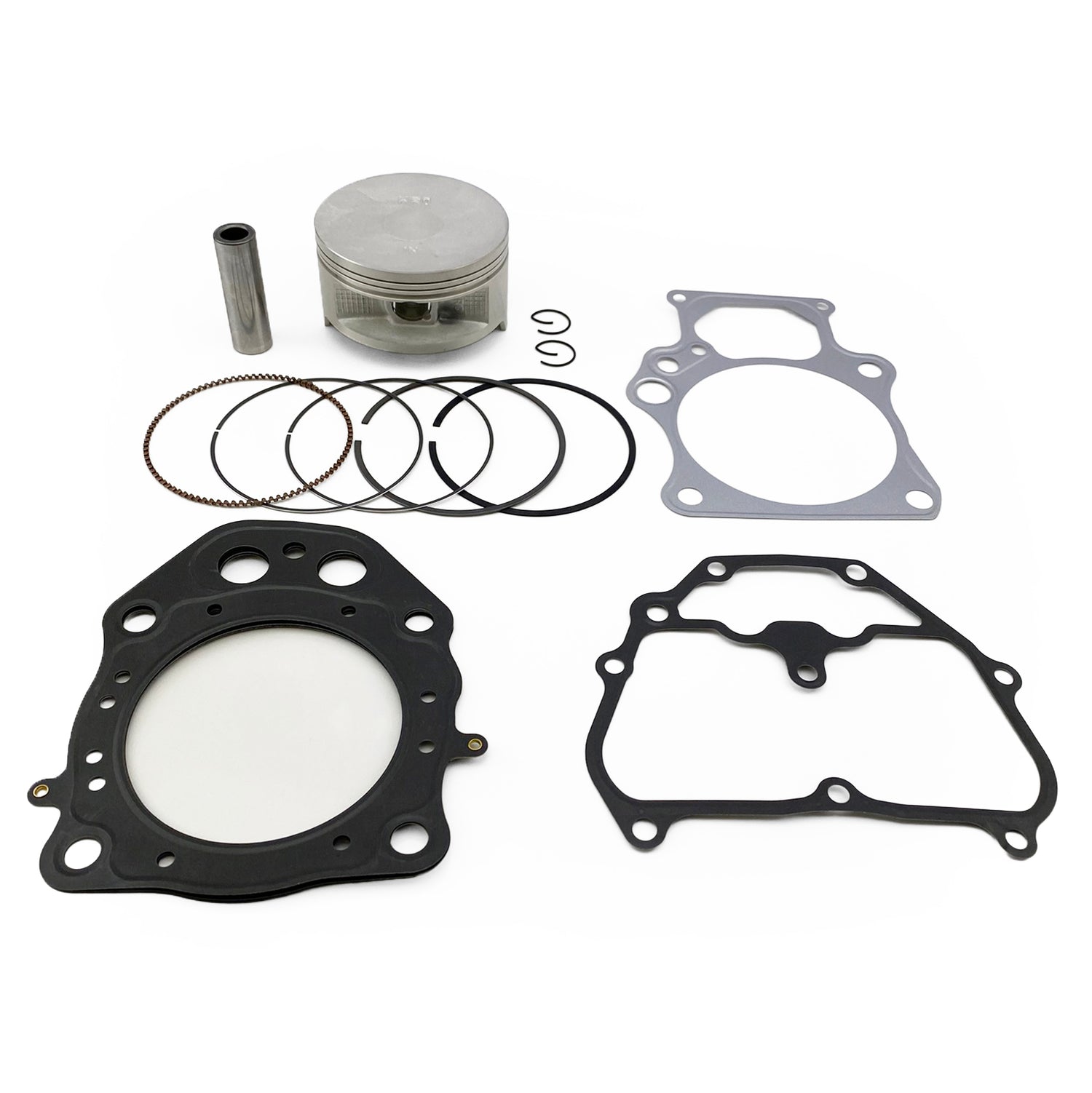

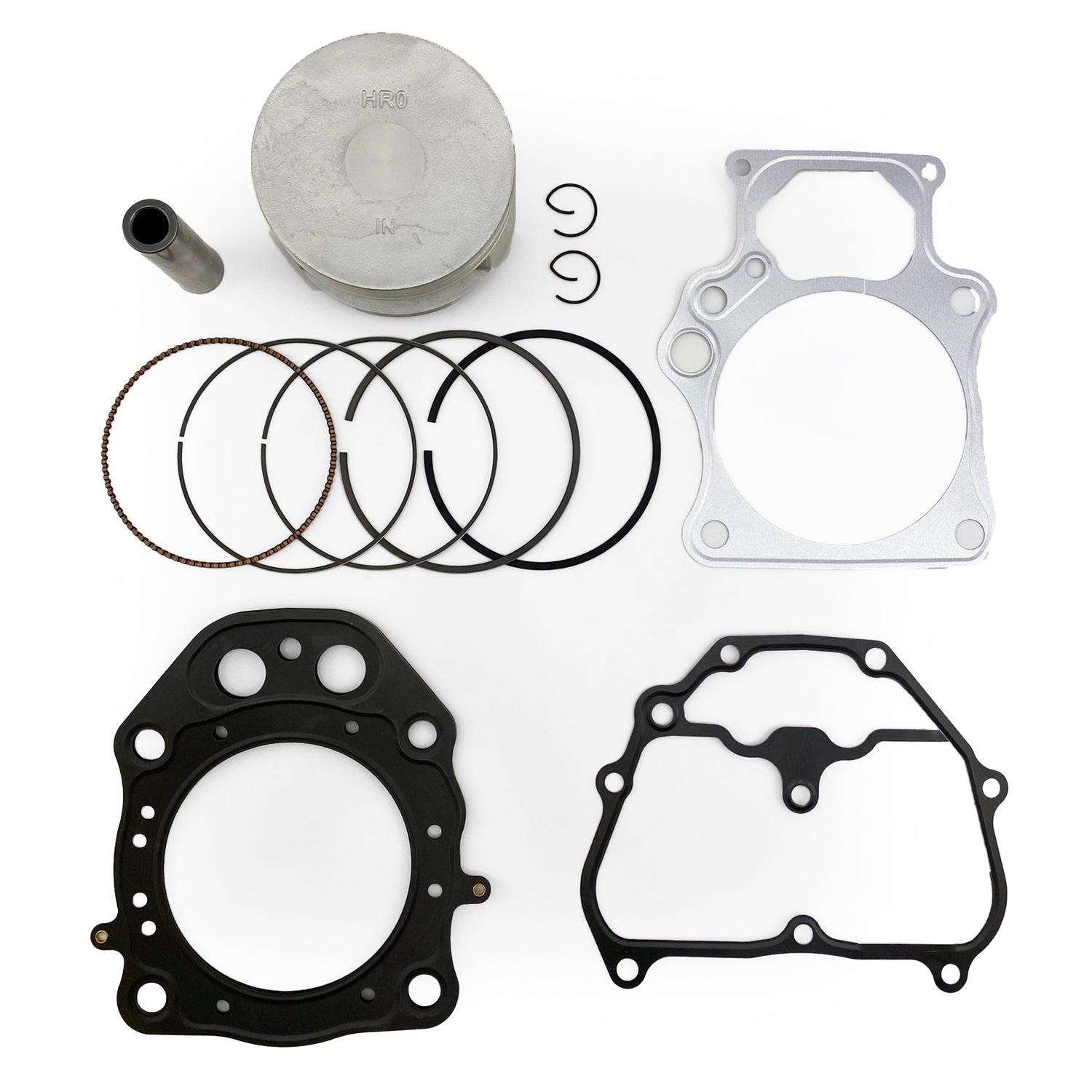

This piston and gasket kit with a 92mm bore is designed as a direct OEM replacement for the Honda TRX500. Engineered from high-quality materials, the kit ensures reliable engine rebuilding and consistent performance. It includes all essential components for a full piston and gasket service, meeting or exceeding OEM standards.

Features

• Manufactured from high-tech materials for long-term reliability
• Built to exacting standards for confident engine rebuilding
• Direct OEM replacement
• Visual confirmation recommended before purchase
• Installation is straightforward; professional assistance recommended if unsure

Cross-Reference OEM Part Numbers

• Piston: 13101-HR0-F00 STD
• Cylinder Base Gasket: 12191-HR0-F01
• Cylinder Head Gasket: 12251-HR0-F01
• Cylinder Head Cover Gasket: 12315-HR0-F01
• Ring Set: 13010-HP0-A01
• Piston Pin: 13111-HP5-600
• Piston Circlips: 13112-MAT-000

Vehicle Fitments

• Honda TRX500 FM/FE/FPE/FPM Fourtrax Foreman 500 4x4 (2012–2019)
• Honda TRX500 FA/FM Foreman Rubicon 500 4x4 (2015–2019)
• Honda SXS500M2 Pioneer 500 (2015–2021, Liquid-cooled UTV)
