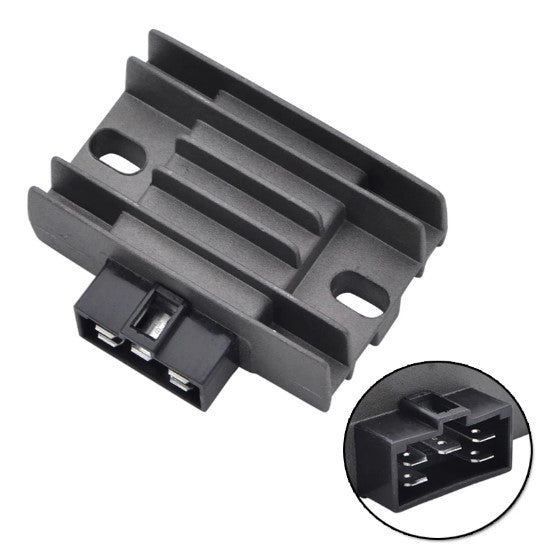

This 12V voltage regulator rectifier is an aftermarket replacement component for the charging and electrical systems of compatible Yamaha, Malaguti and other motorcycle and scooter applications. It rectifies and regulates the electrical supply, uses SCR technology and is designed as a direct OEM-style replacement for the specified applications. The unit is factory tested for reliability and is specified to meet or exceed OEM quality requirements.

Features

• Direct OEM-style replacement
• Rectifies and regulates charging-system electrical output
• Factory tested for reliability
• Meets or exceeds OEM quality requirements

Specifications

• Voltage: 12 V
• Current: 20 A
• Input type: Single-phase
• Technology: Silicon-controlled rectifier (SCR)
• Output type: CC
• Height: 28 mm
• Width: 47 mm
• Length: 76 mm
• Mounting pitch: 60 mm
• Sensor: Yes

Cross-Reference OEM Part Numbers

• Yamaha: 5VL-H1960-00
• Yamaha: 5VL-H1960-00-00
• Yamaha: 2D0-H1960-00
• Yamaha: 2D0-H1960-00-00
• Yamaha: 1S4-H1960-00
• Yamaha: 1S4-H1960-00-00
• Malaguti: 02603800

Vehicle Fitments

• Euromot Lucky HJ-2 110cc scooter — all years
• Gilera QMT 10A Speedy 125cc scooter — all years
• Gilera QMT 10D Super 125cc scooter — all years
• Guerrero GMX 150cc scooter — all years
• Guerrero Queen 125cc scooter — all years
• IMSA Evo 110cc scooter — 2010 onwards
• Jawa Supernova 150cc scooter — all years
• Jianshe JS 6B 125cc scooter — all years
• Jincheng JC 125cc scooter — all years
• Konisa Vitality KE 250cc scooter — all years
• Malaguti X3M Enduro 125cc — 2007-2008
• Malaguti X3M Motard 125cc — 2007-2008
• Mondial LD Pista 110cc scooter — all years
• Yamaha Brillant Riding 125cc
• Yamaha FZ16 / Byson 160cc European model — 2008-2011
• Yamaha XT125R European dirt bike — 2007-2008
• Yamaha XT125X European dirt bike — 2007-2008
• Yamaha XTZ125E / XTZ E 125cc European dirt bike — 2013-2017
• Yamaha YB125 European street bike — 2013-2017
• Yamaha YBR125 family 125cc European models — E/D/GS/EGS 2006-2018; ED 2005-2006; E 2006-2013; EGS 2008-2016; ESD 2008 and 2011
• Yamaha YS Fazer 250cc — up to 2009
• Zanella Due Luxury 110cc — 2010 onwards

Important Information

• Electrical parts are supplied on a no-returns basis.
