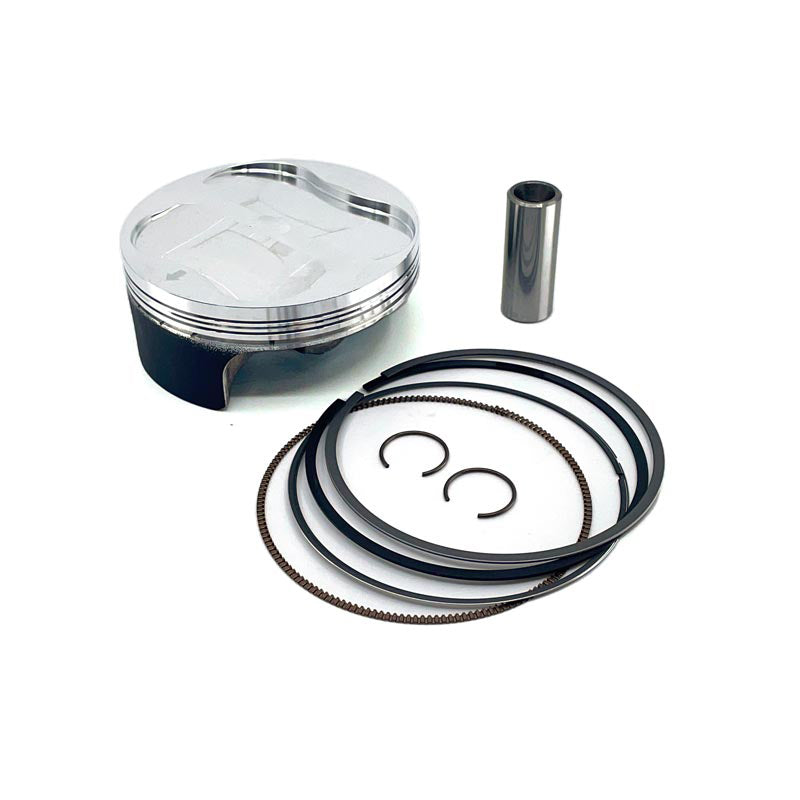

PISTON KIT 97mm BORE 96.97mm WOSSNER 4085DB (STD)

YAMAHA
YZF 450 2023


• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W4085.B.WO
WOSSNER  4085DB PISTON KIT, BORE 97.00mm
B GRADE PISTON 96.97mm
CLEARANCE 0.04mm
STROKE 60.80mm
COMPRESSION HEIGHT 24mm
COMPRESSION RATIO 13:1
THEORETICAL WEIGHT 263.50g
RINGS RIK97.00
PISTON PIN WP072-SP
PISTON CLIPS CW18
