Honda VTX1300 2003-2009,

Honda CB919 CB900 Hornet 900 2002-2007

Honda CB900F Hornet SC48B 2004

Honda CB900F Hornet SC48B 2005- 2006

Honda VTX1300 S3/S4/S5/S6/S7/S8 2003-2009

Aprilia Mana 850 GT850 2007-2013

CB919 CB900 Hornet 900 CB900F Hornet SC48B

Technical specifications

• Tension (voltage) 12 [V]
• Corriente (current) 35 [A]
• Tipo de entrada (input type) TRIFASICO
• Tecnologia (technology) SCR
• Tipo de salida (output type) CC
• Alto (height) 28 [mm]
• Ancho (width) 80 [mm]
• Largo (length) 110 [mm]
• Entre centro (pitch) 85 [mm]
• Con sensor (with sensor) NO

Part No. 44-6330.AH (oro2u.com)

- .

- Direct oem replacement.

- All products are factory tested for 100% reliability at point of sale

- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.

- Note. No Returns on Electrical Parts.

Cross reference numbers ONLY.

31600-MEA-670 HONDA, 31600-MEA-741 HONDA, SH579DA SHINDENGEN, SH579DB SHINDENGEN,

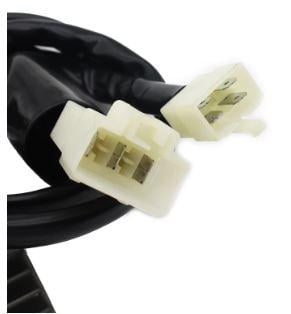

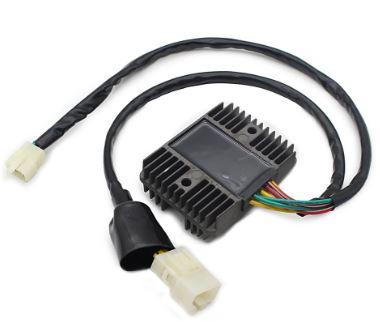

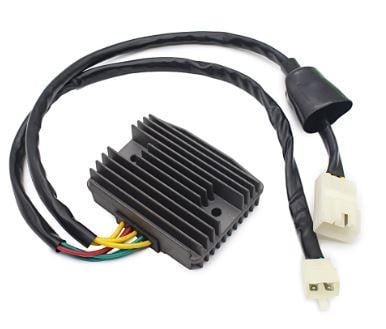

Dimension 110mm L x 80mm W x 28.6mm T Plug #1 (2) Red Wires (Positive), (2) Green Wires (Ground) Plug #2 (3) Yellow Wires (Charging Coil) Notes: Boot Over Plug #2 Notes: Wires (Incl. Plugs) Both 22 Inches OAL. RECTIFIER / REGULATOR 12V. Arrowhead AHA6113

Honda VTX S 1300 from 2003 to 2004 31600-MEA-670

Honda VTX C 1300 2004 31600-MEA-670

Honda VTX S 1300 from 2005 to 2009 31600-MEA-741

Honda VTX R 1300 from 2005 to 2009 31600-MEA-741

Honda VTX C 1300 from 2005 to 2009 31600-MEA-741

Reemplazo Shindengen SH579DB
