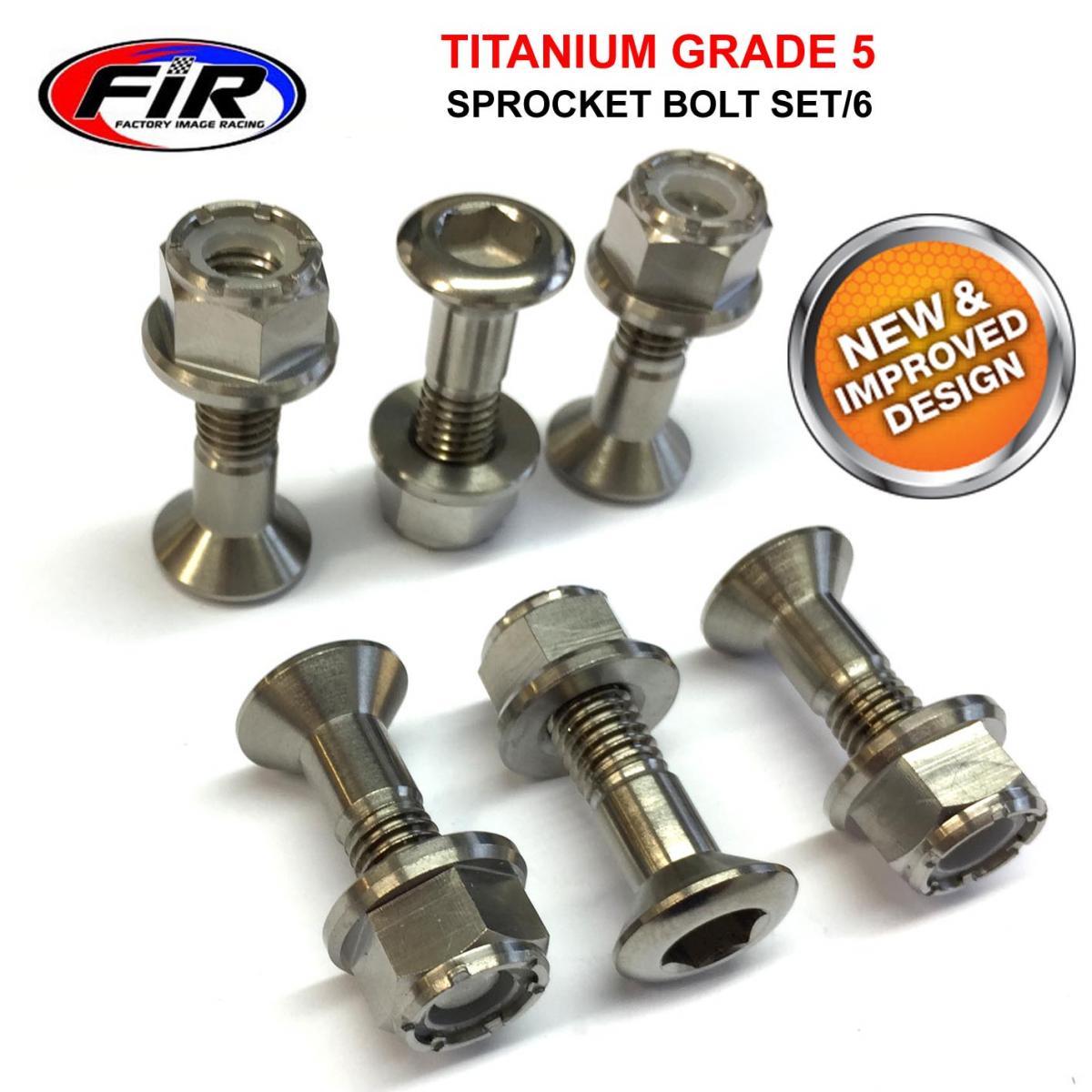

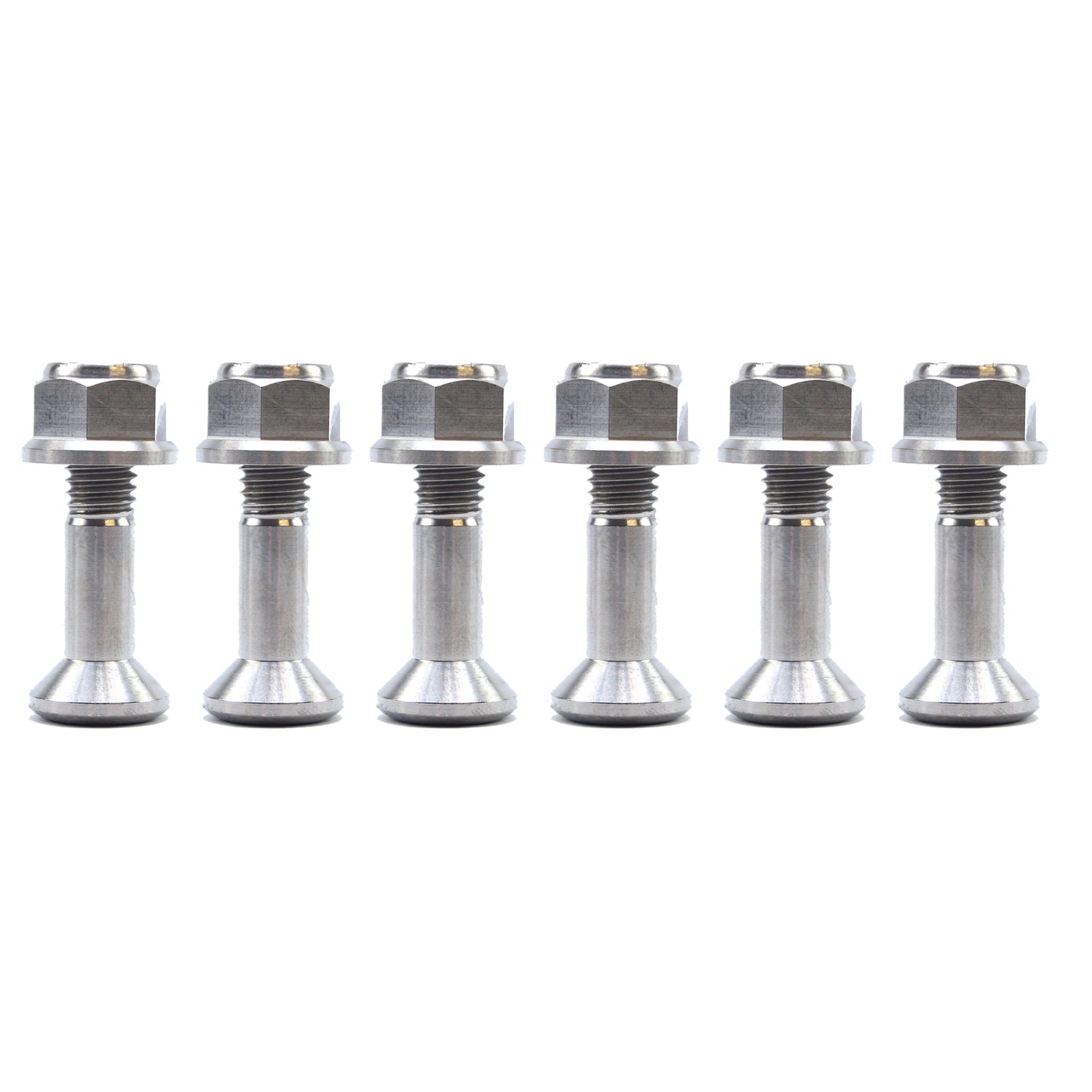

TITANIUM GRADE 5 SPROCKET BOLT SET OF 6

M8x35 OVER SIZE SPROCKET BOLTS

BOLT INFORMATION

• BOLT QTY: 6
• Material: Grade 5 (6Al/4V)
• Thread D :   M8

• Pitch P :   1.25mm
• Overall length L: 36.50mm
• CSK head L : 6.50mm

• Shank length : 15.00mm
• Thread length : 15.00mm
• Head Allen: 8mm Allen key


 NUT INFORMATION

• NUT QTY: 6
• Material: Grade 5 (6Al/4V)
• Thread D :   M8

• Pitch P :   1.25mm
• Overall height: 10.50mm
• Flange OD: 17.00mm
• Head HEX: 13mm Spanner Size

• Lock type : White Nylon


 CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9602.35.KIT

Cross reference numbers >
