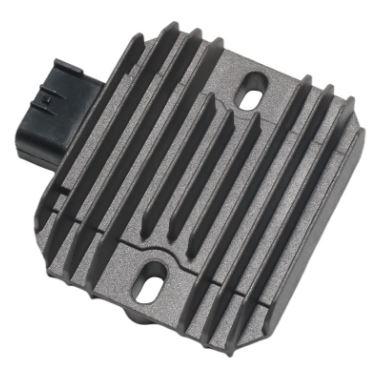

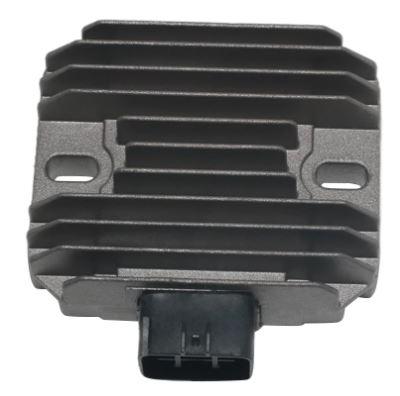

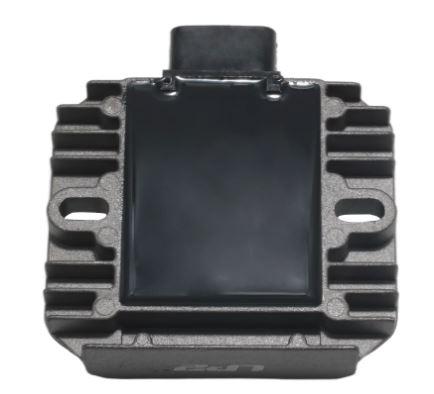

This voltage regulator is designed as a three-phase, full-wave rectifier for motorcycles, ATVs, and watercraft, supporting stable power output and charging performance. With a 14V/25A output and a 6-pin connector, it meets OEM specifications for a wide range of Suzuki and Yamaha models.

Features

• Direct OEM replacement
• Stock mounting locations
• Designed to handle increased power loads
• Best value for money
• All are made to OEM specifications and match the original equipment in appearance
• All electrical parts are 100% fully factory tested before shipping
• Please check the image before ordering to avoid mistakes
• Note: No returns on electrical parts
• Easy to install but if unsure please use a professional

Specifications

• Voltage: 14V
• Current: 25A
• Connector: 6 Pin
• Type: Three-phase full-wave rectifier (ACx3-DC)
• Battery open circuit voltage: 14.5±0.5V

Cross-Reference OEM Part Numbers

• RE-142
• 32800-14G00
• 32800-20H00
• ASU6017
• Tucker Rocky 464170
• Tucker Rocky 49-5840
• 6S8-81960-00-00
• 4XY-81960-00-00
• 6D3-81960-00-00
• 21066-003

Vehicle Fitments

• Suzuki GSR400 (2006–2010)
• Suzuki GSR600 / GSR600 ABS (2006–2010)
• Suzuki GSX1400 (2002–2007)
• Suzuki TU250 / TU250X (2009–2017)
• Suzuki UX125 Sixteen (2008–2012)
• Suzuki UX150 Sixteen (2008–2011)
• Suzuki UH125 Burgman (2007–2020)
• Suzuki UH200 Burgman (2007–2019)
• Suzuki DL1000 V-Strom 1000 (2002–2006)
• Suzuki AN250 Burgman 250 / Skywave 250 (2003–2006)
• Suzuki AN400 Burgman 400 / Skywave 400 (2003–2016)
• Suzuki AN400Z ABS Burgman 400 / Skywave 400 (2007–2016)
• Suzuki LTA400 Eiger 400 (2008–2012)
• Suzuki LTA400 LT-A400FL2 (2012)
• Suzuki LTA400 LT-A400FZL2 (2012)
• Suzuki LTA400 LT-A400 KingQuad 400 2WD (2008–2012)
• Suzuki LTA400 LT-A400F KingQuad 400 4WD (2008–2012)
• Suzuki LTA400 LT-A400 KingQuad 400 ASi 2WD (2014)
• Suzuki LTA400 LT-A400F KingQuad 400 ASi 4WD (2014–2020)
• Suzuki LTA400 LT-A400FU KingQuad 400 4WD (2010)
• Suzuki LTA400 LT-A400FZ KingQuad 400 4WD (2011–2012)
• Suzuki LTA400 LT-A400FC KingQuad 400 ASi 4WD Limited Edition (2017)
• Suzuki LTA400 LT-A400FZ KingQuad 400 ASi 4WD Special Edition (2013–2017)
• Suzuki LTA450 LT-A450X KingQuad 450 (2007–2010)
• Suzuki LTA450 LT-A450XZ KingQuad 450 (2008–2009)
• Suzuki LTA500 LT-A500F Vinson 4WD (2002–2007)
• Suzuki LTA500 LT-A500XZ Vinson 4WD (2012)
• Suzuki LTA500 LT-A500XP Vinson 4WD (2009–2010)
• Suzuki LTA500 LT-A500X KingQuad 500AXi (1992–1995, 2011–2019)
• Suzuki LTA500 LT-A500XC KingQuad 500AXi Special Edition (2017)
• Suzuki LTA500 LT-A500XZ KingQuad 500AXi Limited Edition (2011–2016)
• Suzuki LTA500 LT-A500XP KingQuad 500AXi Power Steering (1992–1994, 2009–2018)
• Suzuki LTA500 LT-A500XPC KingQuad 500AXi SP Power Steering (2017)
• Suzuki LTA500 LT-A500XPZ KingQuad 500AXi LE Power Steering (2009–2017)
• Suzuki LTA700 LT-A700X KingQuad 700 (2006–2007)
• Suzuki LTA750 LT-A750X KingQuad 750AXi (1992–1995, 2008–2018)
• Suzuki LTA750 LT-A750XC KingQuad 750AXi Special Edition (2017)
• Suzuki LTA750 LT-A750XPC KingQuad 750AXi SP Power Steering (2017)
• Suzuki LTA750 LT-A750XZ KingQuad 750AXi Limited Edition (1992–1995, 2008–2016)
• Suzuki LTA750 LT-A750XP KingQuad 750AXi Power Steering (1992–1995, 2009–2018)
• Suzuki LTA750 LT-A750XPZ KingQuad 750AXi LE Power Steering (1992–1995, 2009–2017)
• Suzuki LTF400 LT-F400 KingQuad 400 2WD (2008–2012)
• Suzuki LTF400 LT-F400F KingQuad 400 4WD (2008–2020)
• Suzuki LTF400 LT-F400FU KingQuad 400 4WD (2010)
• Suzuki LTF400 LT-F400FZ KingQuad 400 4WD (2011–2014)
• Suzuki LTF500 LT-F500F Vinson 4WD (2003–2007)
• Yamaha VX1100
• Yamaha FX1000
• Yamaha FX140
• Yamaha Waverunner (2005–2014)
• Yamaha YZF-R6
• Yamaha V-Star
