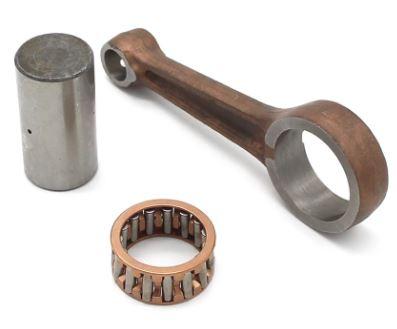

Crankshaft Connecting Rod Kit Con-Rod

Features:

• .
• Direct OEM replacement.
• Manufactured to the tightest tolerances for a better fit.
• Best value for money
• ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
• Please check the image before ordering to avoid mistakes.
• Note. Please make sure before you fit that all is correct to the old Connecting Rod Kit, fitting without checking is not our responsibility.

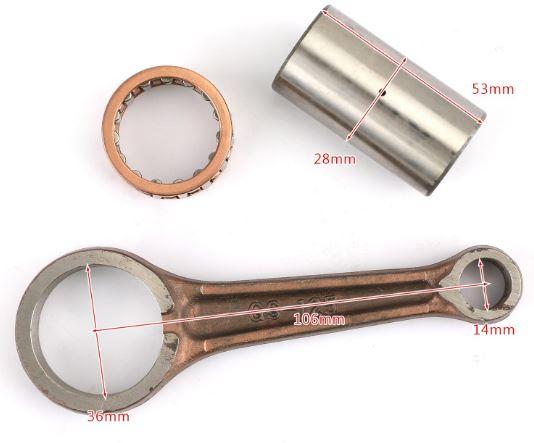

SPECIFICATION:

SIZE mm

• Centre 2 Centre                     106.30
• Small End Bearing                  None
• Small End Bore                      14
• Small End Width                     16
• Big End Bearing                      28x36x16
• Big End Bore                          36
• Big End Width                        16
• Big End Pin                            28
• Big End Pin Length                  52
• Washer Thickness                   None
• Overall Outside Length of Rod  139.50mm

Cross reference numbers ONLY.

• 12105-05821,
• 12105-05820

Compatible Models:

Suzuki

• GS125 GS125E 1982-2000
• GS125S 1999-2000
• GN125 GN125E 1982-2001
• TU125 1999
• GZ125 Marauder 1998-2007
• DR125 1982-1988
• DR125SE 1994-2002
• DF125 1999-2000
• DRZ125 DRZ125L 2003-2017
• CS125 1983
• SP125 1982-1988
• ALT125 1983-1985
• LT125 1983-1988
• DR100 1983-1990
• SP100 1983
