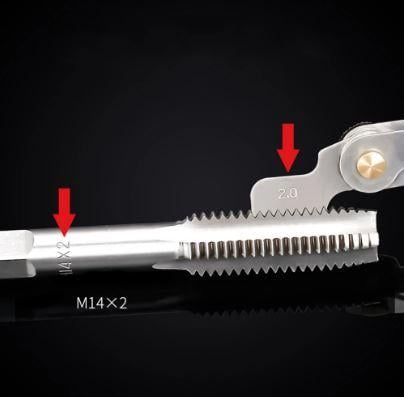

This metric screw pitch gauge is a measuring tool used to identify the pitch and form of internal and external threads. It allows threaded components to be checked quickly during inspection, machining, and lathe work, helping confirm the correct metric thread size before matching or cutting threads.

Features

• Used to determine internal and external thread forms
• Suitable for thread checking during workshop, machining, and lathe applications
• Fold-out gauge format for quick thread comparison
• Easy to use

Specifications

• Metric screw pitch gauge
• 60° thread profile
• Measuring range: 0.5, 0.6, 0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0 mm
• 20 blades
• Material: carbon steel

Cross-Reference OEM Part Numbers

• 00-941.FIR
• 00-941.DR
• 245110
