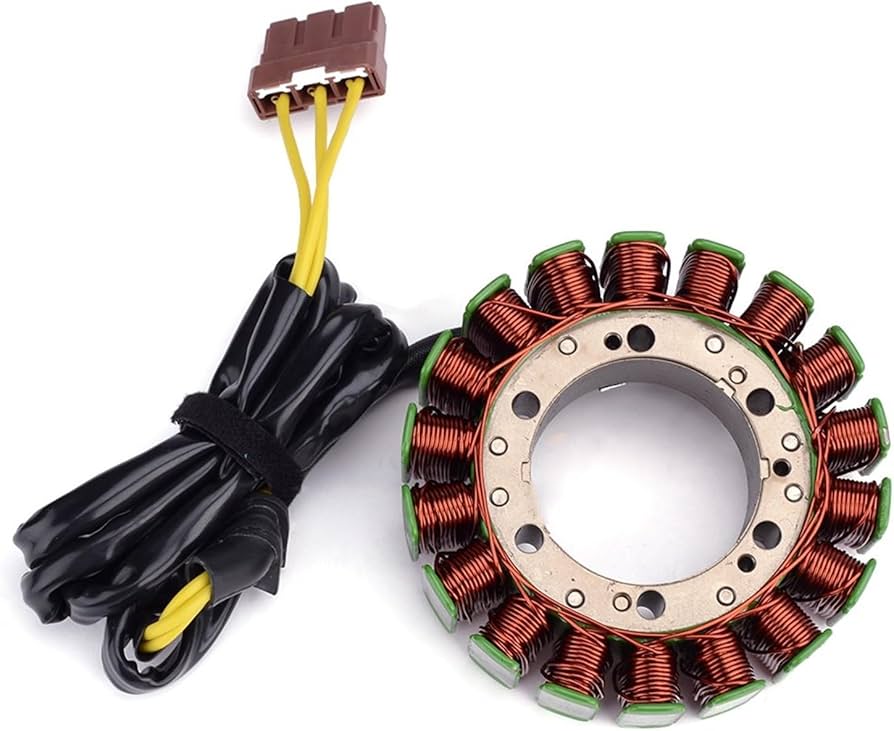

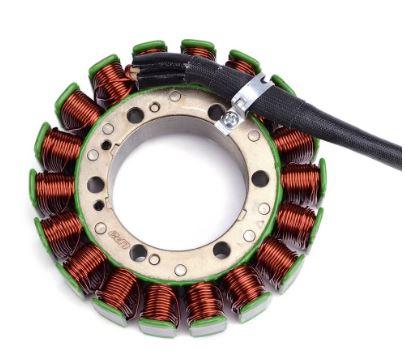

The stator coil is a direct OEM replacement component designed for specific Aprilia motorcycle models. It functions as a crucial part of the motorcycle's charging system, converting mechanical energy into electrical energy to power the vehicle's electrical components and charge the battery.

Features:

• Direct OEM replacement
• Designed to handle increased power loads
• standards

Specifications:

• Function: Converts mechanical energy into electrical energy for the motorcycle's electrical system
• Number of wires: 3

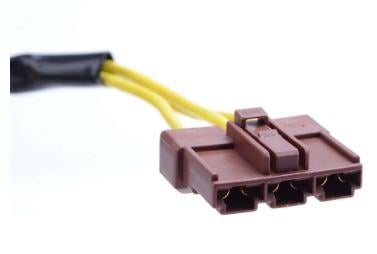

• Number of plugs: 1
• Number of pins: 3
• Wire to wire resistance: Yellow to yellow = 0.4 ohms ±20%

Dimensions:

• Interior diameter: 55 mm
• Exterior diameter: 115 mm
• Thickness: 24 mm

Wire lengths:

• Stator to grommet: 100 mm
• Grommet to plug: 950 mm

Vehicle Fitment:

• Aprilia RSV1000R: 2004–2008
• Aprilia RSV1000 Tuono: 2006–2009
• Aprilia ETV1000 Caponord ABS: 2001–2009
• Aprilia ETV1000 Caponord Rally Raid: 2003–2006
• Aprilia RST1000 Futura: 2001–2004
• Aprilia RSV1000R Factory (RRK0): 2006–2010
• Aprilia RSV1000R (RR00): 2004–2010
• Aprilia RSV1000 Tuono R Factory (RRM00): 2007–2011

Cross-Reference OEM Part Numbers:

• 268304
• AP0685330
