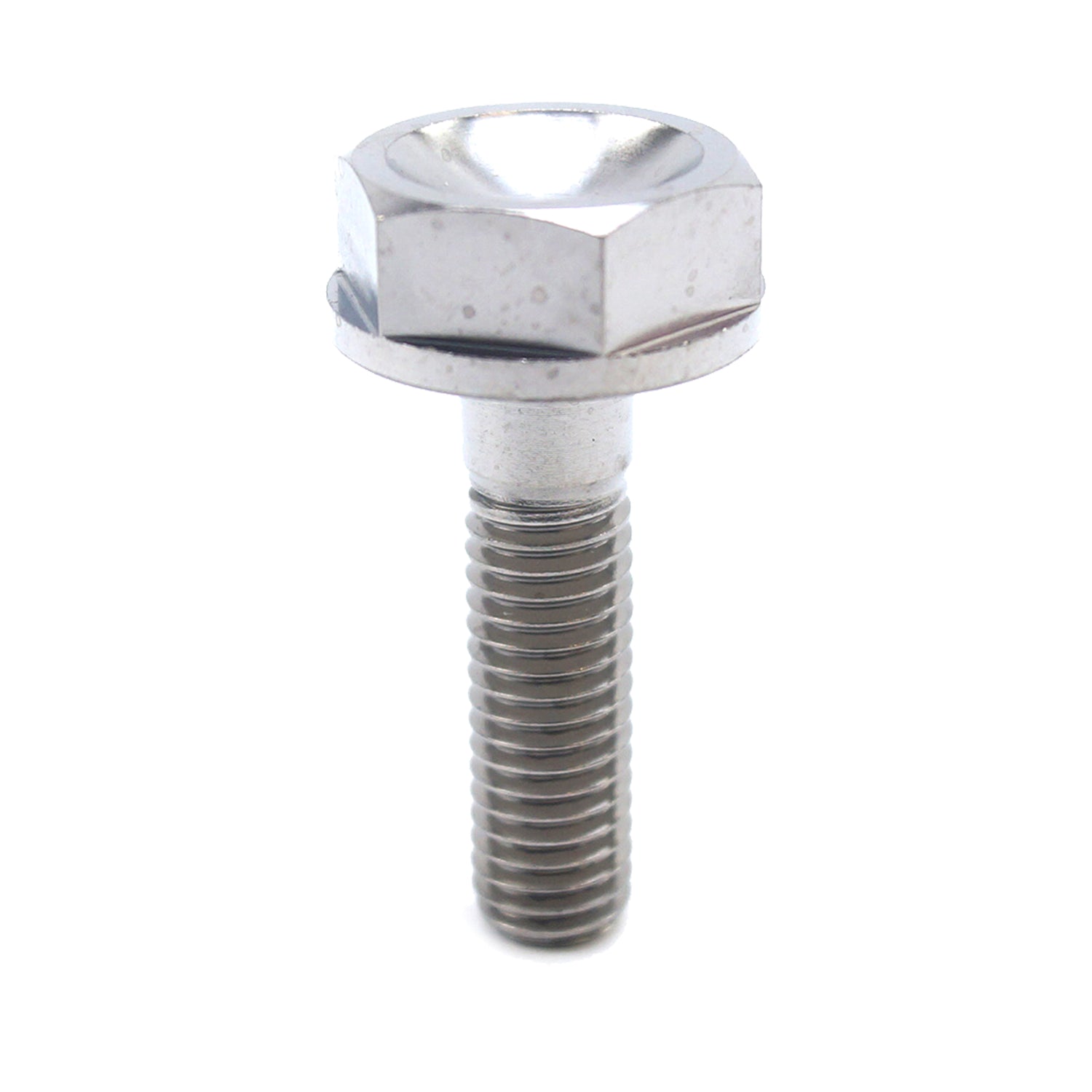

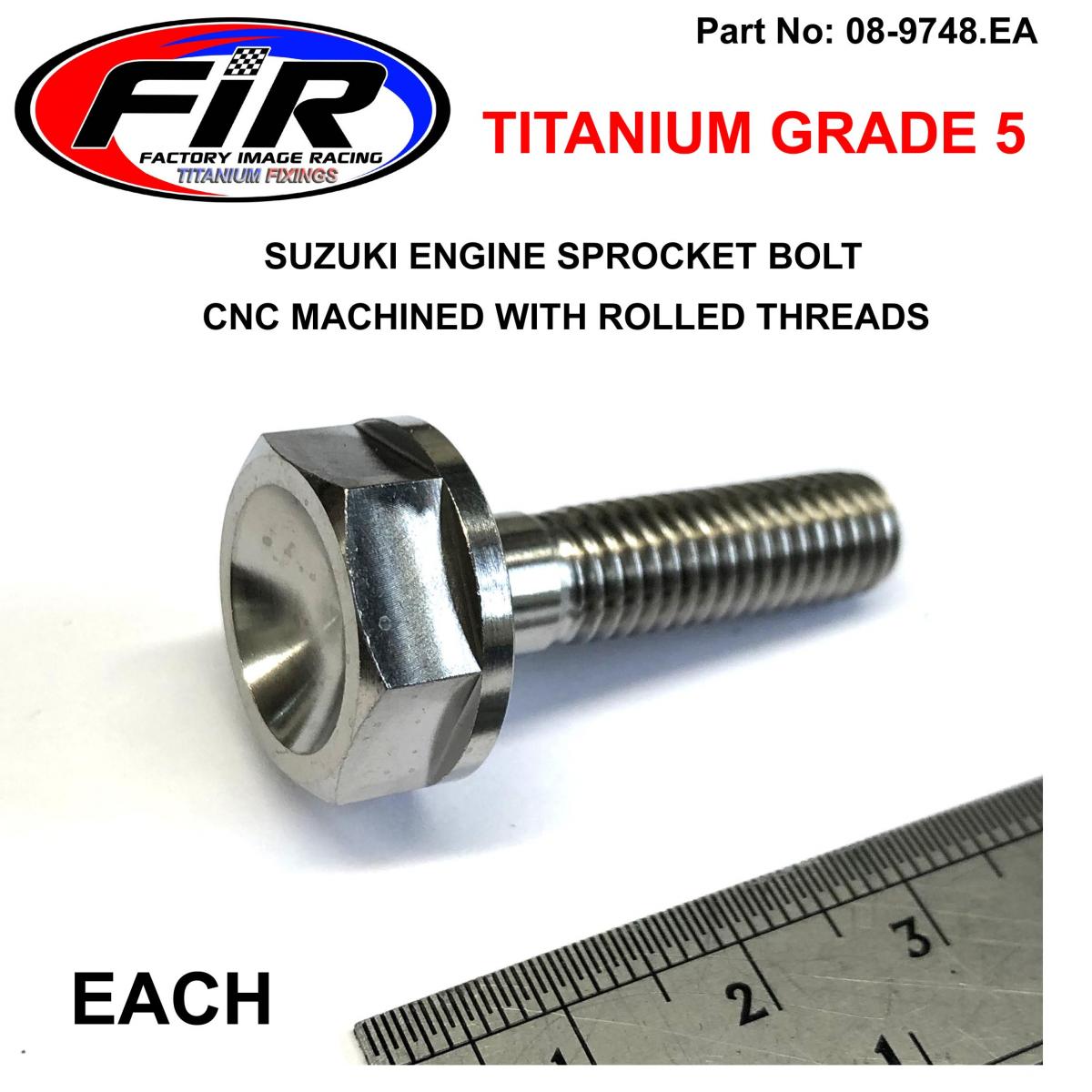

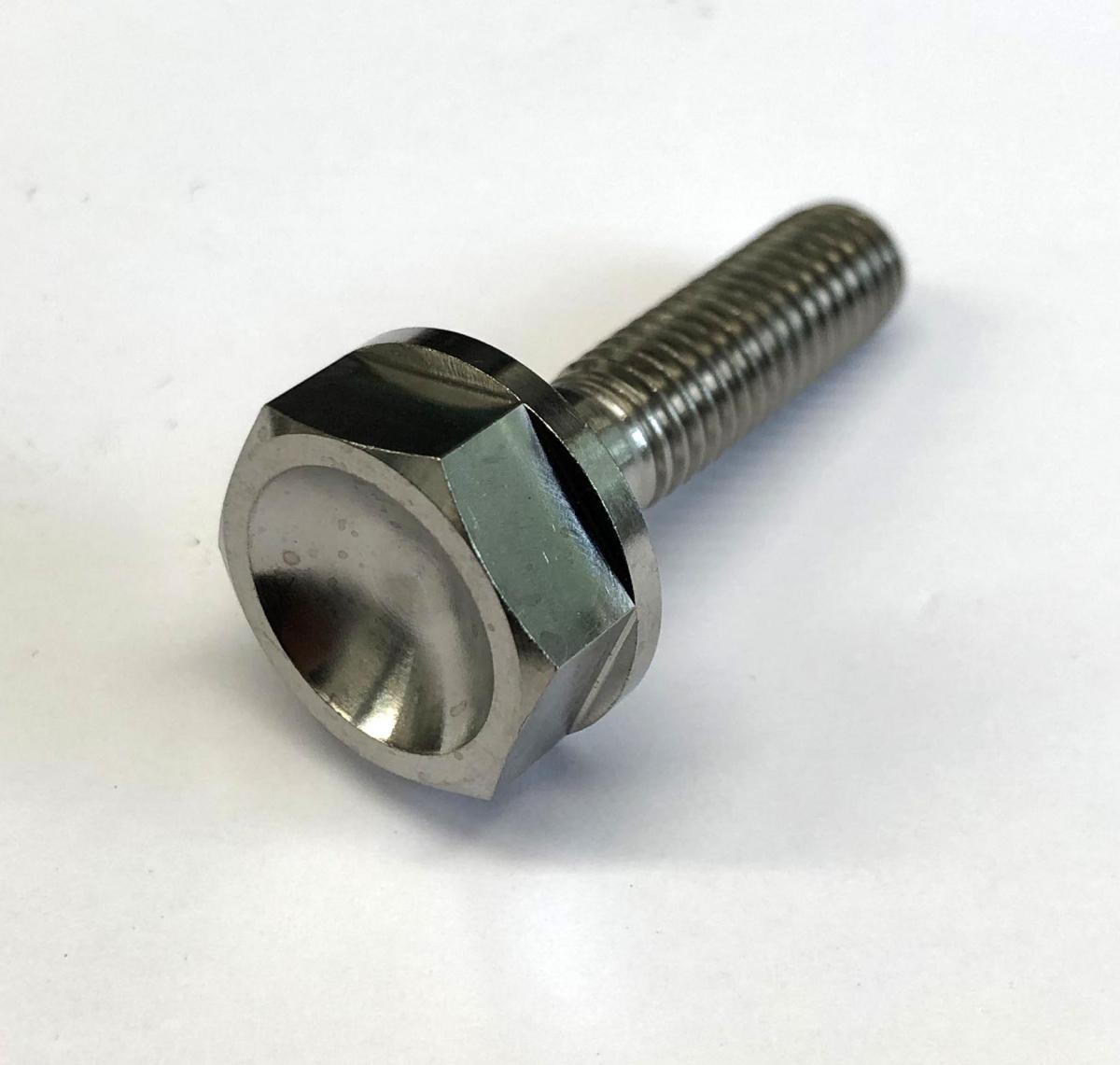

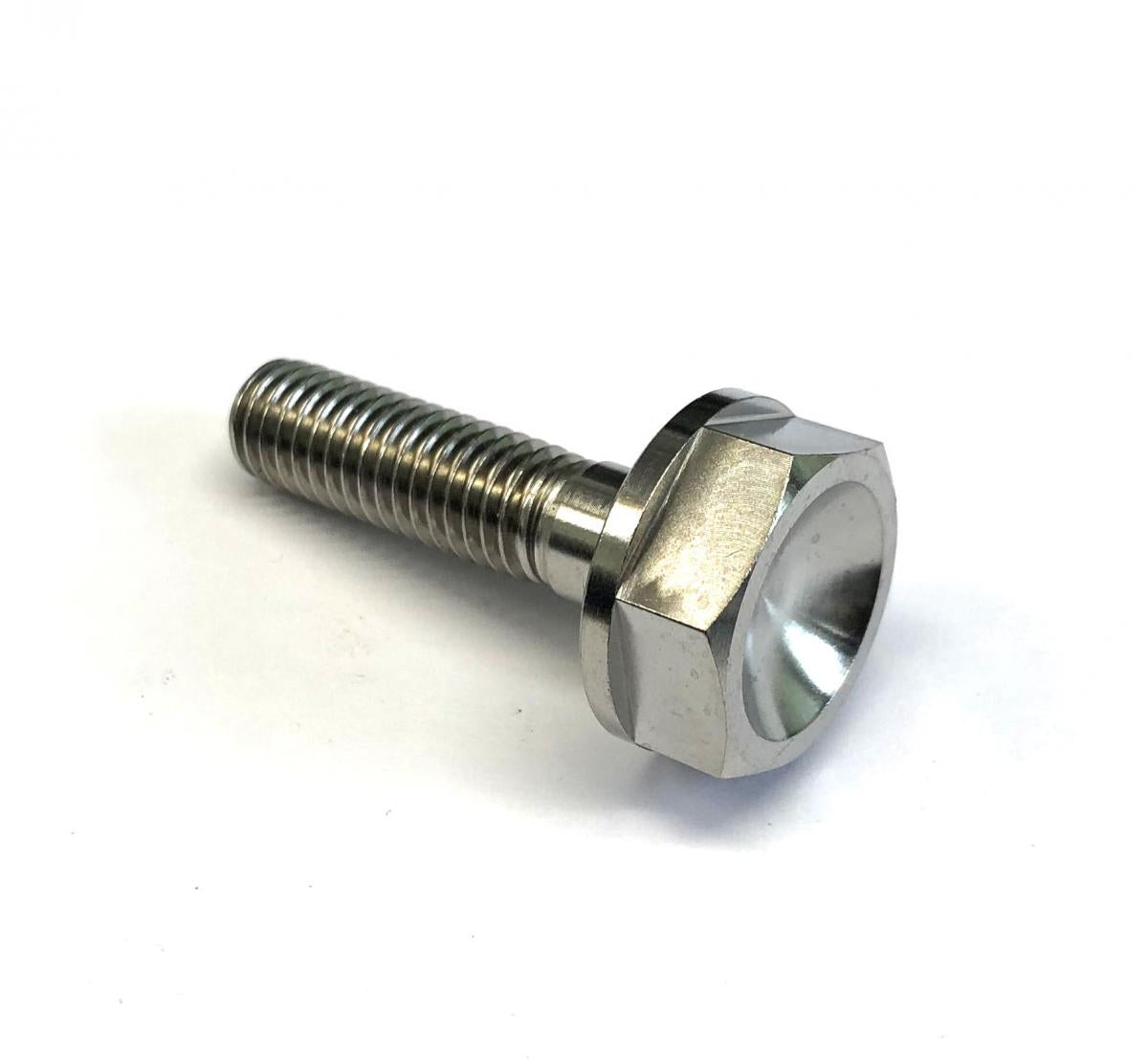

TITANIUM GRADE 5 SUZUKI ENGINE SPROCKET BOLT

• Compatibility: RMZ 250 / 450 2015>2021
• Material: Grade 5 (6Al/4V)
• Thread Diameter (D): M8
• Pitch (P): C 1.25mm
• Overall Length (L): 30.10mm
• Thread Length: 23.80mm
• Head HEX: 17mm spanner
• Flange OD: 19.45mm

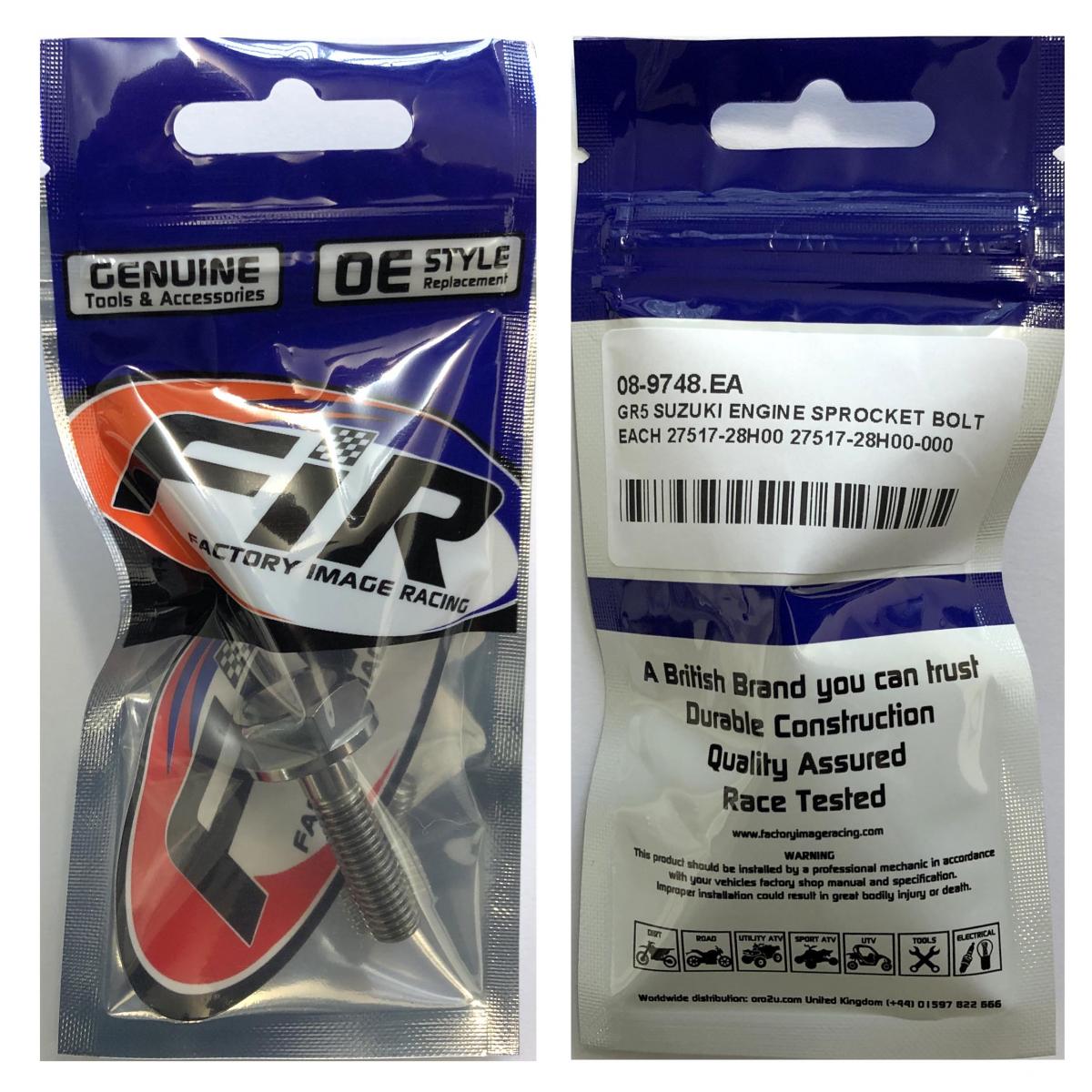

• OEM Cross Reference Numbers: 27517-28H00, 27517-28H00-000

THE TITANIUM BOLTS ARE GRADE 5, THE BEST GRADE TO USE IN THE MOTORCYCLE MARKET.

Compatible with:

• Suzuki Motorcycle 2020 RM-Z250 TRANSMISSION
• Suzuki Motorcycle 2019 RM-Z250 TRANSMISSION
• Suzuki Motorcycle 2018 RM-Z450 TRANSMISSION
• Suzuki Motorcycle 2017 RM-Z450L7 TRANSMISSION
• Suzuki Motorcycle 2020 RM-Z450 TRANSMISSION
• Suzuki Motorcycle 2019 RM-Z450 TRANSMISSION
• Suzuki Motorcycle 2018 RM-Z250 TRANSMISSION
• Suzuki Motorcycle 2015 RM-Z450L5 TRANSMISSION
• Suzuki Motorcycle 2016 RM-Z250L6 TRANSMISSION
• Suzuki Motorcycle 2016 RM-Z450L6 TRANSMISSION
• Suzuki Motorcycle 2017 RM-Z250L7 TRANSMISSION
