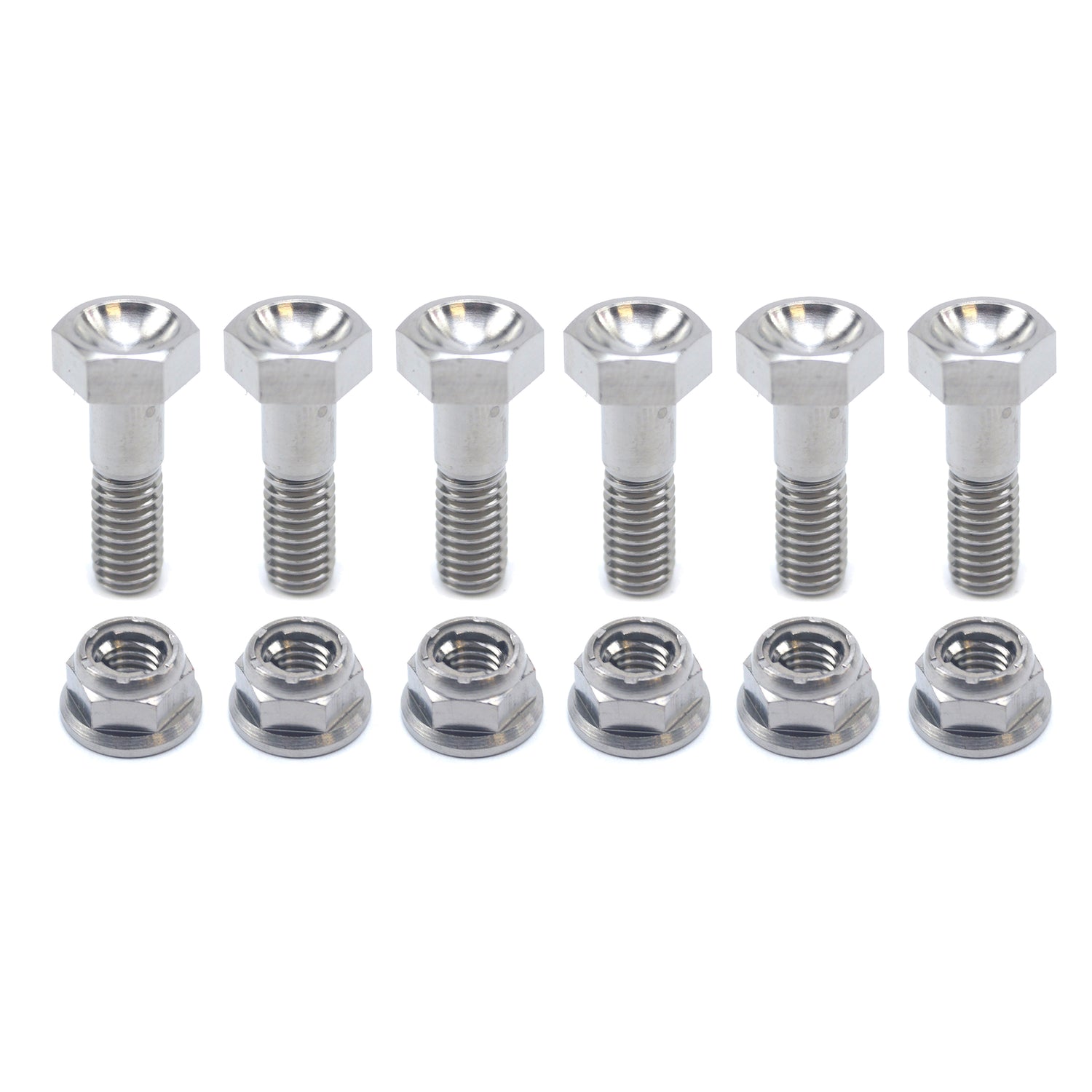

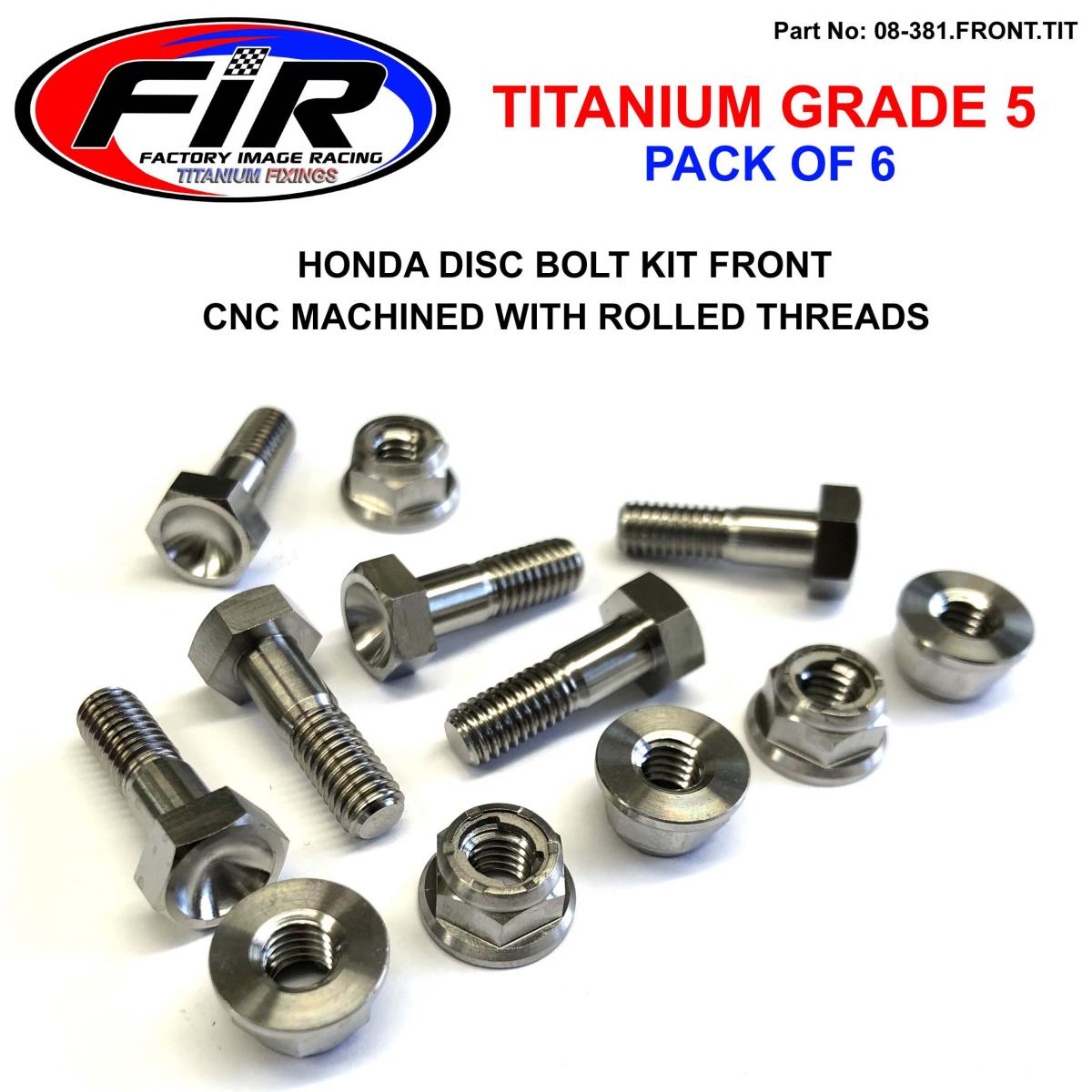

Factory Image Racing - Titanium Grade 5 Bolt Disc Set of 6 (Nuts & Bolts) for Honda Front

Compatibility:

• Honda CRF150/250/450: 2002-2019
• Honda CR125/250/500: 1995-2007

BOLT INFO:

• Material: Grade 5 (6Al/4V) Titanium
• Pitch (P): M6x1.00mm
• Overall Length (L): 19.60mm
• Thread Length: 11.00mm
• Head HEX: 10mm spanner
• Pack Quantity: 6
• OEM Reference: 90105-MAC-680

NUT INFO:

• Material: Grade 5 (6Al/4V) Titanium
• Pitch: M6x1.00mm
• OD Size: 12.70mm
• Overall Height: 7.25mm
• Head Hex Size: 10mm spanner
• Flange Surface Area: Smooth/Flush
• Locking Type: Metal Insert Lock
• Pack Quantity: 6
• OEM Reference: 90301-473-003

These titanium bolts are Grade 5, which is the highest grade available and the alpha grade of titanium. FIR fixings are all made from Grade 5 titanium.

Cross Reference Numbers:

• 90105-MAC-680
• 90301-473-003
• 90301-473-013
• 90301-MC7-003
