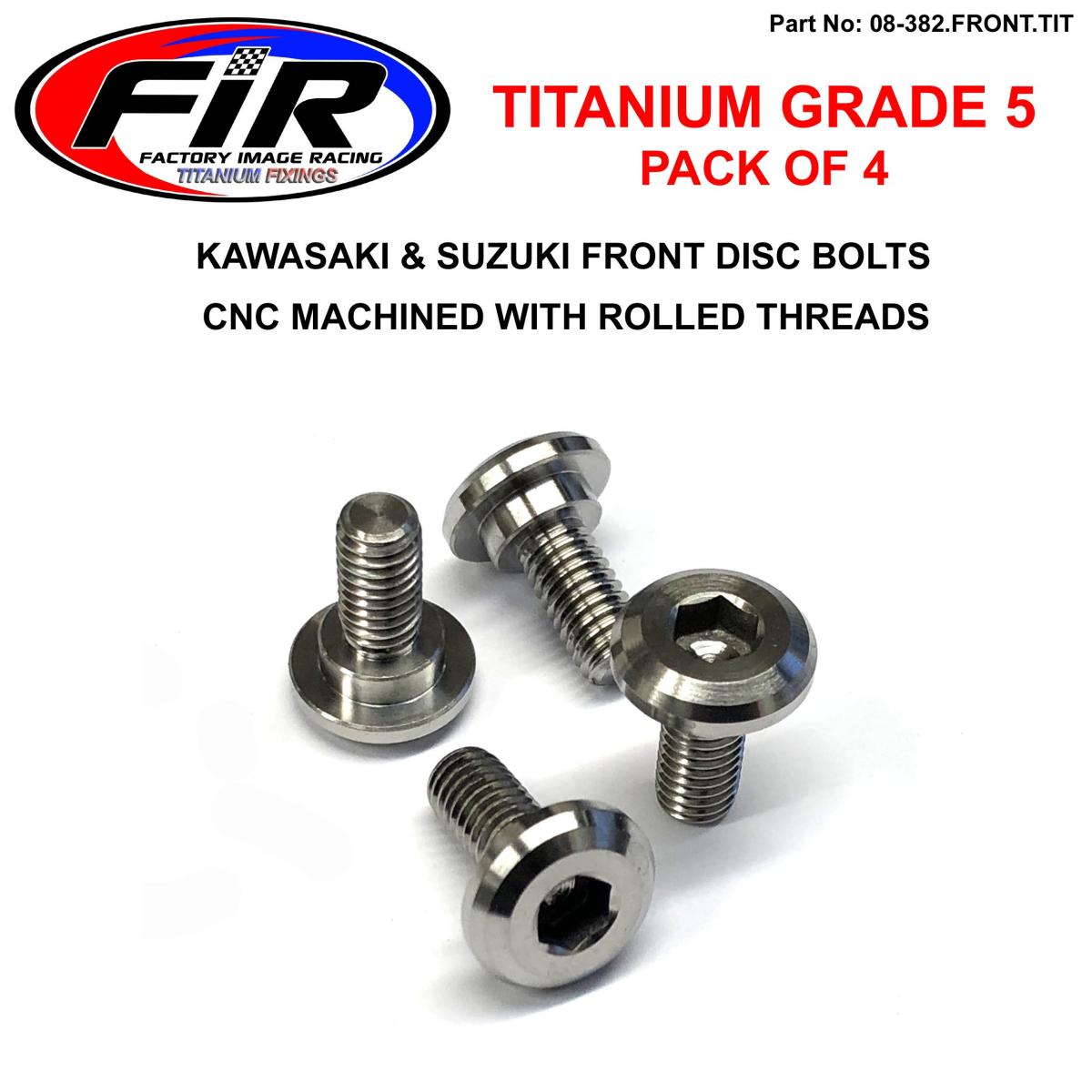

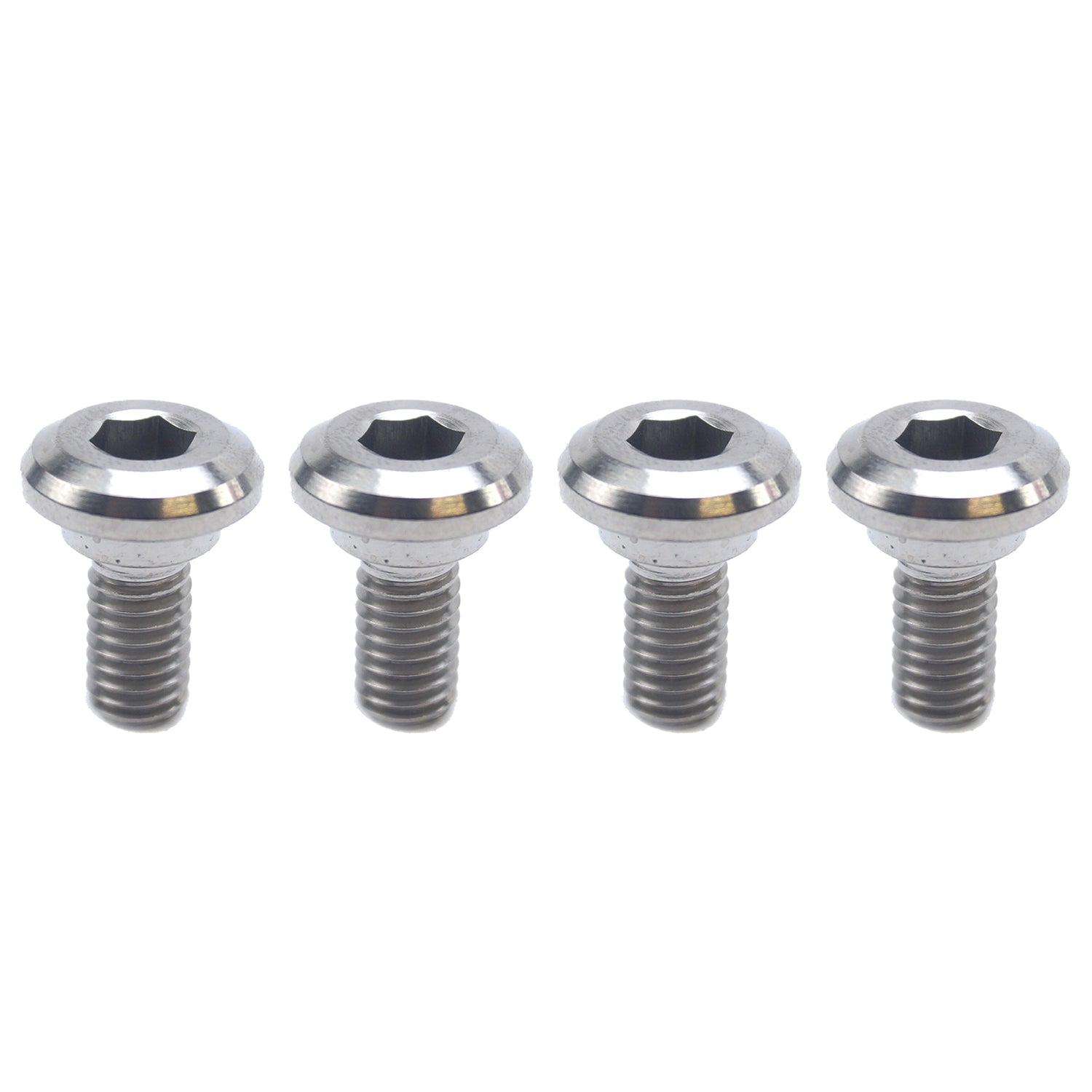

Factory Image Racing - Titanium Grade 5 Bolt Disc Set of 4 (Front) for Kawasaki & Suzuki

Compatibility:

• Kawasaki: KX/KXF 125-450: 2003-2021
• Suzuki: RMZ250/RMZ450/RMZ450: 2005-2021

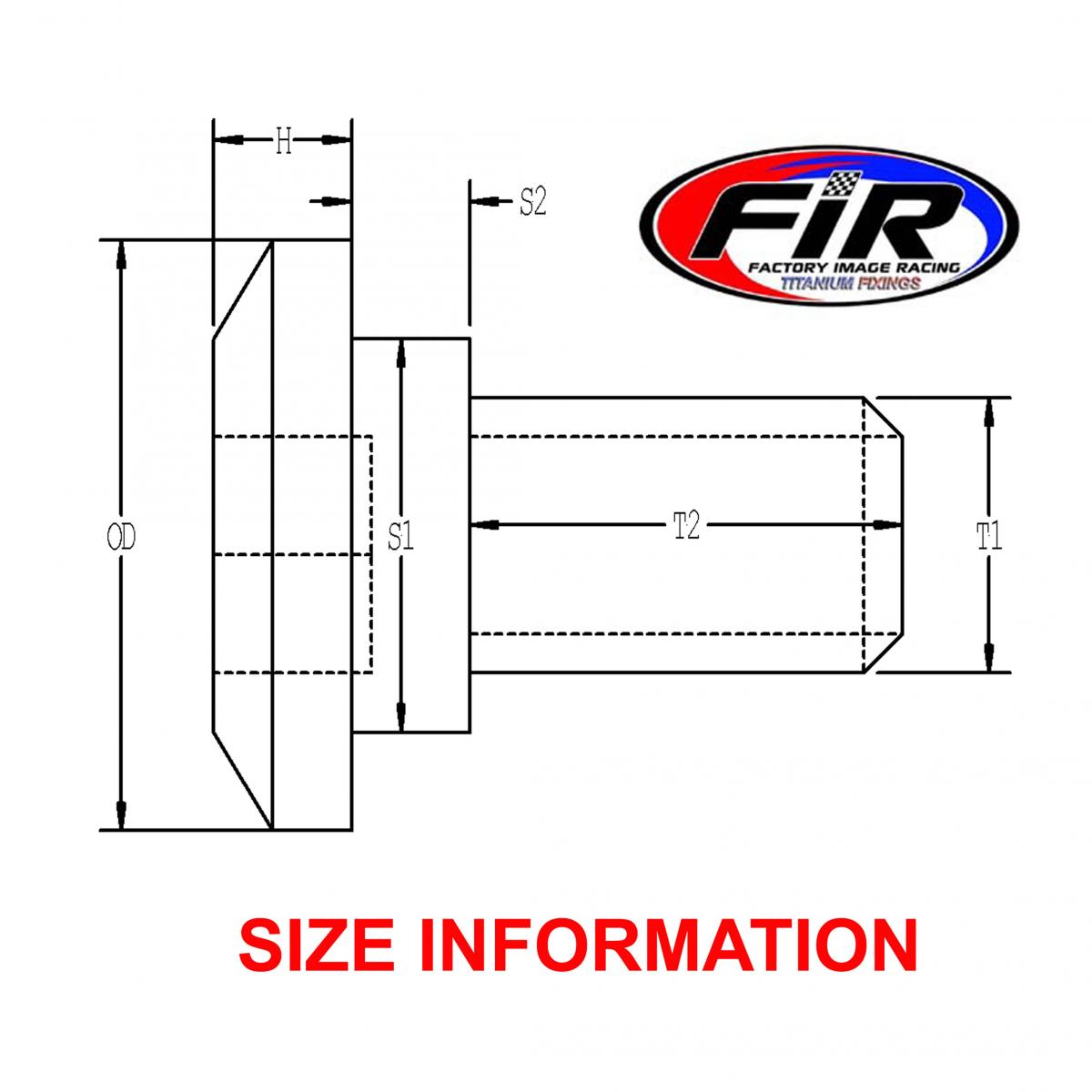

STEP BOLT INFO:

• Material: Grade 5 (6Al/4V) Titanium
• Pitch (T1): M6x1.00mm
• Length (T2): 11.50mm
• OD Step (S1): 8.90mm
• H Step (S2): 2.70mm
• L Head (H): 3.20mm
• Head OD: 13.30mm
• Head Allen: #5
• Pack Quantity: 4
• OEM Reference: SUZ 09139-06142

These titanium bolts are Grade 5, the highest grade available and the alpha grade of titanium. All FIR fixings are made from Grade 5 titanium.

Cross Reference Numbers Only:

• 09139-06142
