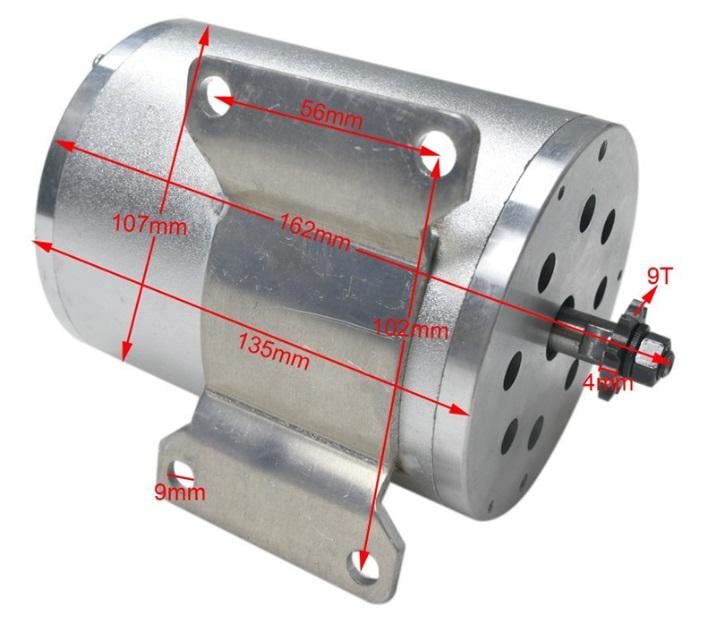

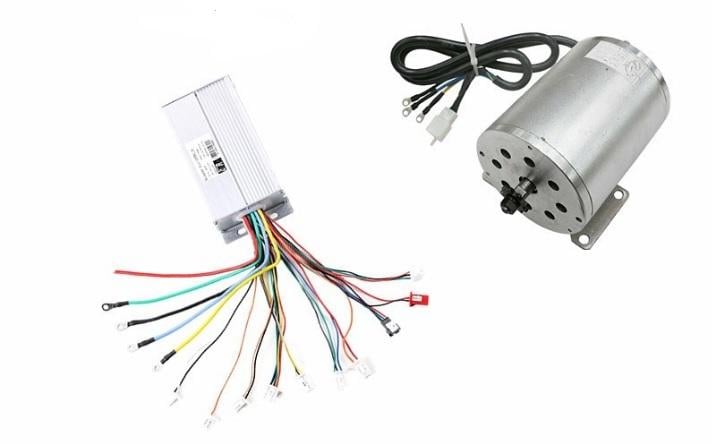

Electric brushless Motor

• Type : Brushless DC Motor
• Output Power: 1800W (2.5HP)
• Voltage : 48V
• Speed: 4500rpm
• Motor Sproket : 9T T8F CHAIN

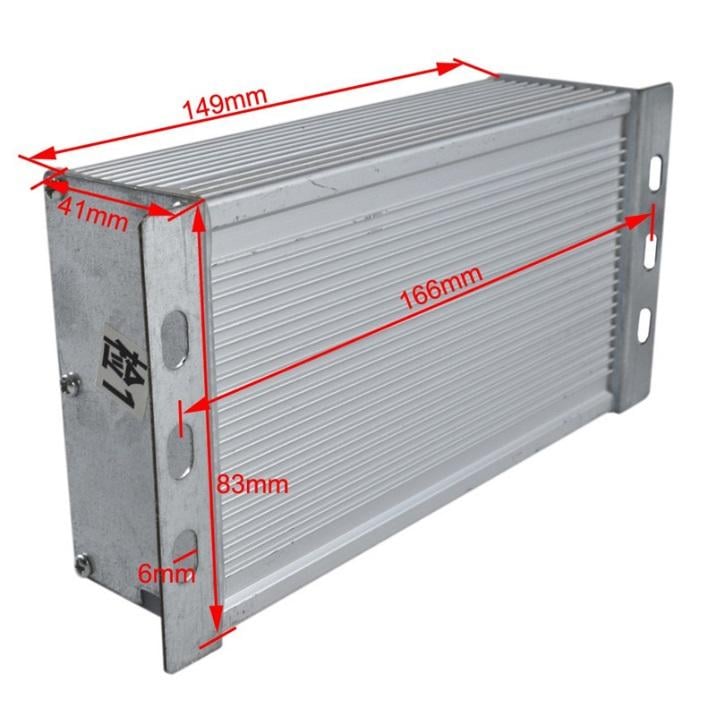

Motor Controller

• rated voltage: dc 48 v
• Current limit : 32A
• rated power: 1800w

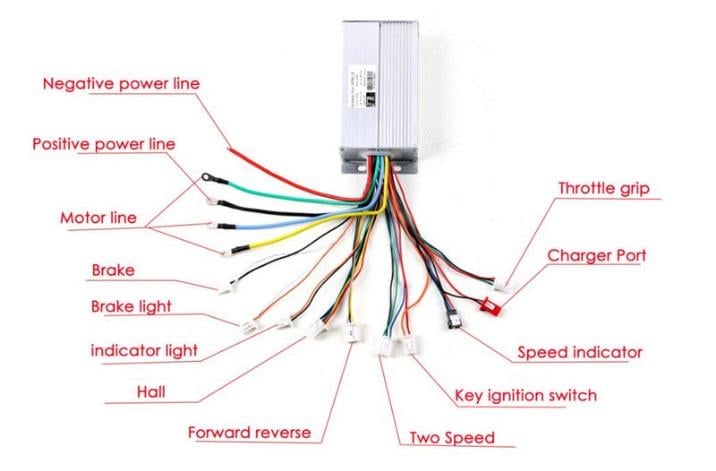

Wiring Info

• Battery :Thick Black (Power Negative) /Thick Red (Power Positive)
• Motor :Thick Yellow (Motor Negative) /Thick Blue (Motor Positive)
• Ignition Switch :Thin Red(VCC)/Thin Blue
• Indicator : Thin red (Indicator power output) /thin black (indicator negative)
• Brake :thin yellow (Brake signal)/thin black(Negative Power)
• Speed governor :Thin blue(Speed handlebar Signal input) /Thin black (Negtive Power) /thin red(5V Positive Power)
• Charge Port : Thin red (charge input power Positive) /thin black (Power negative)
• Brake Light: Thin red (power Positive) /thin black (Power negative)

Charger
