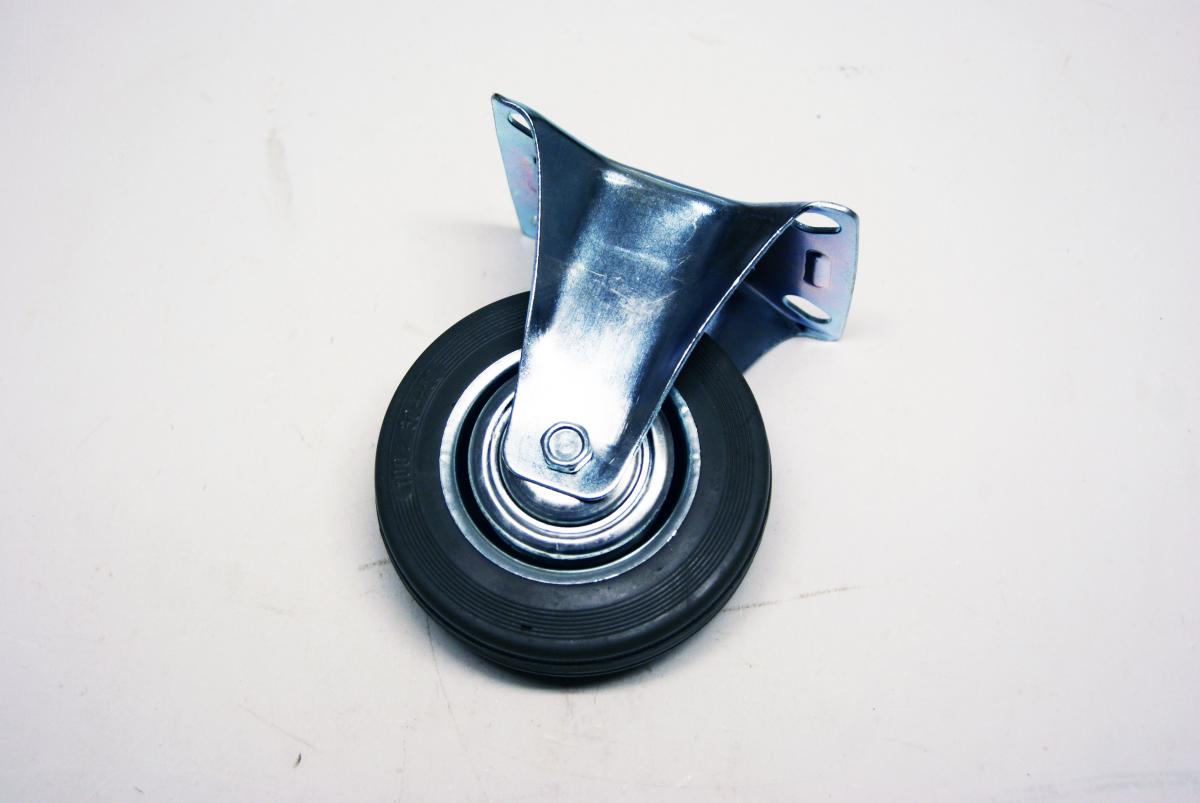

This fixed castor wheel assembly is designed to provide straight-line rolling support for equipment, trolleys, benches, and similar items that require a non-swivelling wheel fixed to a mounting plate. It is intended for bolt-on installation and is supplied as a single castor unit with a 70 kg load rating.

Features

• Fixed castor design for straight-line movement
• Suitable for plate-mounted installation
• Intended for use on mobile equipment and general-purpose wheeled applications
• Supplied as a single castor assembly

Specifications

• Wheel material: rubber
• Load capacity: 70 kg
• Overall height: 130 mm
• Wheel size: 75 x 21 mm
• Base plate size: 100 x 80 x 2 mm
• Fixing centres: 75 x 60 mm
• Fixing hole size: 15 x 8 mm

Cross-Reference OEM Part Numbers

• Toolstream: 873019
• Part No: 33-089
