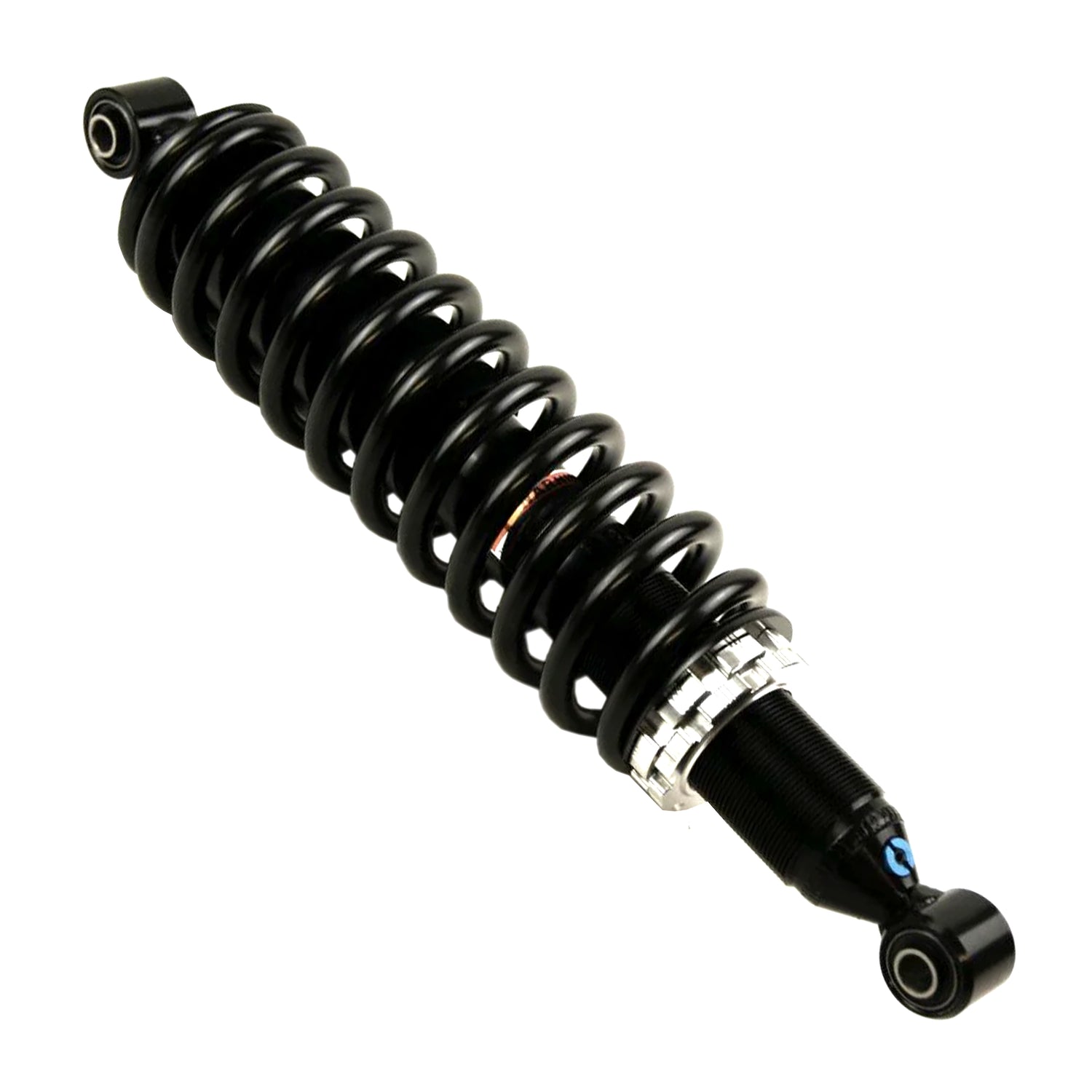

A heavy-duty gas shock designed for consistent damping performance and increased load capacity compared with stock oil-damped units. Supplied pre-assembled with spring and retainers for direct bolt-on installation.

Features

• Gas-damped construction for long-term consistent performance
• Approximately 10% stiffer spring for improved ride and higher load capacity
• Suitable for front use when fitting a snow plough
• Smooth black colour to match OEM appearance
• Direct bolt-on replacement with pre-installed spring
• Sold individually; includes one shock, spring and spring retainers

Specifications

• Position top hole I.D: 12 mm
• Top eyelet width: 32 mm
• Bottom hole I.D: 12 mm
• Bottom eyelet width: 36 mm
• Tube O.D: 45 mm
• Stroke: 155.6 mm
• Spring O.D: 90 mm
• Spring wire diameter: 12.5 mm
• Spring rate: 274 lbs/in (4.9 kg/mm)
• Centre to centre: 504 mm (19 5/6 in)

Vehicle Fitments

• Honda SXS1000 Pioneer 2016–2021
