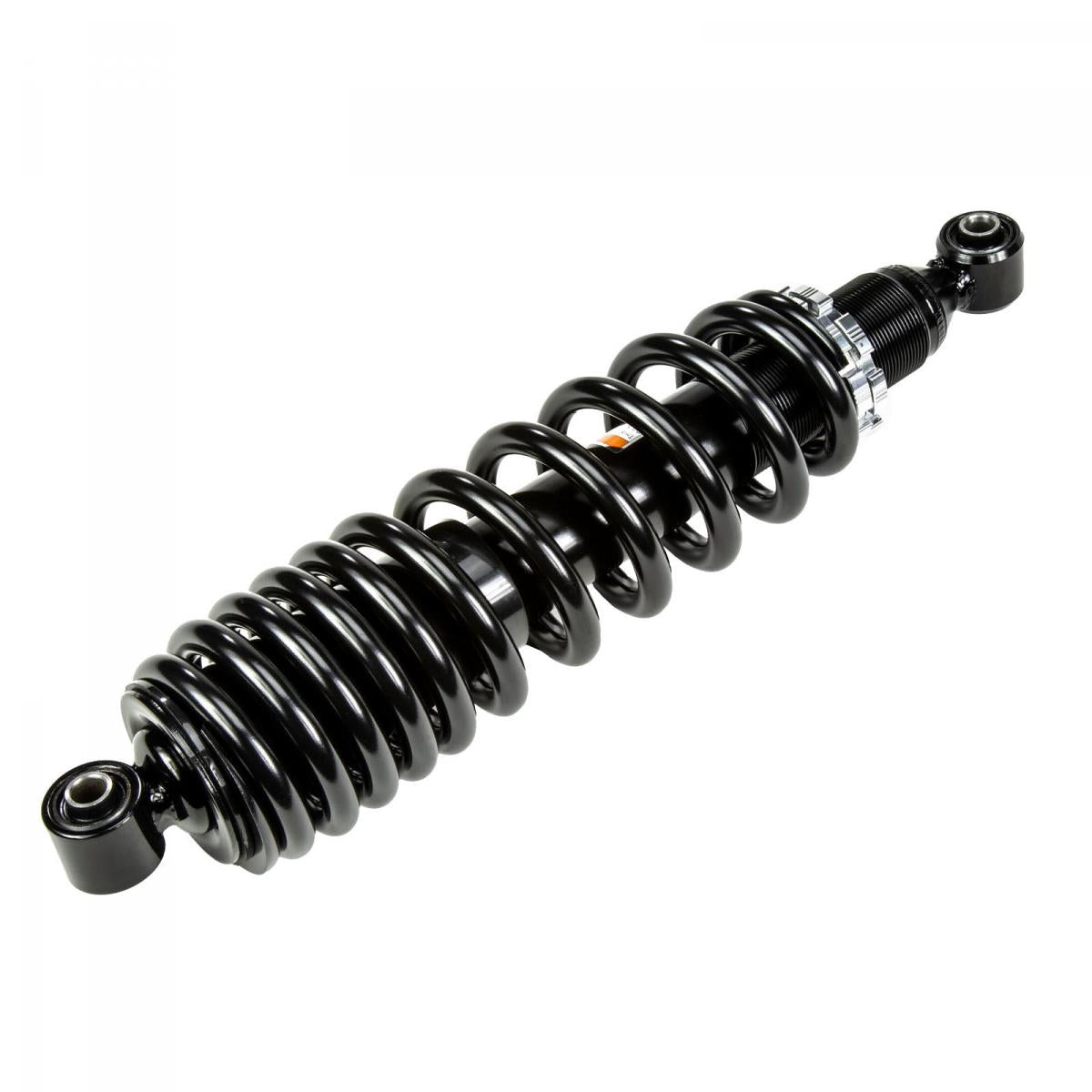

BRONCO HEAVY DUTY GAS SHOCKS

• Bronco gas shocks offer long-term consistent performance over stock oil-only damped shocks.
• 10% stiffer springs provide a better ride and higher load capacity.
• Works great on the front when installing a snow plow.
• Smooth black color blends perfectly with any OEM ATV.
• Direct bolt-on replacement: pre-installed spring allows for shock to be ready to mount right out of the box.
• Sold individually – Includes one shock, with spring, and spring retainers.

HONDA FITMENT

• PIONEER 500 (2017-2020)

YAMAHA FITMENT

• KODIAK 700 (2016-2020)

SPECIFICATIONS

• Position Top Hole I.D (mm): 10
• Top Eyelet Width (mm): 32
• Bottom Hole I.D (mm): 10
• Bottom Eyelet Width (mm): 32
• Tube O.D (mm): 39
• Stroke (mm): 88
• Spring O.D (mm): 79
• Spring Wire Diameter (mm): 11
• Spring Rate (lbs/inch): 269/459
• Spring Rate (kg/mm): 4.8/8.2
• Center to Center (mm): 359
• Center to Center (inches): 14 1/7

Cross Reference Numbers ONLY:
51400-HL5-C21, 2SM-F3350-00-00
