TITANIUM GRADE 5

KTM SX EXC SXF EXCF 16-2020 RAD / COVER BOLT KIT

• 08-9639.A INNER INFO

• OEM REF : 0024060123
• Material: Grade 5 (6Al/4V)
• Thread D: M6

• Pitch P: M Coarse 1.00mm
• Overall length L: 12.00mm
• Thread length : 12.00mm
• Head Dual : T45 Torx & 8mm Spanner

• Head Type : Round

• Flange OD:17.00mm
• Pack size : 4

• 08-9639.B OUTER INFO
• OEM REF 0025060166 & 79608052000
• Material: Grade 5 (6Al/4V)
• Thread D: M6

• Pitch P: M Coarse 1.00mm
• Overall length L: 13.50mm
• Thread length : 10mm
• Bush OD : 9.95mm
• Bush length : 3.50mm

• Head Dual : T45 Torx & 8mm Spanner

• Head Type : Round

• Flange OD:17.80mm
• Pack size : 4


CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

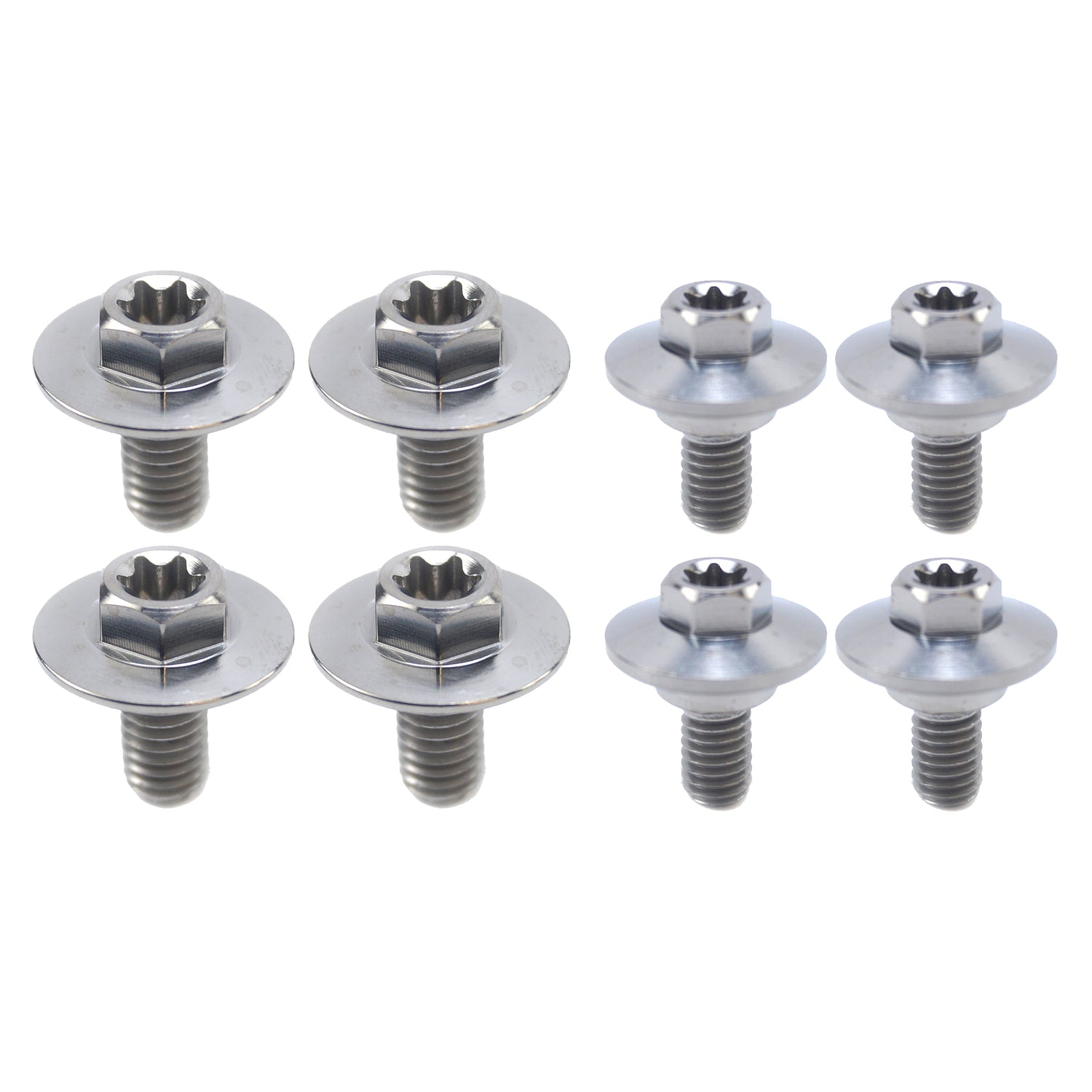

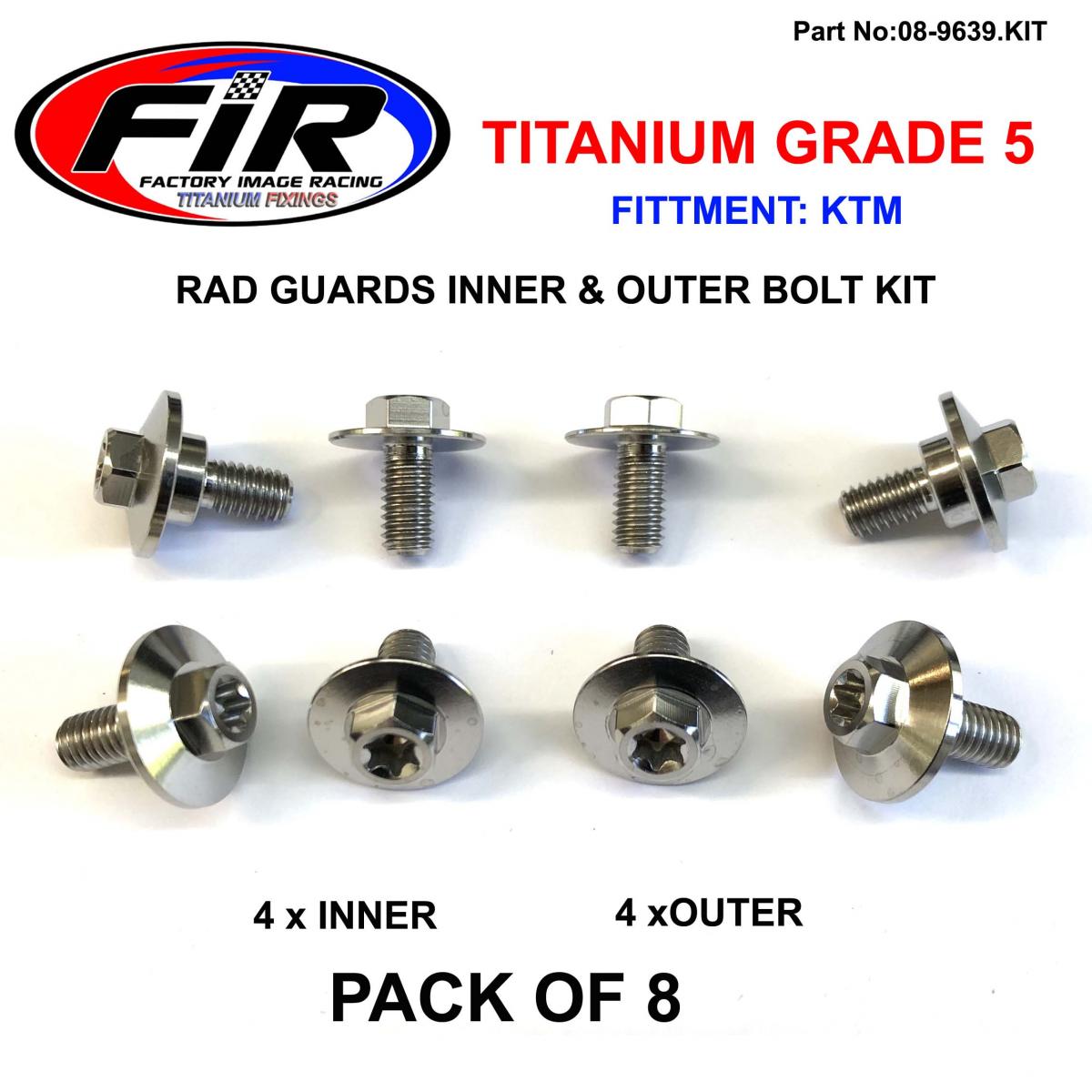

Part No. 08-9639.KIT
