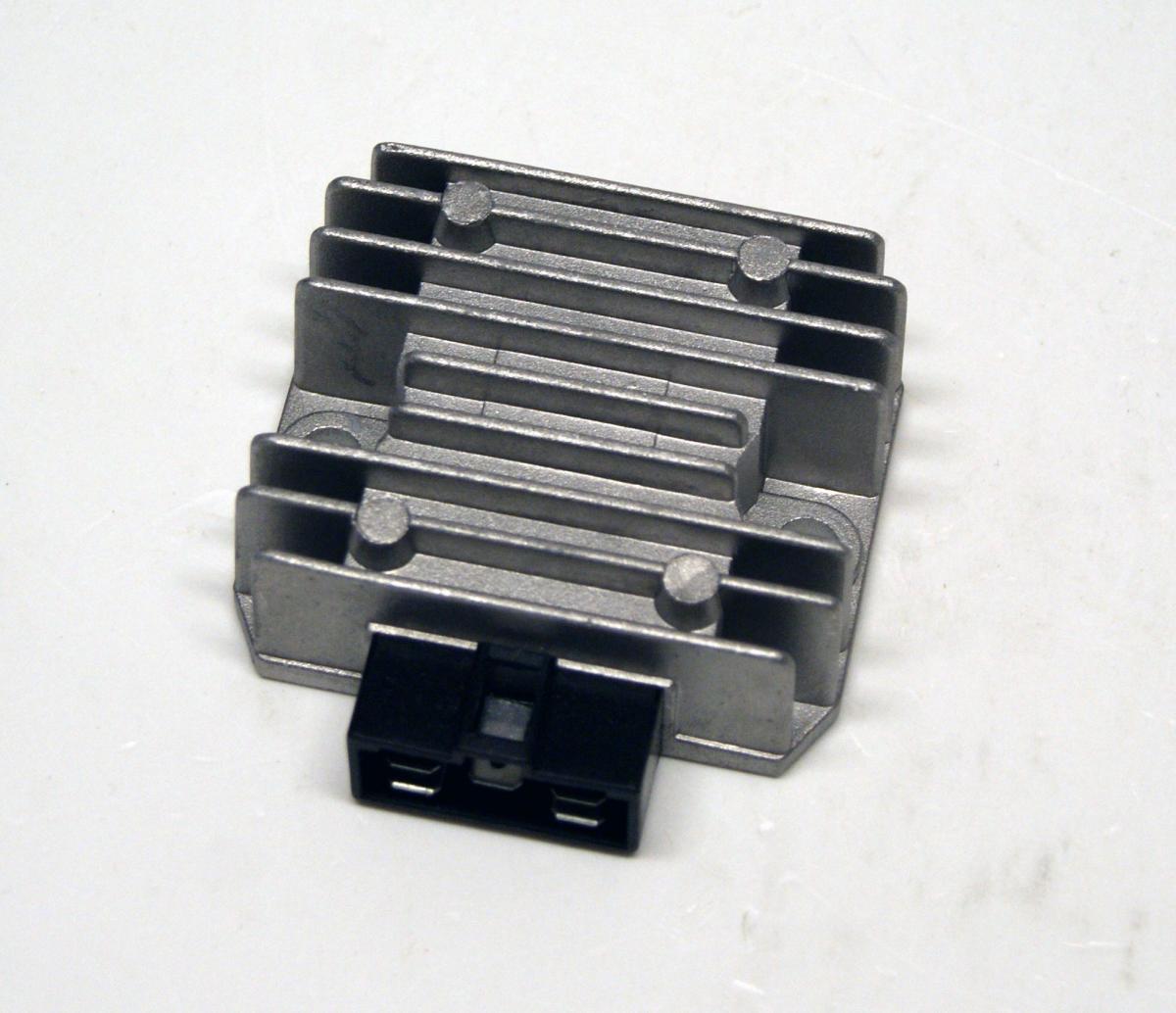

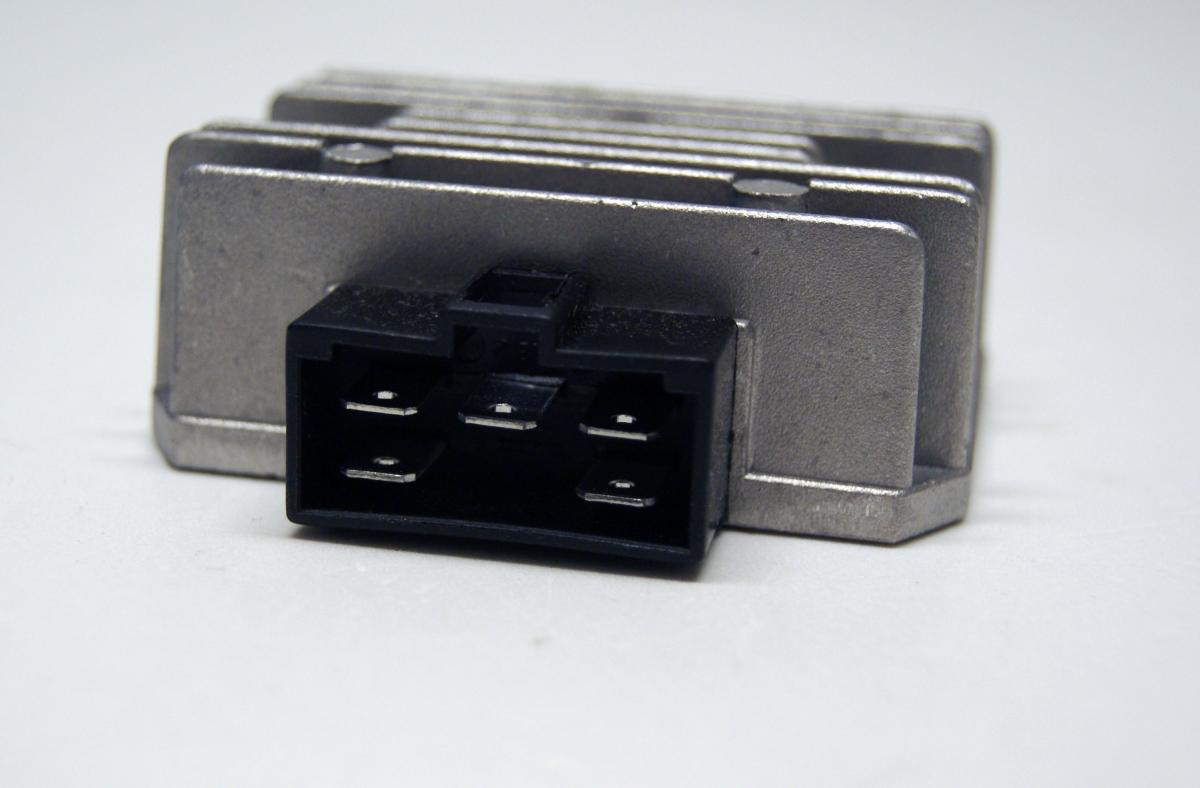

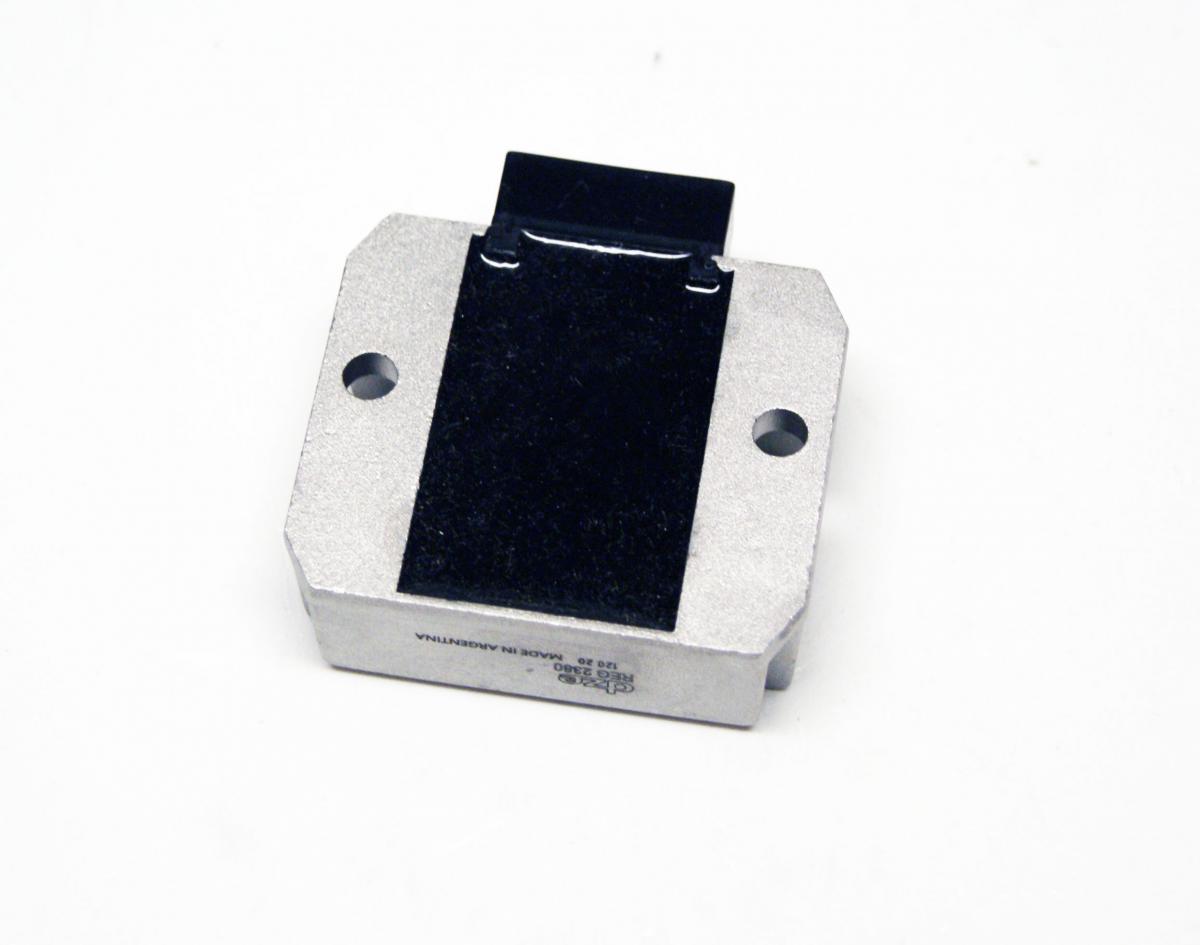

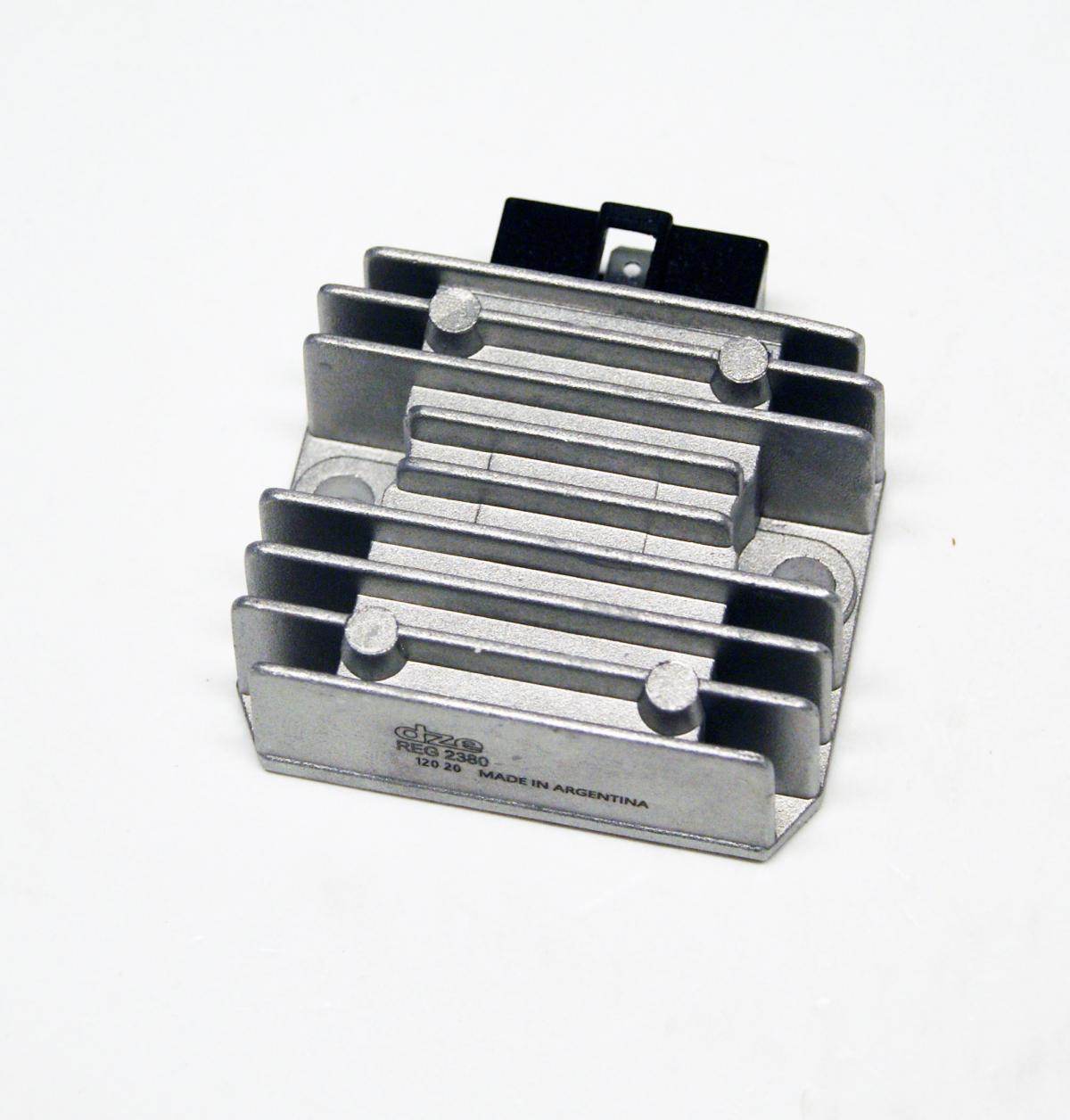

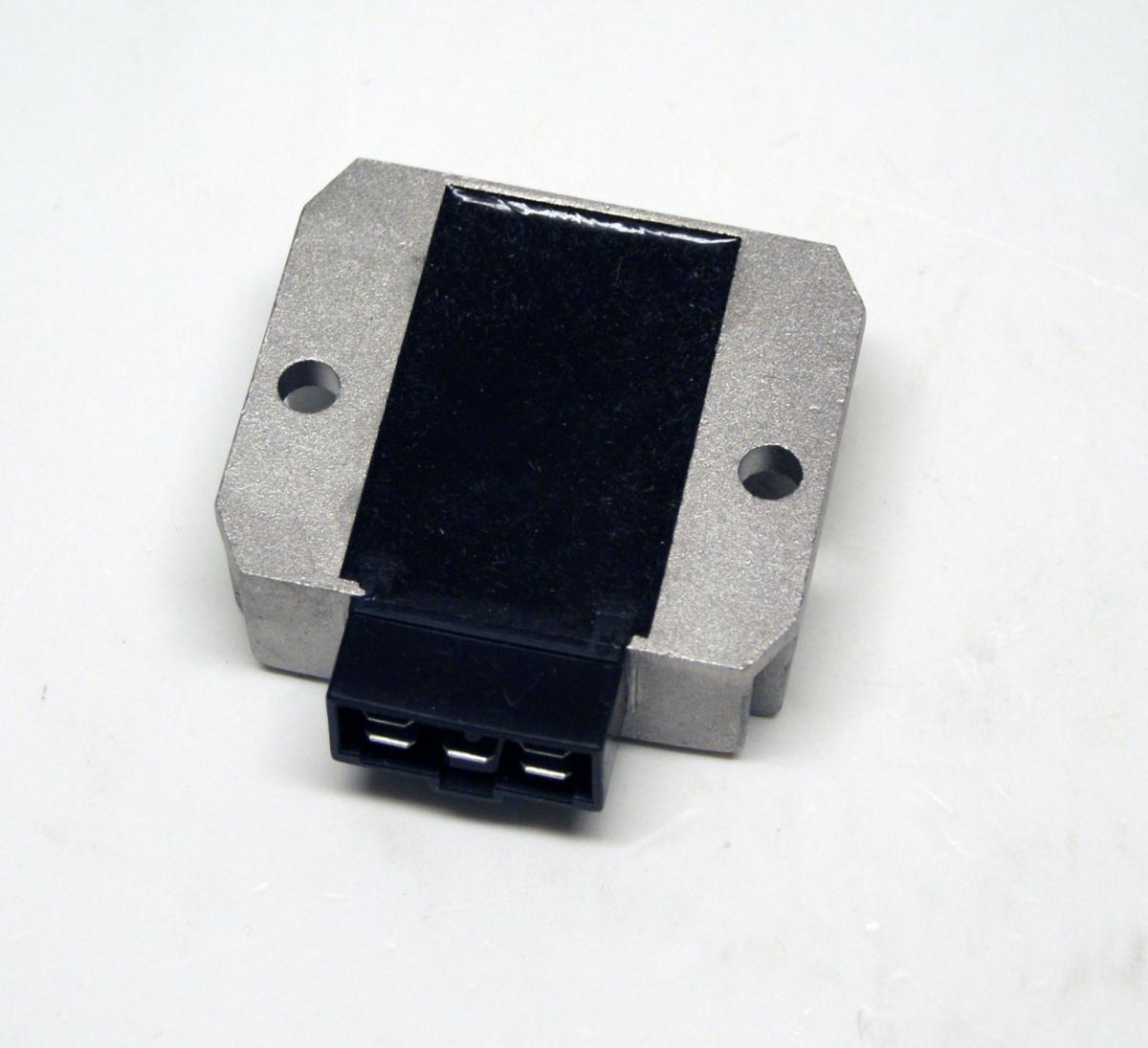

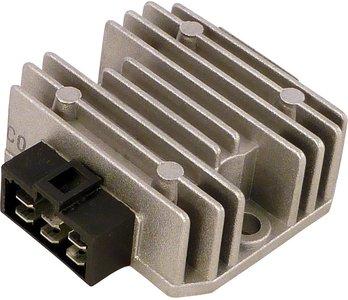

This motorcycle voltage regulator is a replacement charging-system component for the listed Honda and Yamaha models. It regulates the charging system’s output to supply DC power to the battery and electrical circuits.

Features

• Direct replacement for the original regulator.

Specifications

• Voltage: 12 V
• Current: 25 A
• Input: single-phase
• Technology: SCR
• Output: DC
• Height: 26 mm
• Width: 59 mm
• Length: 69 mm
• Mounting hole pitch: 55 mm
• Sensor: fitted

Cross-Reference OEM Part Numbers

• Honda: 31600-KRF-B50
• Yamaha: 4B4-H1960-00, 4B4-H1960-00-00
• DZE: 02380-04, 2380-04

Vehicle Fitments

• Honda SDH Storm 125: 2006–2008
• Yamaha XTZ 250: year not specified
