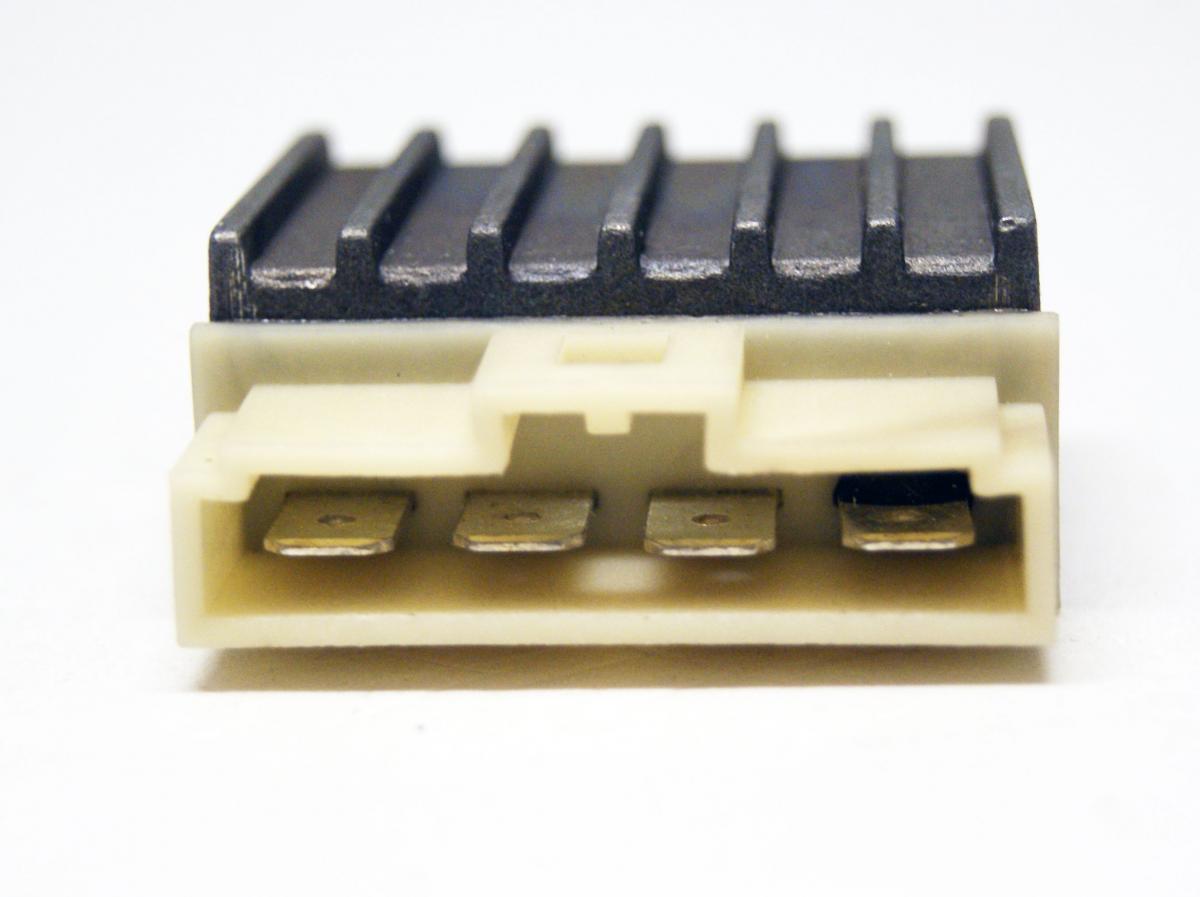

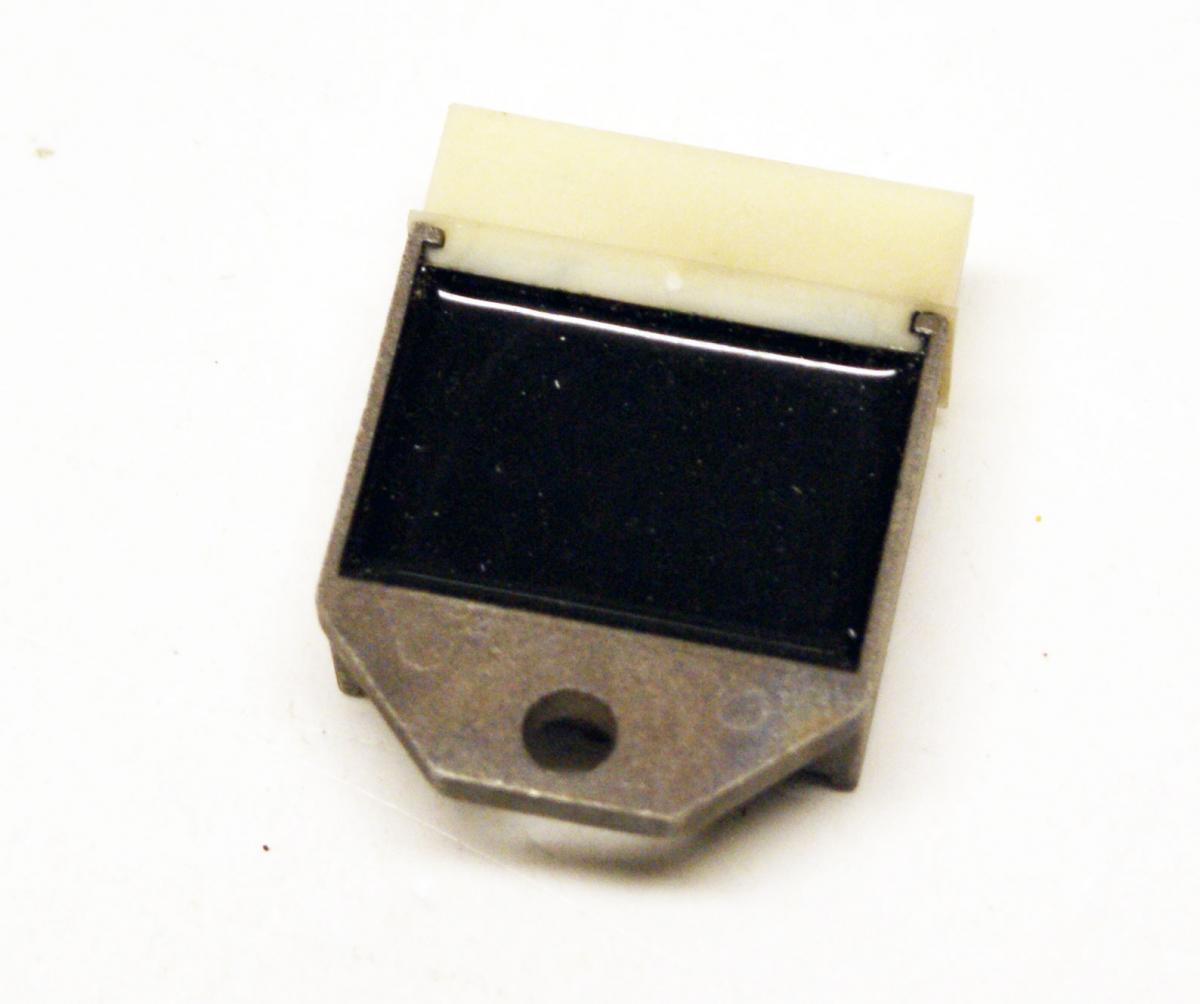

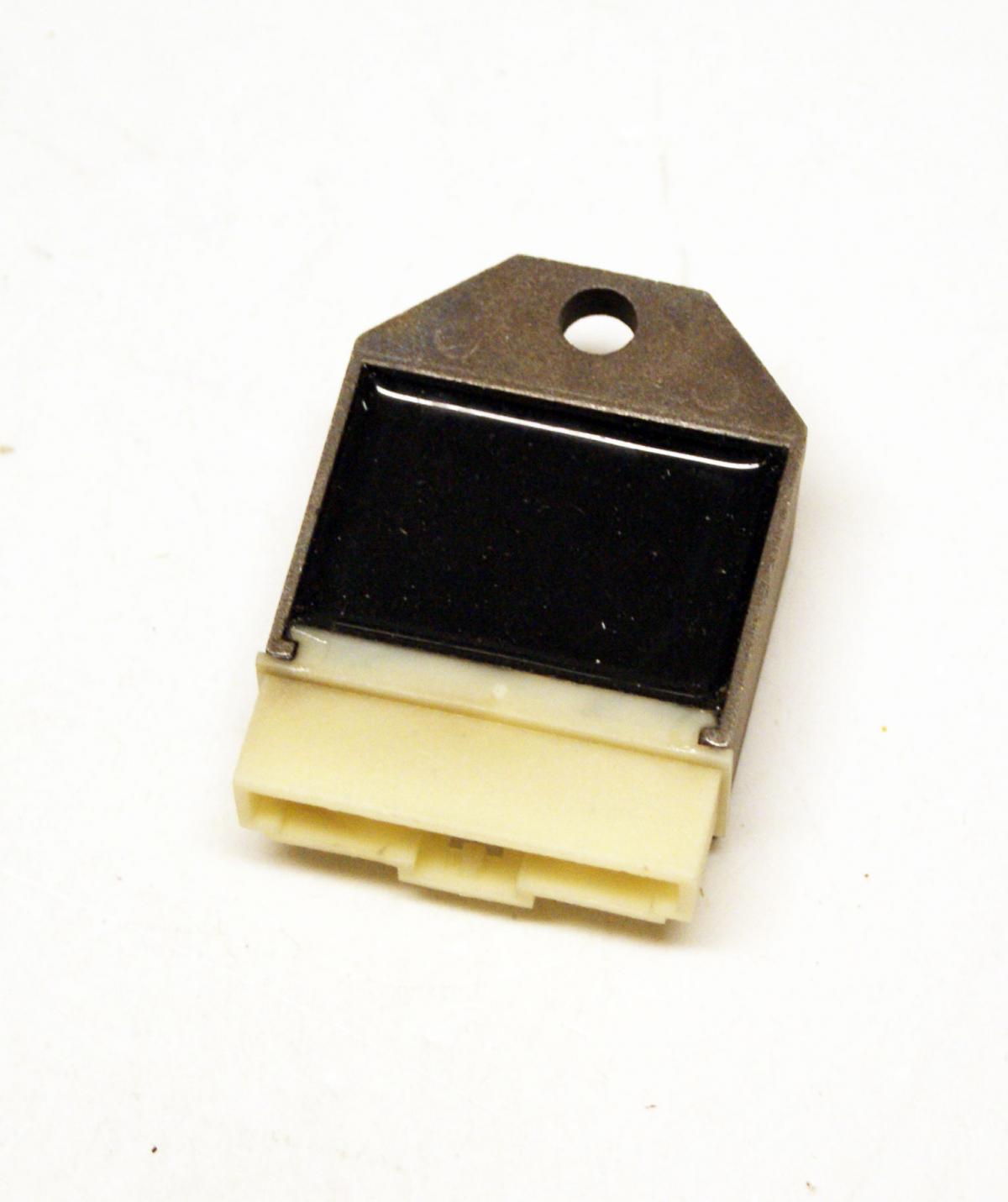

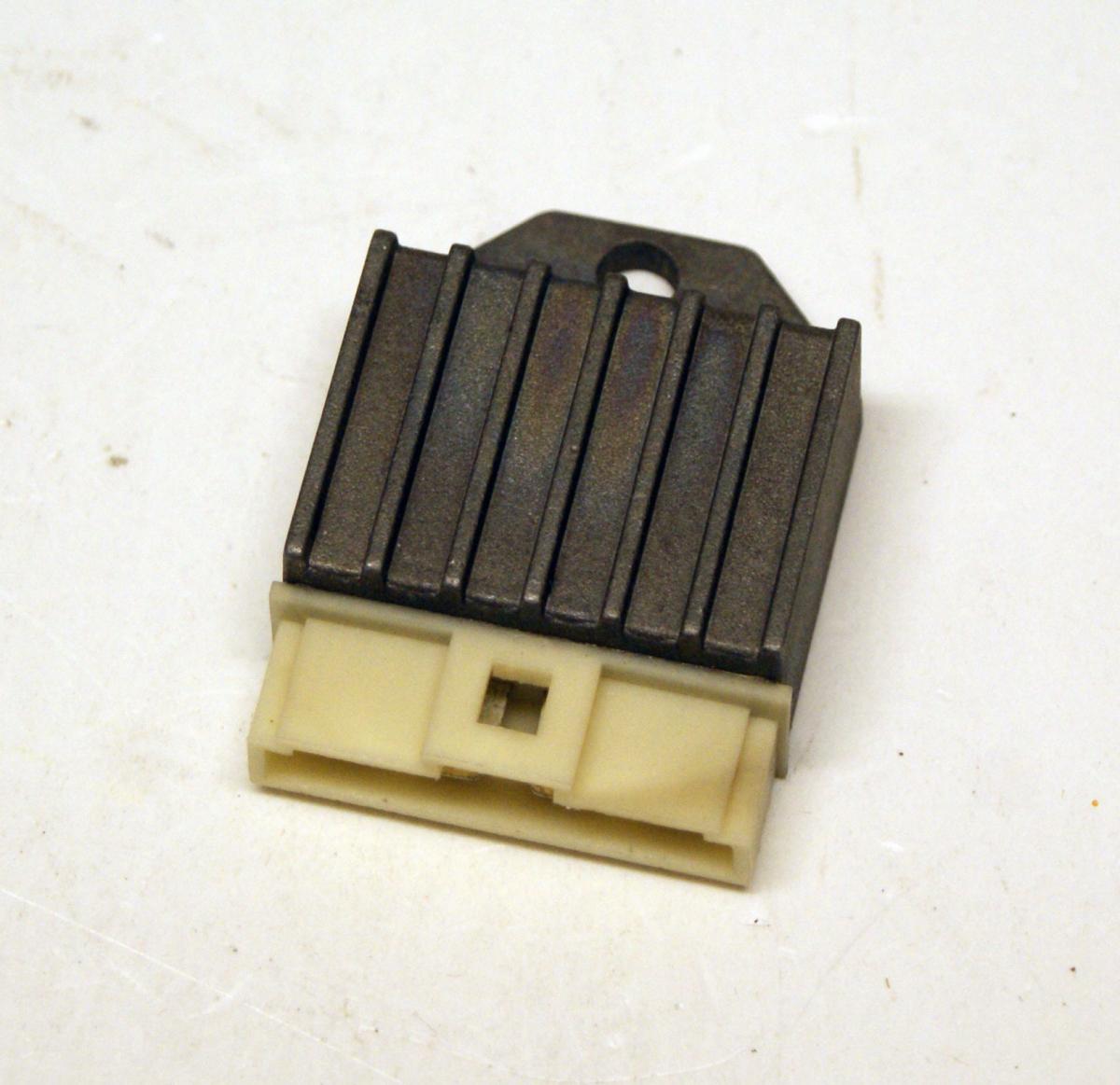

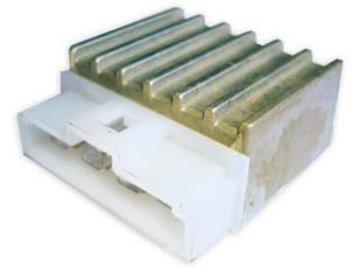

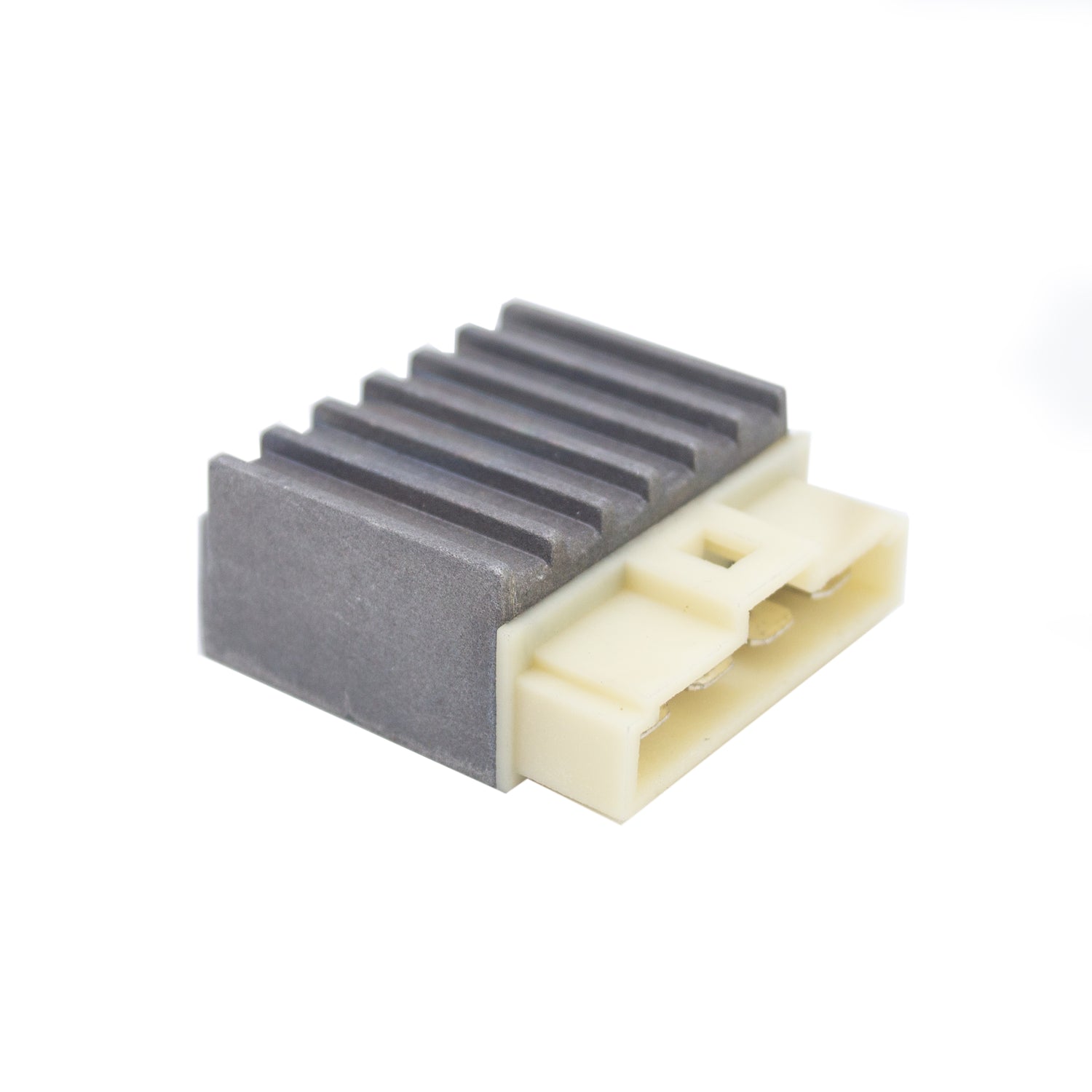

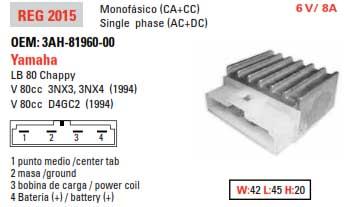

This voltage regulator controls the charging-system output supplied to the electrical circuits on the Yamaha 80 cc models listed below. It is intended as a replacement for the original regulator. The supplied product information conflicts on voltage, so the voltage rating should be confirmed before fitting.

Features

• Direct replacement for the original regulator.

Specifications

• Current rating: 8 A.
• Input: single-phase.
• Technology: SCR.
• Output: AC and DC.
• Dimensions (height × width × length): 20 × 42 × 45 mm.
• Sensor: none.

Cross-Reference OEM Part Numbers

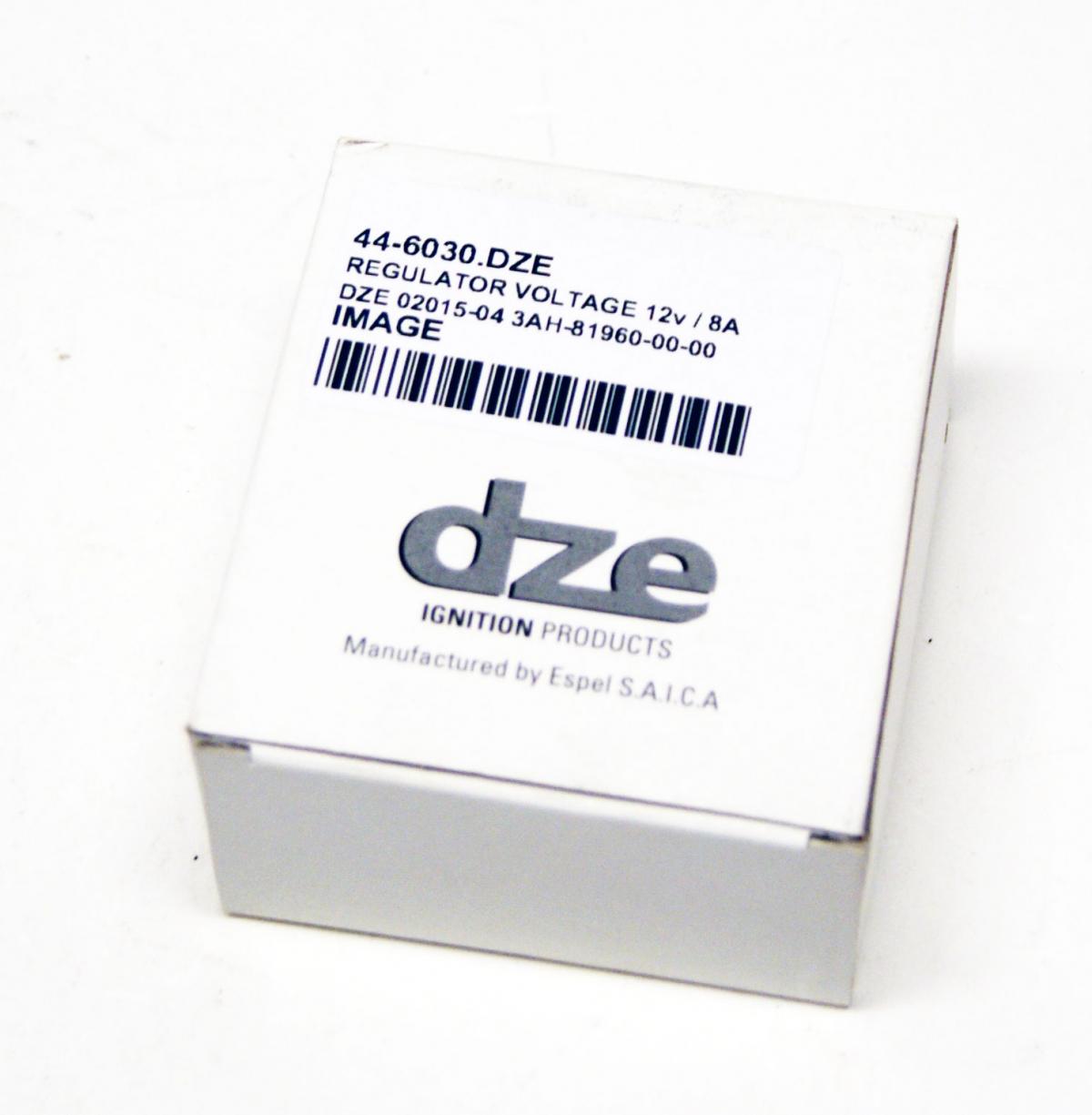

• DZE: 02015-04.
• Yamaha: 3AH-81960-00; 3AH-81960-00-00.

Vehicle Fitments

• Yamaha LB Chappy, 80 cc (year not specified).
• Yamaha V, 80 cc, variant 3NX3 (1994).
• Yamaha V, 80 cc, variant 3NX4 (1994).
• Yamaha V, 80 cc, variant D 4GC2 (1994).
