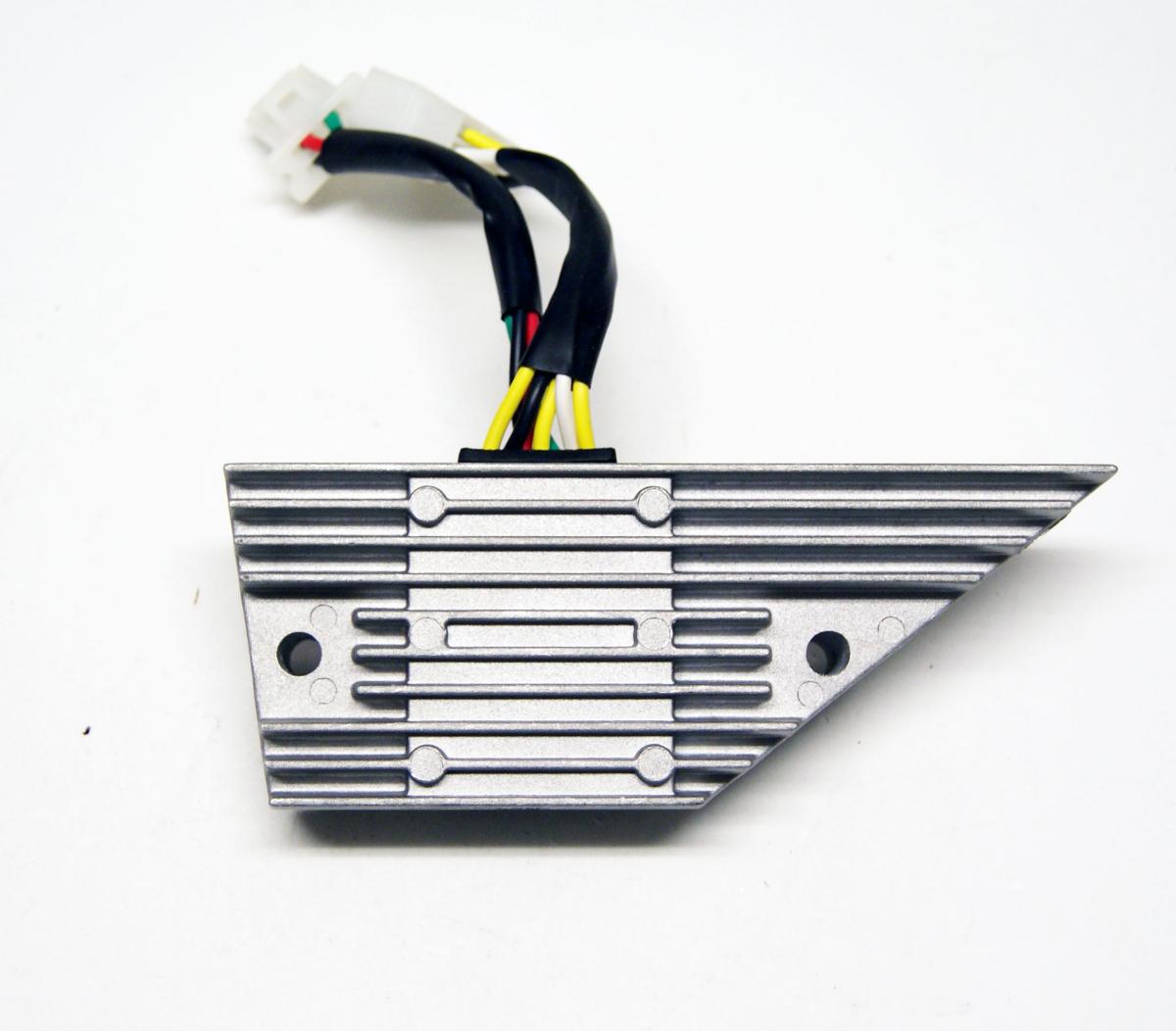

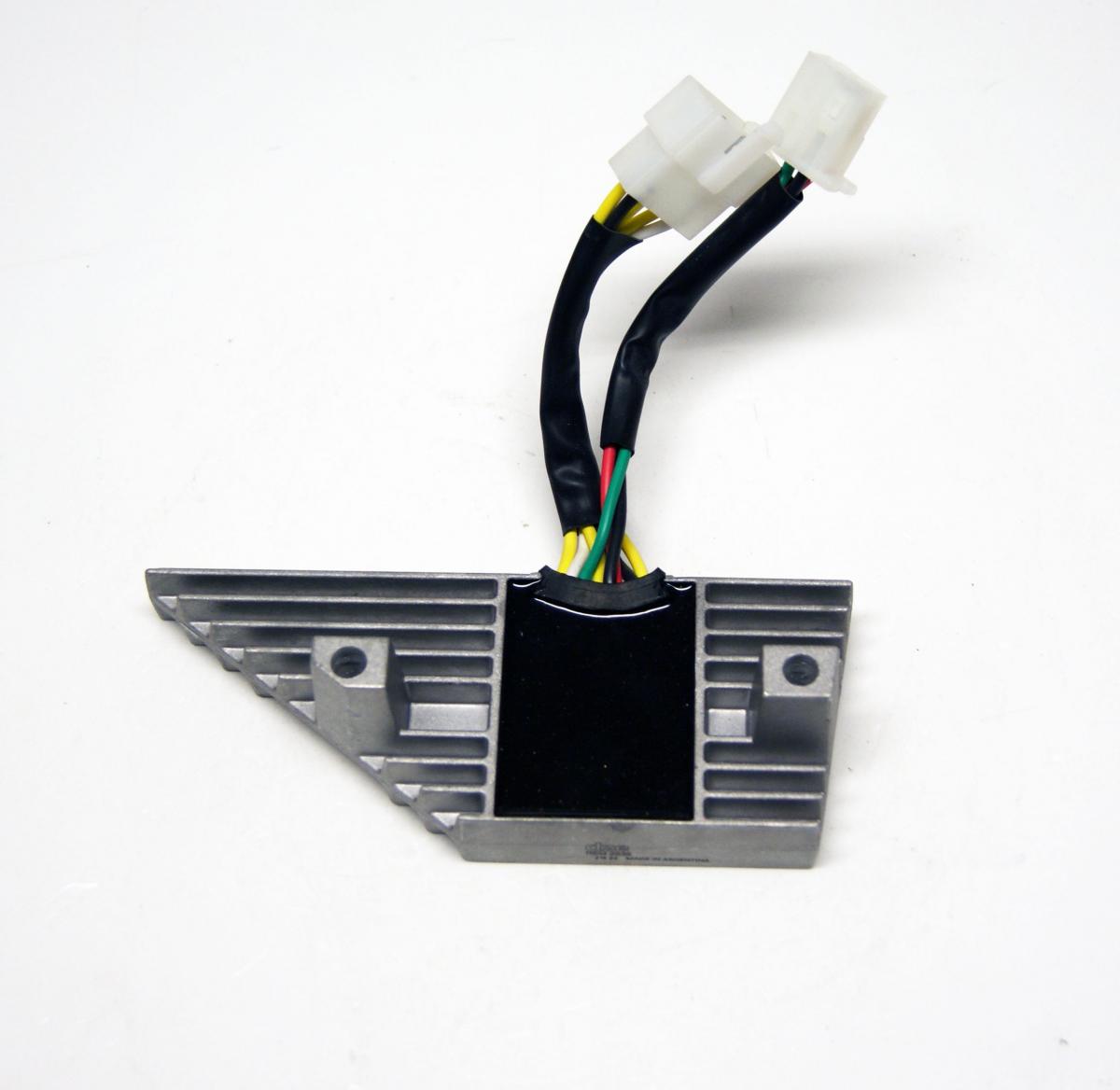

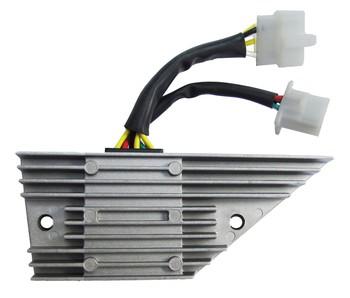

The DZE 12 V regulator is a replacement charging-system component for the listed Honda CB SC Nighthawk motorcycles. It regulates electrical output for the motorcycle’s charging system and is intended as a direct replacement for the corresponding original regulator.

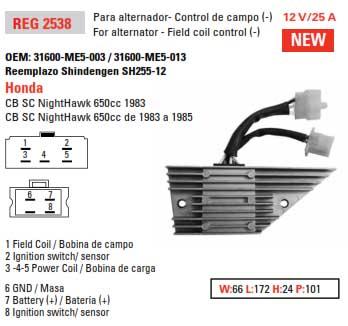

Specifications

• Voltage: 12 V
• Current rating: 25 A
• Input type: three-phase
• Output type: negative field
• Dimensions: 172 mm long × 66 mm wide × 24 mm high
• Mounting-hole pitch: 101 mm

Cross-Reference OEM Part Numbers

• DZE: 02538-04
• Honda: 31600-ME5-003, 31600-ME5-013
• Shindengen: SH255-12

Vehicle Fitments

• Honda CB SC Nighthawk, 650 cc, 1983–1985 — charging regulator
