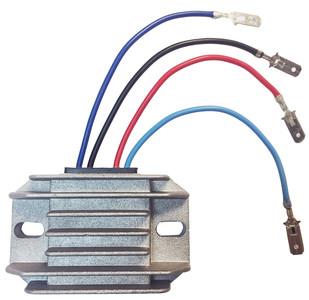

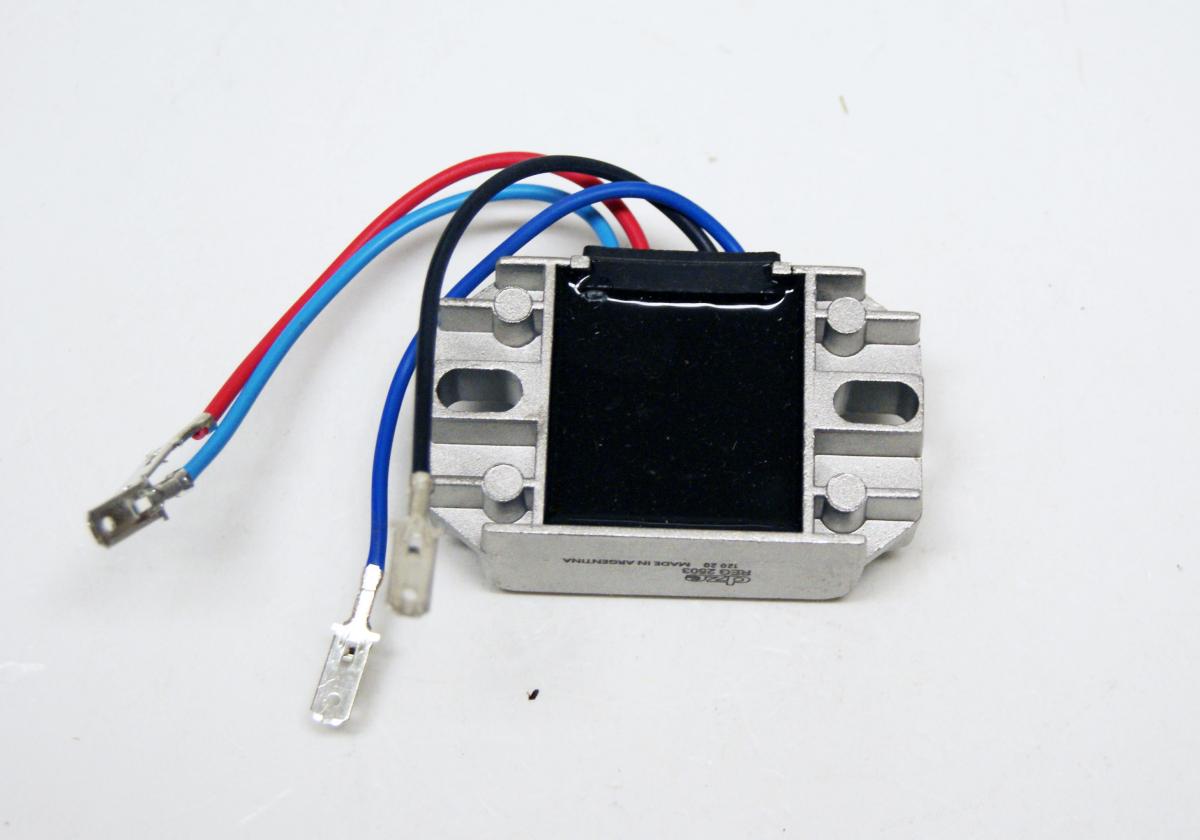

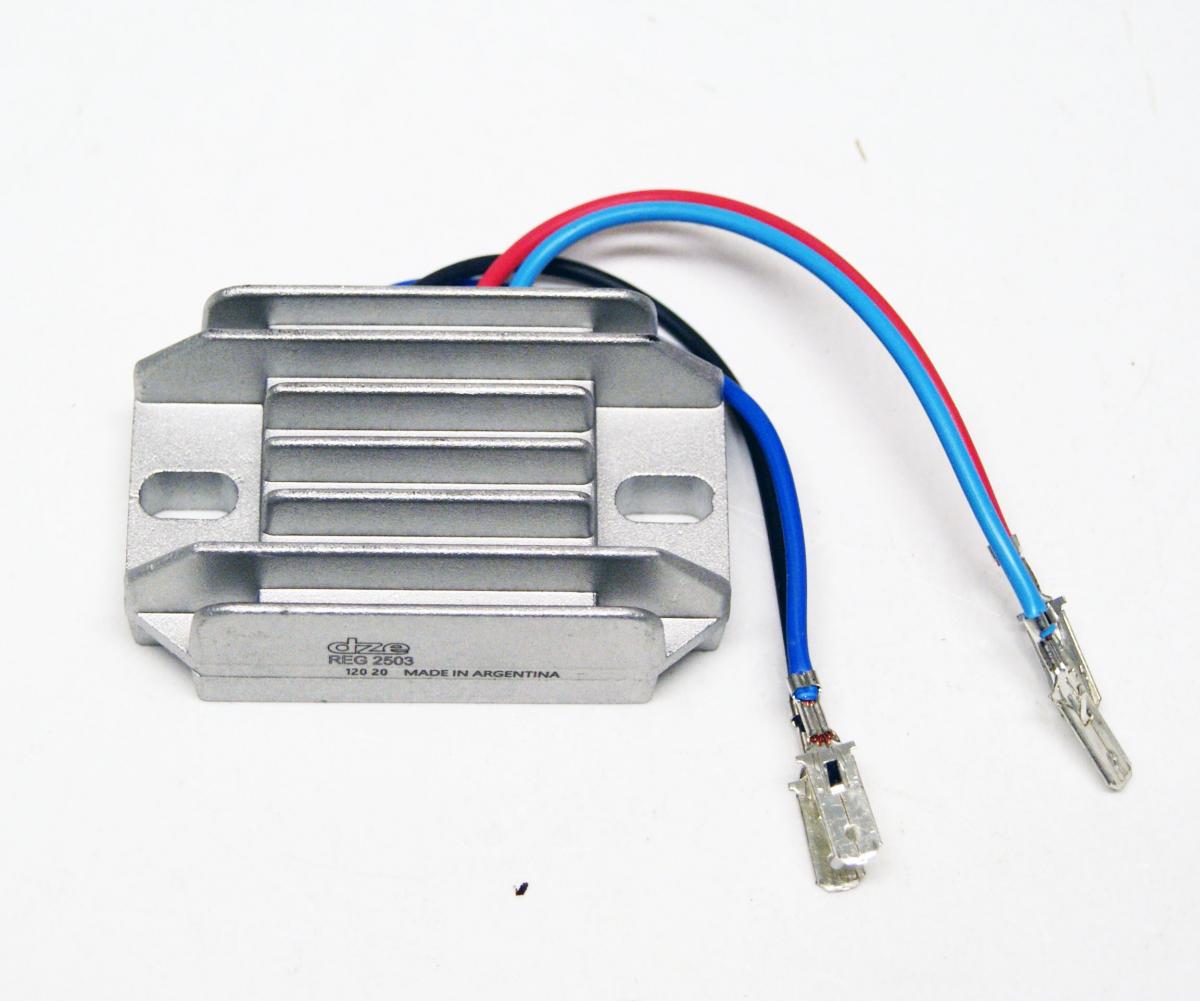

This motorcycle regulator/rectifier regulates charging-system output and converts single-phase alternator input to DC for the electrical system. It is a replacement unit for the Cagiva and Husqvarna 125 cc models listed below.

Features

• Direct replacement for the listed motorcycle applications.

Specifications

• Voltage: 12 V
• Current: 12 A
• Input: single-phase
• Technology: SCR
• Output: DC
• Dimensions: 76 mm long × 47 mm wide × 28 mm high
• Mounting-hole centre spacing: 60 mm
• Sensor: none

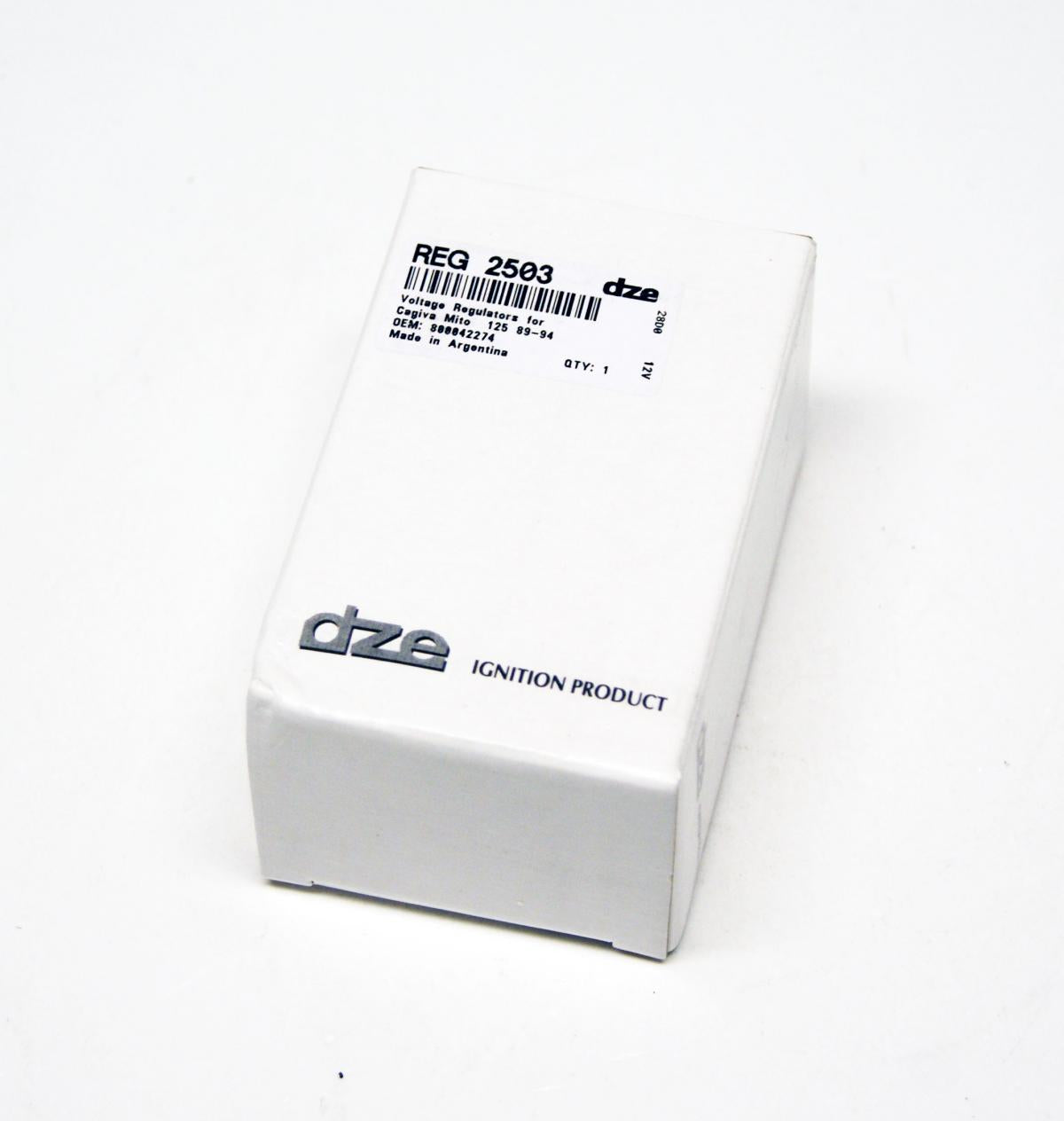

Cross-Reference OEM Part Numbers

• Cagiva OEM: 800042274
• DZE: 02503-04, REG 2503

Vehicle Fitments

• Cagiva Freccia C9 / C10 / C12 125: 1982–1992
• Cagiva K7 125: 1989–1993
• Cagiva Mito 125: 1989–1994
• Cagiva Mito Evolution 125: 1994–2007
• Cagiva Mito SP 525 125: 2007–2008
• Cagiva Mito R 125: 1994–1997
• Cagiva N 90 125: 1987–1997
• Cagiva Planet 125: 1996–2005
• Cagiva Raptor 125: 2003–2005
• Cagiva Roadster 125: 1994–2000
• Cagiva Supercity 125: 1991–2000
• Cagiva W8 125: 1991–2000
• Cagiva WRE 125: 1994–2002
• Husqvarna SM 2T S 125: 1998–2006
• Husqvarna WRE 2T 125: 1993–2006
