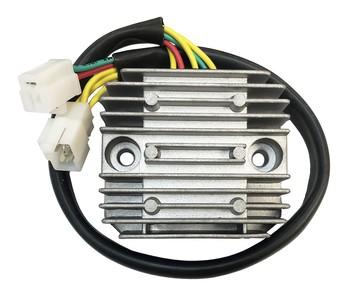

This regulator/rectifier is a replacement charging-system component for the Honda NX500 and NX650 Dominator. It converts alternator output to direct current and regulates the voltage supplied to the motorcycle’s electrical system and battery.

Features

• Replacement for the original regulator/rectifier
• Factory-tested

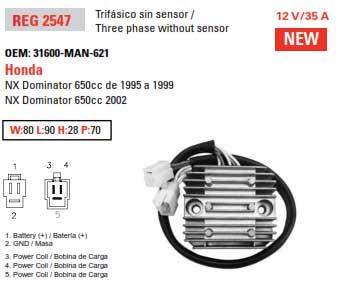

Specifications

• Voltage: 12 V
• Current: 35 A
• Three-phase input
• SCR technology
• DC output
• Height: 28 mm
• Width: 80 mm
• Length: 90 mm
• Mounting-hole pitch: 67 mm
• Sensor: None

Cross-Reference OEM Part Numbers

• 31600-MAN-621
• ESP2547
• 02547-04
• 44-9944.DZE

Vehicle Fitments

• Honda NX500 Dominator, 500 cc: 1995–1999
• Honda NX650 Dominator, 650 cc: 1995–2000
