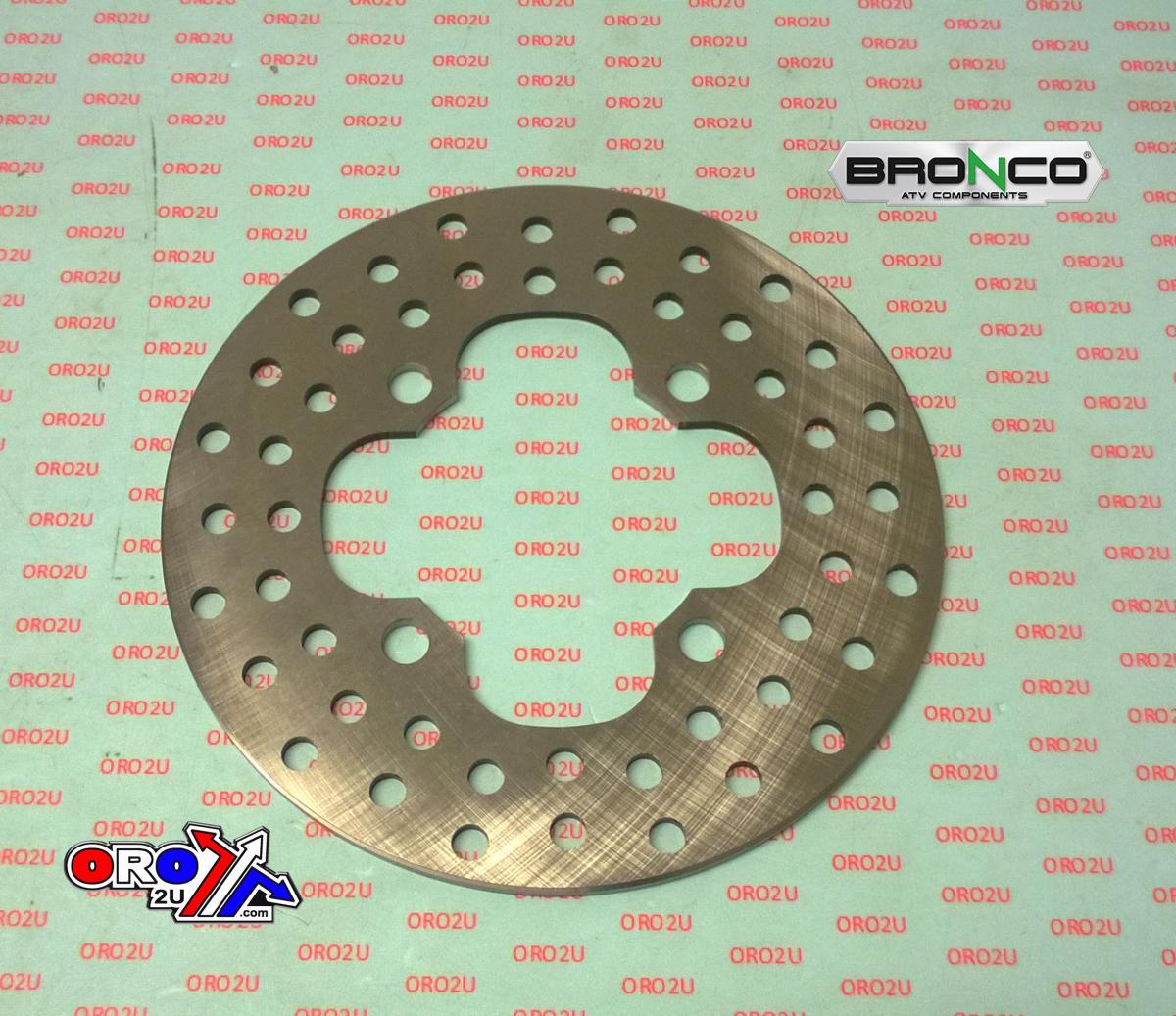

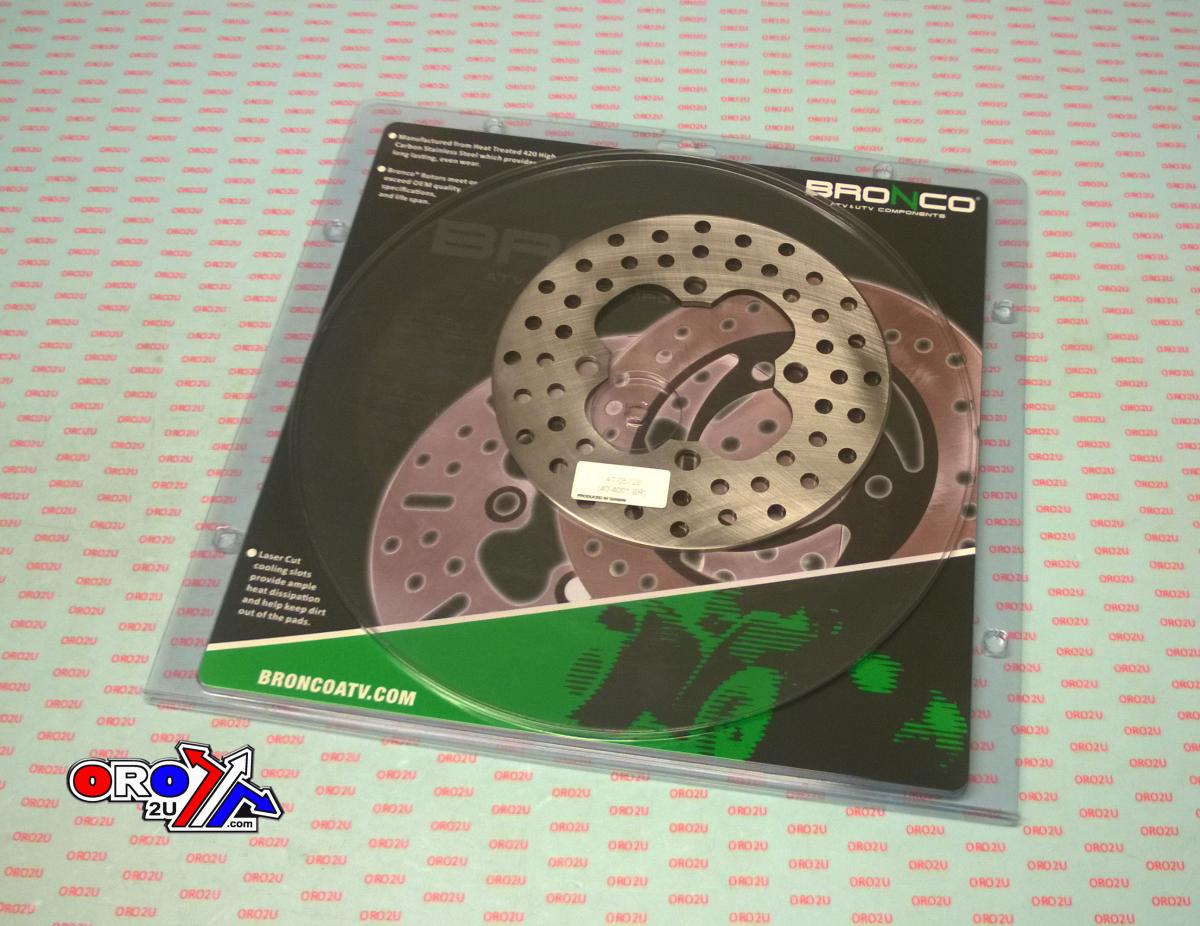

This Front Disc Brake Rotor for ATVs and Quads is a high-quality replacement designed for Honda models. Made from heat-treated SUS420 stainless steel, it offers durability, corrosion resistance, and excellent heat dissipation. Its lightweight and robust construction ensures reliable braking performance and compatibility with any type of brake pad.

Features:

• Constructed from tempered SUS420 stainless steel for strength and corrosion resistance.
• Heat-treated for superior performance with a hardness of HRC 32–36.
• Lightweight and efficient design to eliminate unwanted heat.
• Works with all types of brake pads.
• Direct OE replacement providing excellent value.

Specifications:

• Inner Diameter (I.D.): 75.2 mm
• Outer Diameter (O.D.): 180.7 mm
• Thickness: 3.9 mm
• Number of Holes: 4
• Hole Diameter: 10.6 mm (straight)
• Pitch Circle Diameter (PCD): 93.8 mm

Cross-Reference OEM Part Numbers:

• EBC MD6387D
• AT-05728
• 45251-HP0-A51

Compatibility:

• Honda TRX500 (All) (2007–2014)
• Honda TRX680 Rincon (2015–2018)

Part Number: 40-4001.BR
