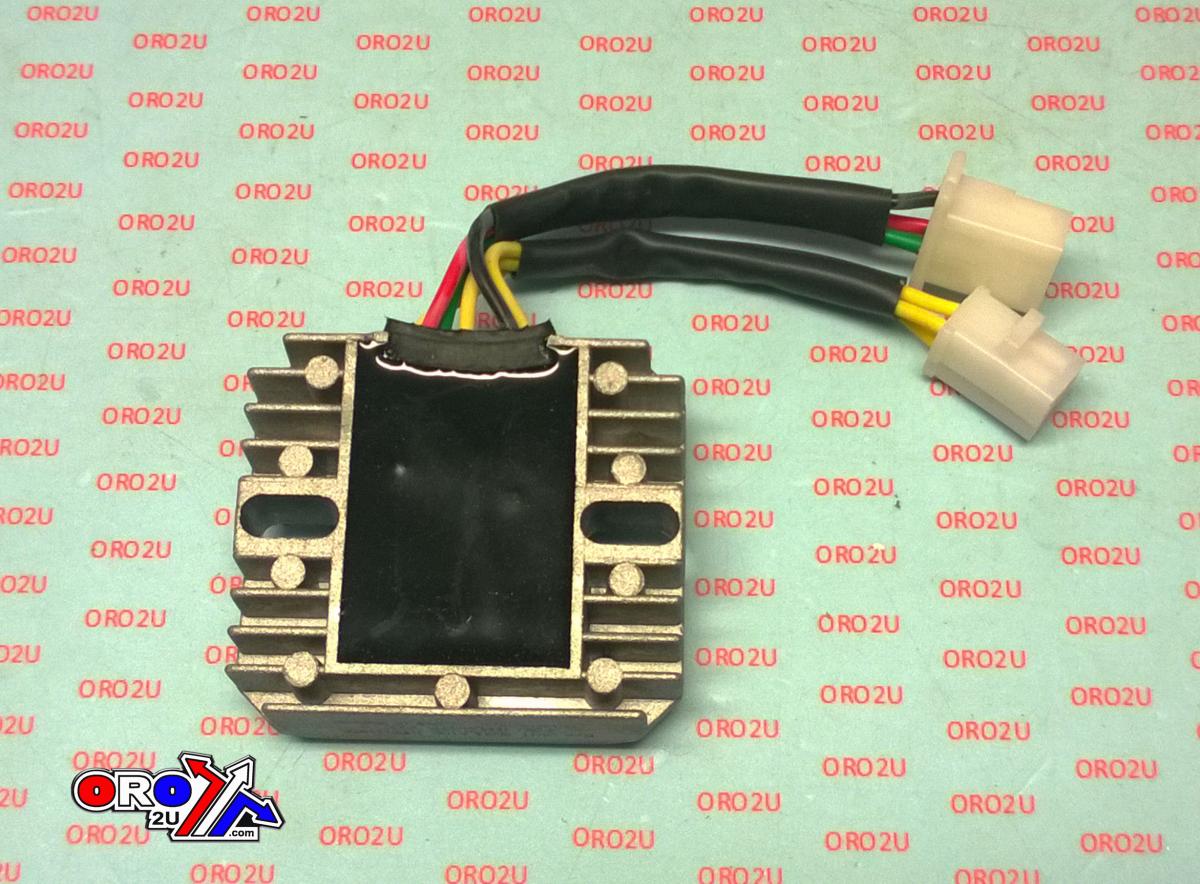

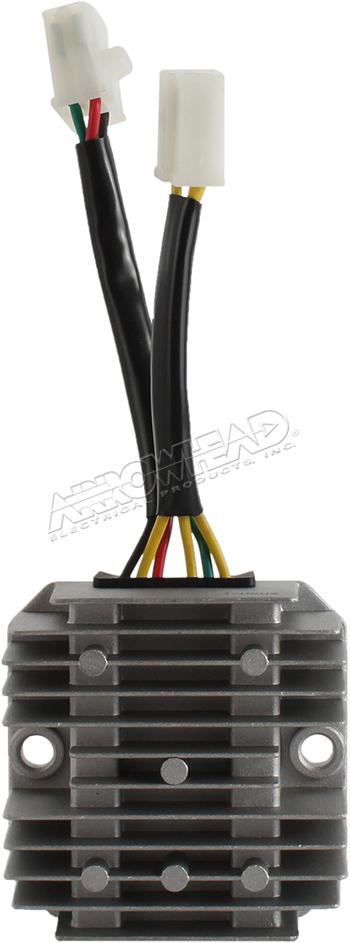

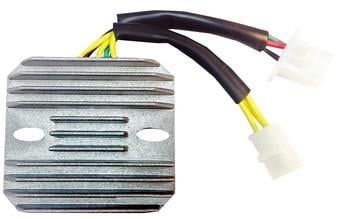

VOLTAGE REGULATOR

Cross Reference Numbers:

• 31600-SZ1-900 (Daelim)
• 31600-KAM1-009 (Kymco)
• 31600-KR3-671
• 31600-KR3-670
• 31600-KR3-690
• 31600-KAS-901
• 31600-KS4-841
• 31600-KM1-008 (Honda)
• 2601800 (Malaguti)
• 495186 (Piaggio)
• 31600-M56-000 (Sym)
• 31600-SZ1-900
• 31600-KS4-841
• 31600-KM1-008
• 31600-KR3-670
• 31600-KR3-671
• 31600-KR3-690
• 31600-KS4-770
• 31600-KAM1-009
• 02601800
• 495186
• SH535A-12
• 31600-M56-000
• 10-026

Specifications:

• Voltage: 12V
• Current: 25A
• Input Type: Three-Phase (TRIFASICO)
• Technology: Silicon Controlled Rectifier (SCR)
• Output Type: Direct Current (DC)
• With Sensor: Yes

Dimensions:

• Height: 28mm
• Width: 70mm
• Length: 80mm
• Pitch: 60mm

FITMENT:

Betamotor:

• Eikon 125cc
• Eikon 150cc

Daelim:

• S2 250cc

Honda:

• CH A / AC 250cc (1985-1988)
• CH A / AC 150cc (1985-1986)
• CH A / AC 150cc (1985-1986)
• CH A / AC 250cc (1985-1988)
• CMX C 250cc (1985-1986)
• CMX C 250cc (1985-1987)
• CMX C 250cc (1985-2000)
• CN A / AC 250cc (1987)
• CN A 250cc (1992-2001)
• CN A 250cc (1992-2001)
• CN A 250cc (1997)

Kymco:

• Bet and Win 250cc
• Bet and Win 125cc
• Dink 250cc
• Dink 125cc
• Heroism 150cc
• Heroism 125cc
• People S 200cc
• People S 250cc
• X-Citing 250cc
• Yup 250cc

Malaguti:

• F18 Warrior 150cc
• F18 Warrior 125cc

Piaggio:

• GTX Hexagon GT 250cc
• Reemplazo Shindengen

Sym:

• Joy Ride 200cc
• Joy Ride 125cc
• Super Duke 150cc
