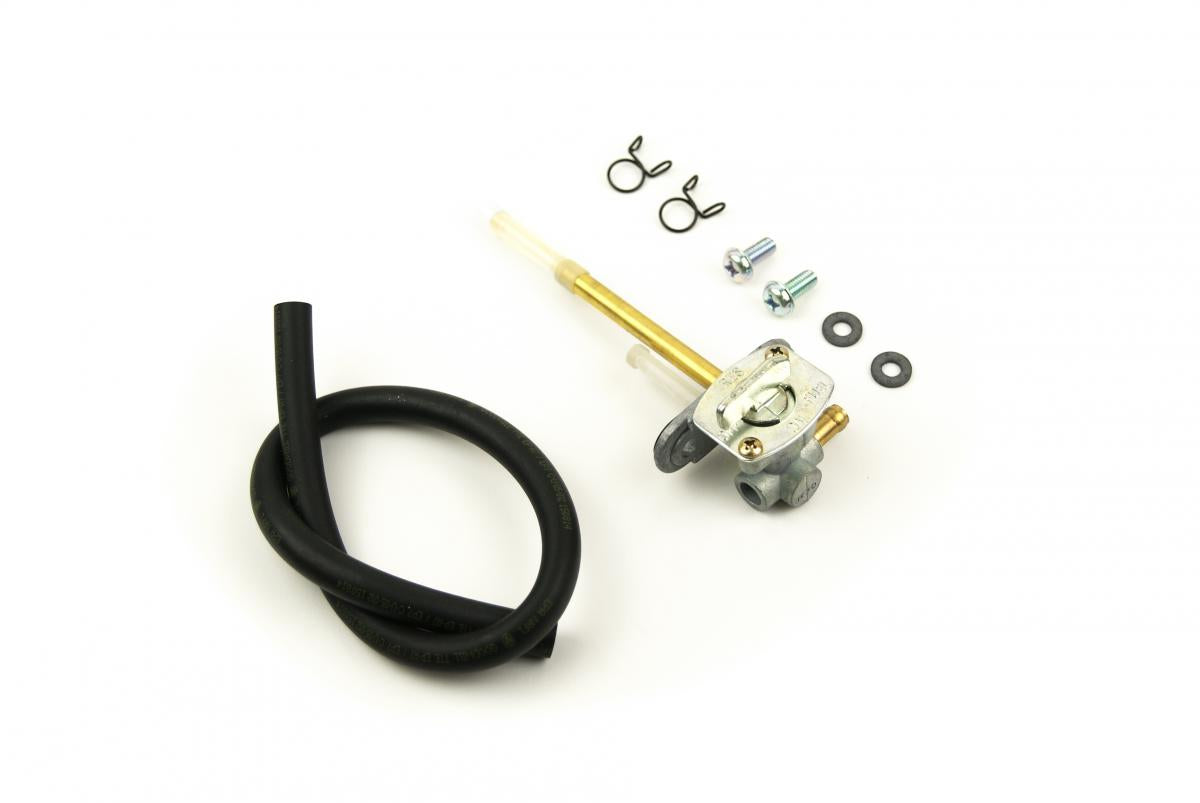

The FS101-0055 Fuel Star Fuel Valve Kit is a complete replacement petcock assembly designed for Yamaha YFB250 Timberwolf ATVs from 1992 to 1994, including both 2WD and select 4x4 models. This kit includes all necessary components for a direct installation and matches OEM specifications.

Features

• Complete replacement fuel petcock assembly

• Sold each

Specifications

• (1) Fuel petcock with o-ring gasket

• (2) Wire hose clamps

• (2) 6mm-1.00 x 14mm flange head bolts

• (2) 6mm crush washers

• (1) 16 in. black rubber fuel line

Cross-Reference OEM Part Numbers

• 3JN-24500-00-00 (Fuel Cock Assy)

• 3JN-24500-10-00 (Fuel Cock Assy)

• 3AJ-24534-00-00 (Seal, Cock)

• 3AJ-24534-01-00 (Seal, Cock)

• 98580-03008-00 (Screw, Pan Head)

• 4X8-24512-00-00 (O-Ring)

• 90202-05187-00 (Washer, Plate)

• 90149-06011-00 (Screw)

• 90445-110F2-00 (Hose, L155)

• 90445-116K9-00 (Hose, L155)

• 90467-10008-00 (Clip)

• 90467-100A1-00 (Clip)

Vehicle Fitments

• 1992 Yamaha YFB250 Timberwolf 2WD

• 1993 Yamaha YFB250 Timberwolf 2WD

• 1994 Yamaha YFB250 Timberwolf 2WD

• 1994 Yamaha YFB250FW Timberwolf 4x4
