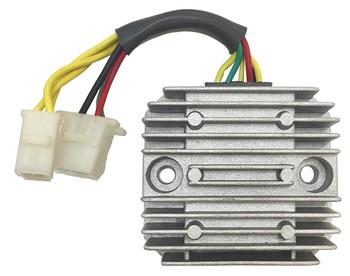

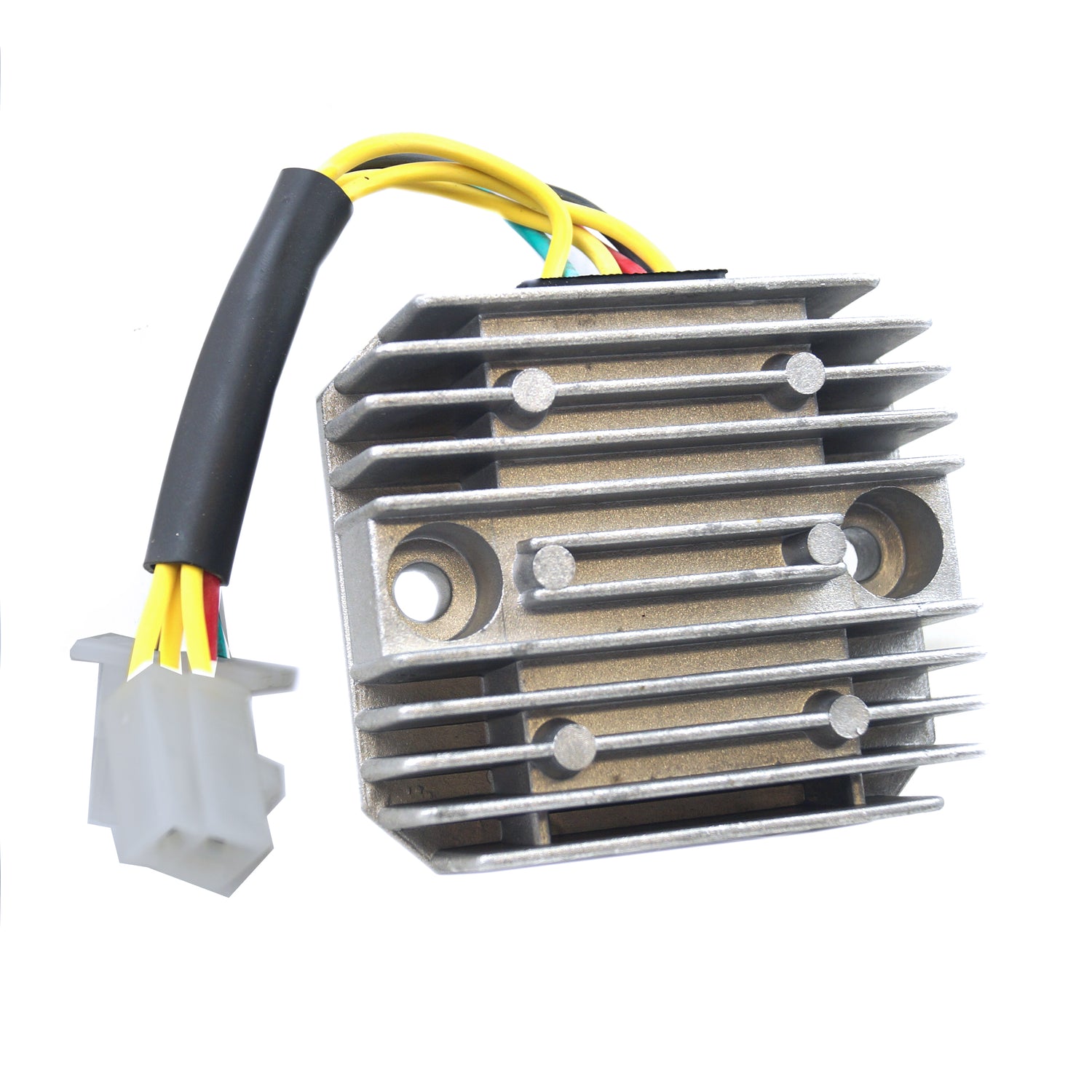

This regulator rectifier is a replacement charging-system component for the Honda motorcycles listed below. It rectifies the generator’s alternating current and regulates voltage for the motorcycle’s electrical system and battery charging.

Features

• Fits the original mounting locations.
• Designed to accommodate increased electrical loads.

Specifications

• Dimensions: 90 × 80 × 28 mm (L × W × H)
• Mounting-hole spacing: 66.8 mm

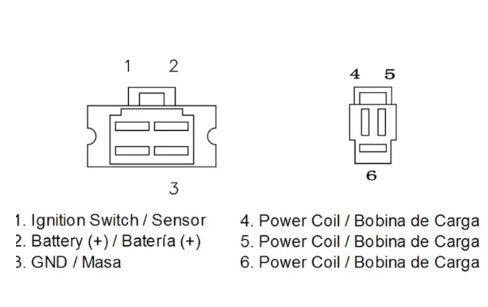

• Three-phase configuration with sensor

Cross-Reference OEM Part Numbers

• Honda: 31600-413-008, 31600-KC1-000, 31600-KE8-000, 31600-KEN-A51, 31600-KFR-841, 31600-KJ9-000, 31600-KN8-730, 31600-KR3-670, 31600-KR3-671, 31600-KR3-690, 31600-KR3-980, 31600-KV8-681, 31600-MC7-000, 31600-MC9-740, 31600-ML4-000, 31600-MM2-000, 31600-MM2-405, 31600-MM2-770
• Ricks: 10-109
• Other references: DZE 2056, RE-005, AHA6013, Shindengen SH532-12

Vehicle Fitments

• Honda CB400A Hawk Hondamatic: 1978
• Honda CB400T Hawk I: 1978–1979
• Honda CB400T Hawk II: 1978–1979
• Honda CB400T Hawk: 1980–1981
• Honda CB450SC Nighthawk: 1982–1986
• Honda CB450T Hawk: 1982
• Honda CH150: 1987
• Honda CM200T Twinstar: 1981
• Honda CM200TC Twinstar: 1982
• Honda CM400: 1979–1981
• Honda CM400A: 1979–1981
• Honda CM400C Custom: 1981
• Honda CM400E: 1980–1981
• Honda CM400T: 1979–1981
• Honda CM450: 1982–1983
• Honda FT500: 1982–1983
• Honda GB500: 1989–1990
• Honda XBR500: 1985–1988
