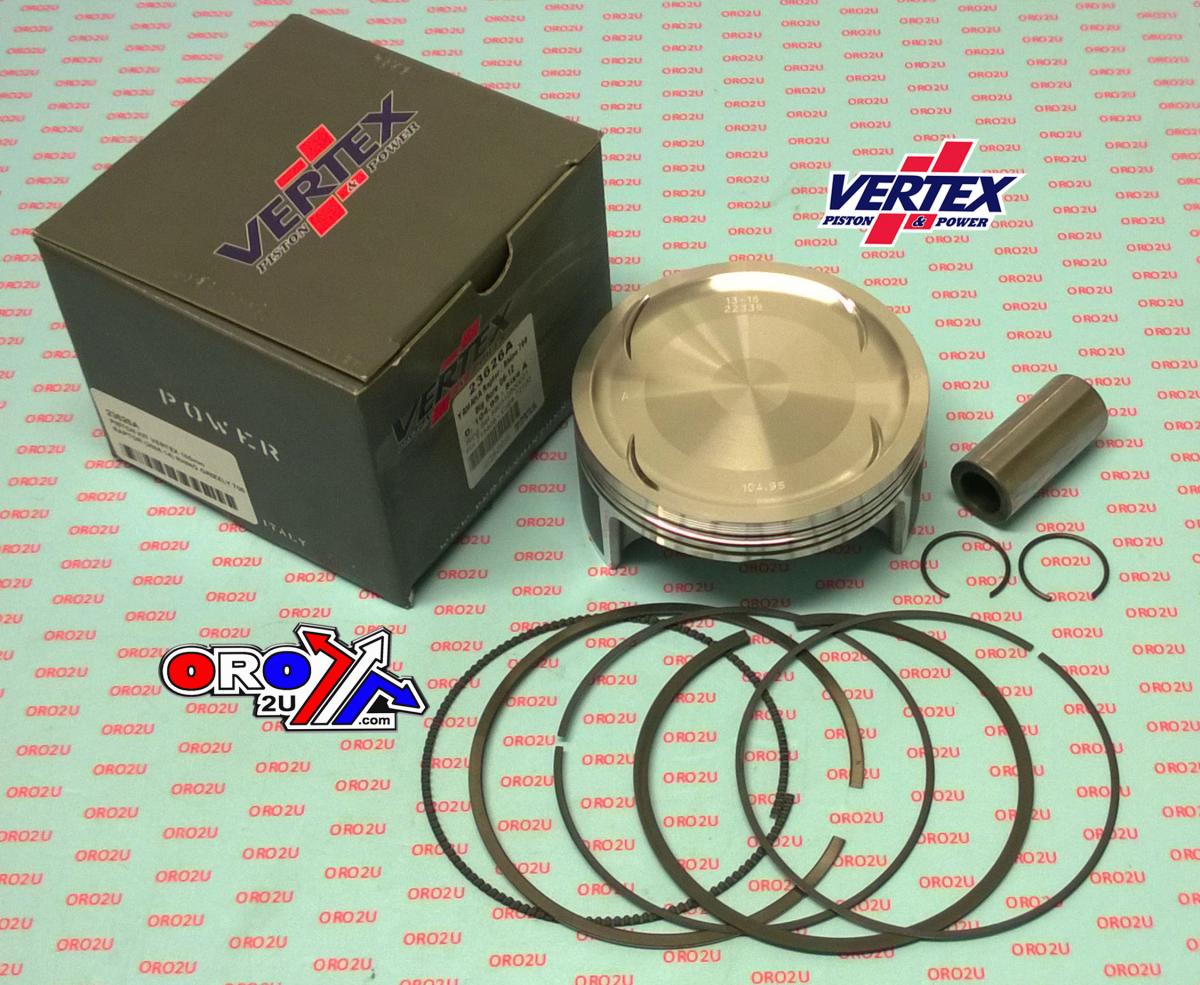

VERTEX UK PISTON KIT         23626A           Compr 9.20:1     (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATIONS

• BORE SIZE.   105.00mm BIG BORE +3.00mm [A   104.95mm]

Replacement Parts.

• Rings.   590310500001
• Pin.   715408
• Clips. 72100

Cross reference numbers ONLY.

• Piston (Std) 1S3-11631-10-00
• Ring Set (Std) 1S3-11603-10-00
• Pin, Piston 5VK-11633-00-00
• Circlip 93450-24154-00

MODEL FITMENT

• YAMAHA 700 RAPTOR 2006-2014 BIG BORE COMPR 9,2:1
• YAMAHA 700 RHINO 2006-2013 BIG BORE COMPR 9,2:1
• YAMAHA 700 GRIZZLY 2006-2013 BIG BORE COMPR 9,2:1
