The Wossner 8932DC piston kit is a forged, high-performance component engineered for Kawasaki KXF250 engines. Featuring a 77.00mm standard bore with a measured diameter of 76.98mm, this +0.02mm size variant provides a 14:1 compression ratio. Built in Germany for reliability under extreme conditions, its elliptical design ensures uniform stress distribution and superior heat management.

Features

• Forged construction for strength and durability

• 14:1 compression ratio for enhanced performance

• Engineered for effective combustion chamber heat transfer to cylinder walls

• Elliptical design promotes uniform expansion and prevents piston collapse

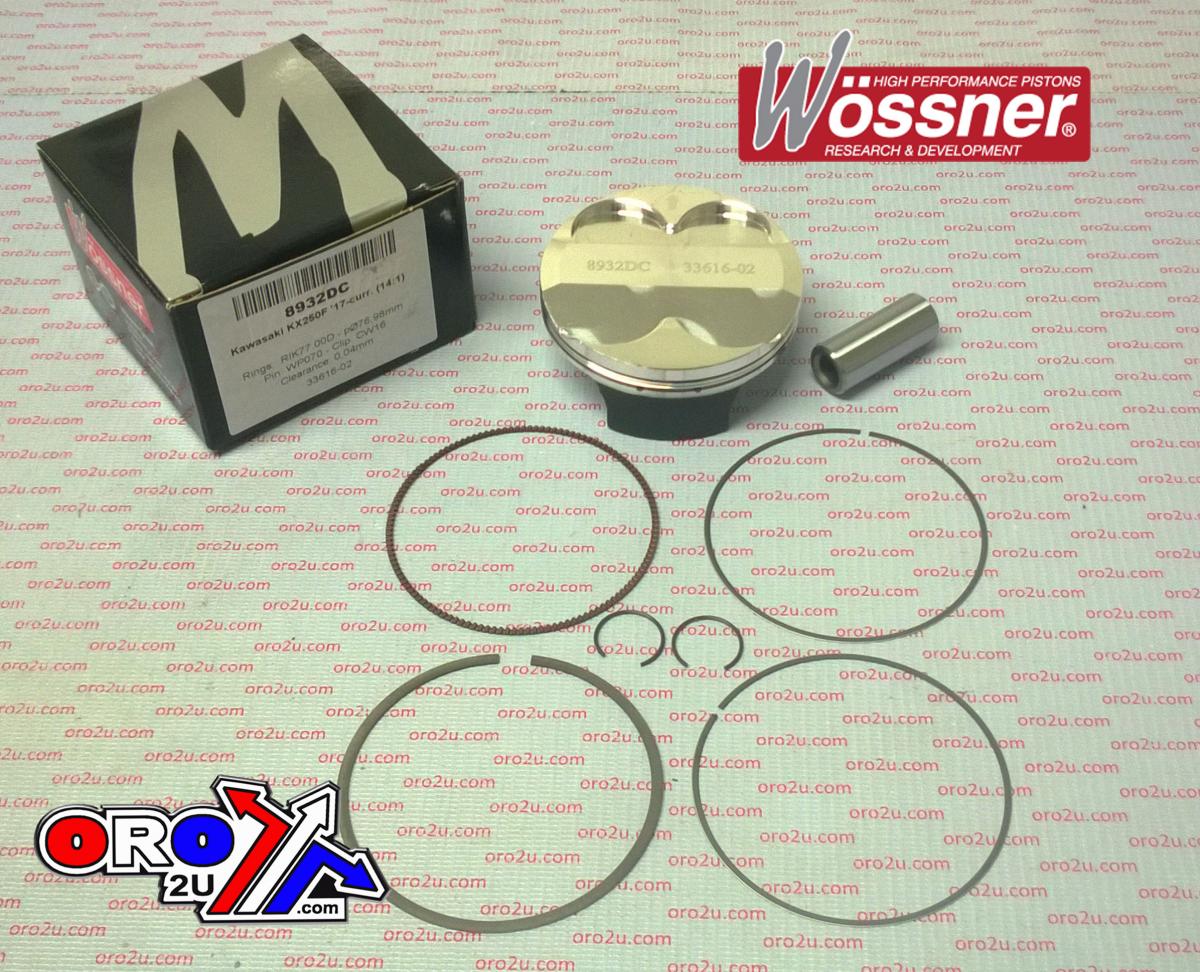

• Includes piston, ring set (RIK77.00D), pin (WP070), and circlips (CW16)

Specifications

• Bore: 77.00mm (STD)

• Diameter: 76.98mm

• Sizing: C (+0.02mm)

• Compression Ratio: 14:1

• Wossner Part Number: 8932DC

• Kit Part Number: 56-W9952.C.WO

• Made in Germany

Cross-Reference OEM Part Numbers

• PISTON-ENGINEV: 13001-0785

• PIN-PISTON: 13002-0048

• RING-SET-PISTON: 13008-0028

• RING-SNAP, PISTON PIN: 92033-1161

• RIK77.00D

• WP070

• CW16

Vehicle Fitments

• Kawasaki KXF250 2017 - 2018

• Kawasaki KX250F 2017
