Piston kit 76mm Bore 75.96 Wossner SET/3 K8700D660-4 (+2.60mm)

Compatibility:

• SUZUKI GSXR1000 2005-2008

Features:

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.
• Part No.: 56-W9893.260.WO
• Additional Information: PISTON KIT SET/4 WOSSNER K8700D160-4 O/S +2.60mm 75.96mm.

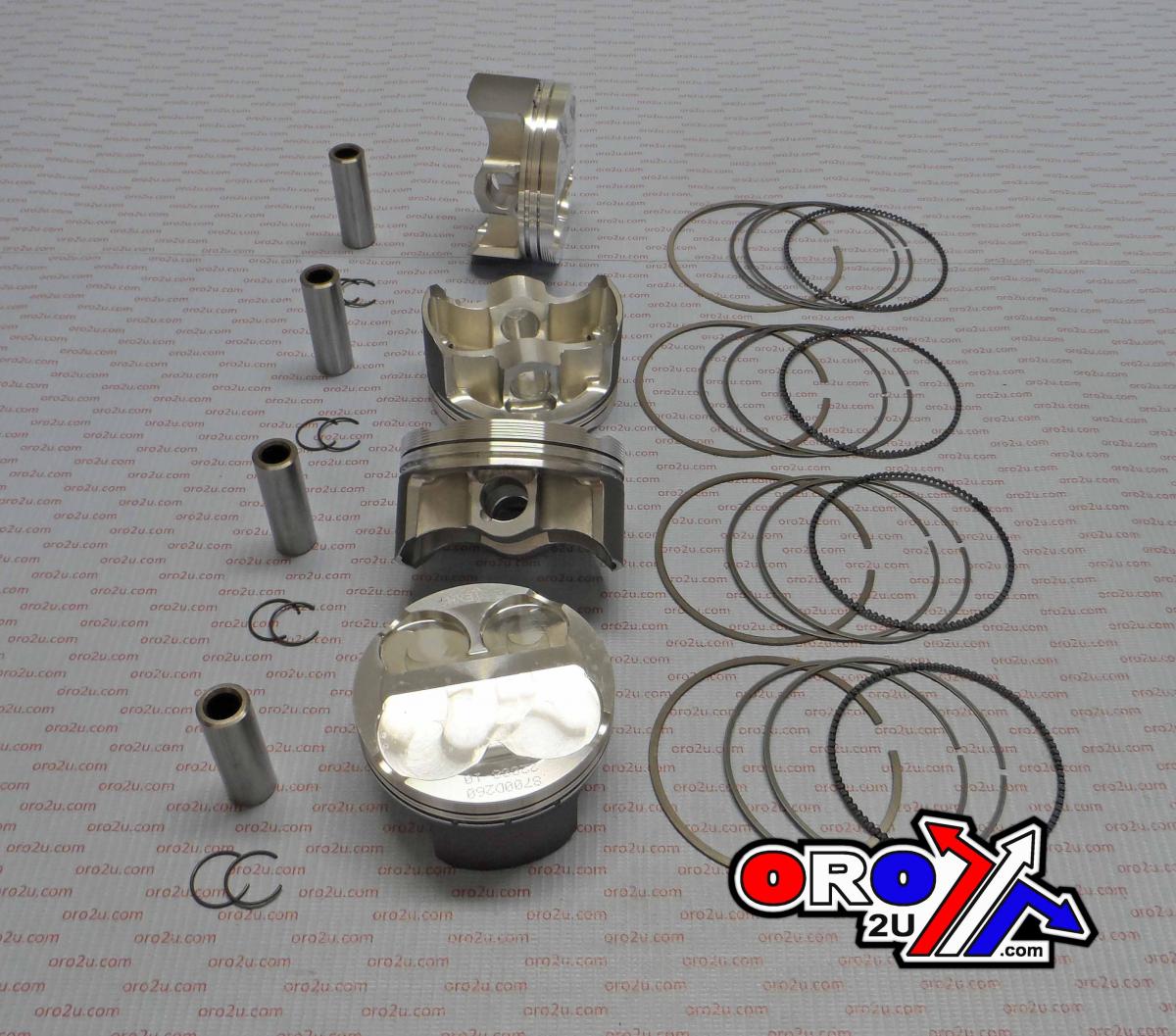

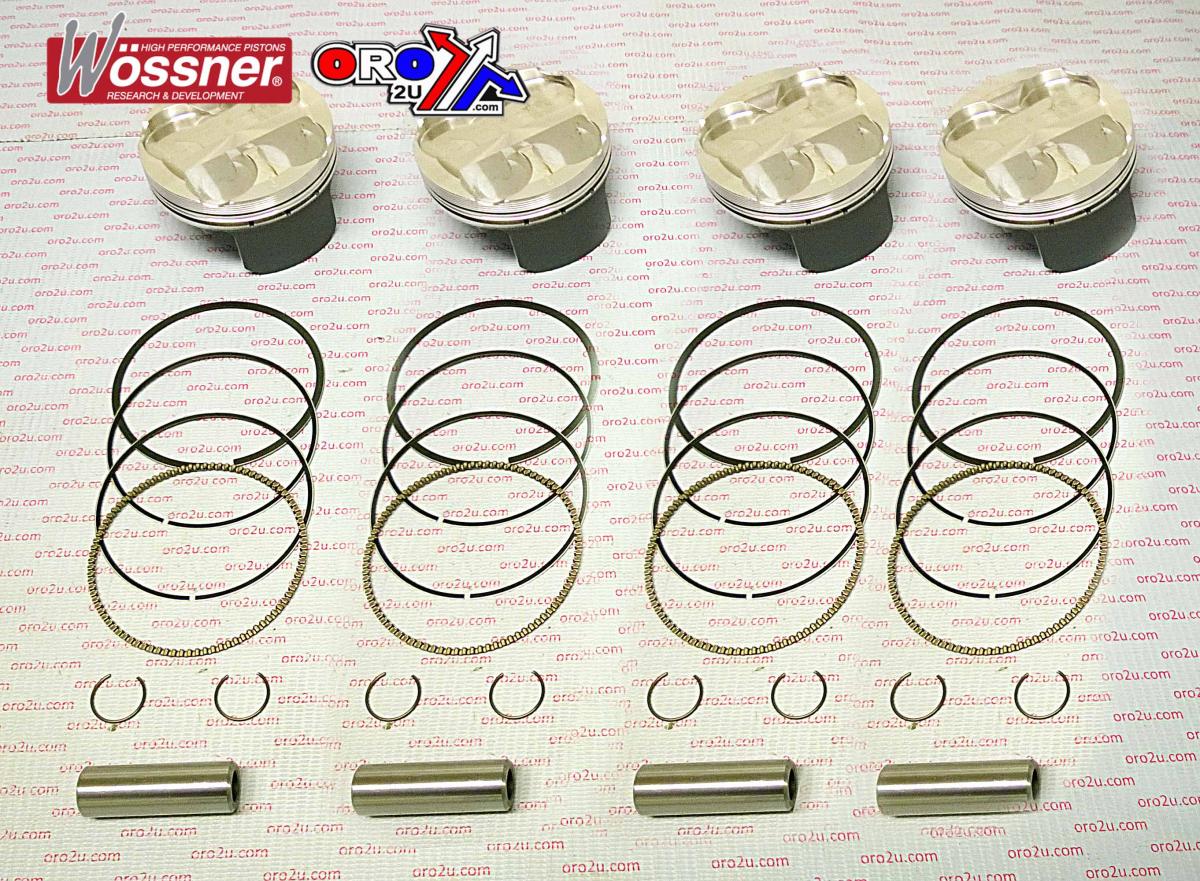

Included Components:

• CLIP No. CW15
• PIN No. WP011
• RINGS No. RIK76.00L

Specifications:

• Displacement (cm3): 988 / 1024 / 1070
• Hub Stroke (mm): 59.00
• Clearance (mm): 0.04
• Wossner Compression Ratio: Display (cm3) 998 - 14.00:1 Display (cm3) 1024 - 14.60:1 Display (cm3) 1070 - 14.90:1
• OEM Compression Ratio: 12.50:1
• Dome Volume (cm3): -4.40
• Compression Height (mm): 22.55

Additional Notes:

• Unmatched reliability and performance from high-tech materials.
• Manufactured to exacting standards so the engine can be rebuilt with total confidence.
• Meets or exceeds OEM quality.
• Direct OEM replacement.
• Please see image before ordering to avoid mistakes.
• Best value for money.
• ORO products are a high-quality replacement part and carry our guarantee of your satisfaction.
• Easy to install but if unsure, please use a professional.
