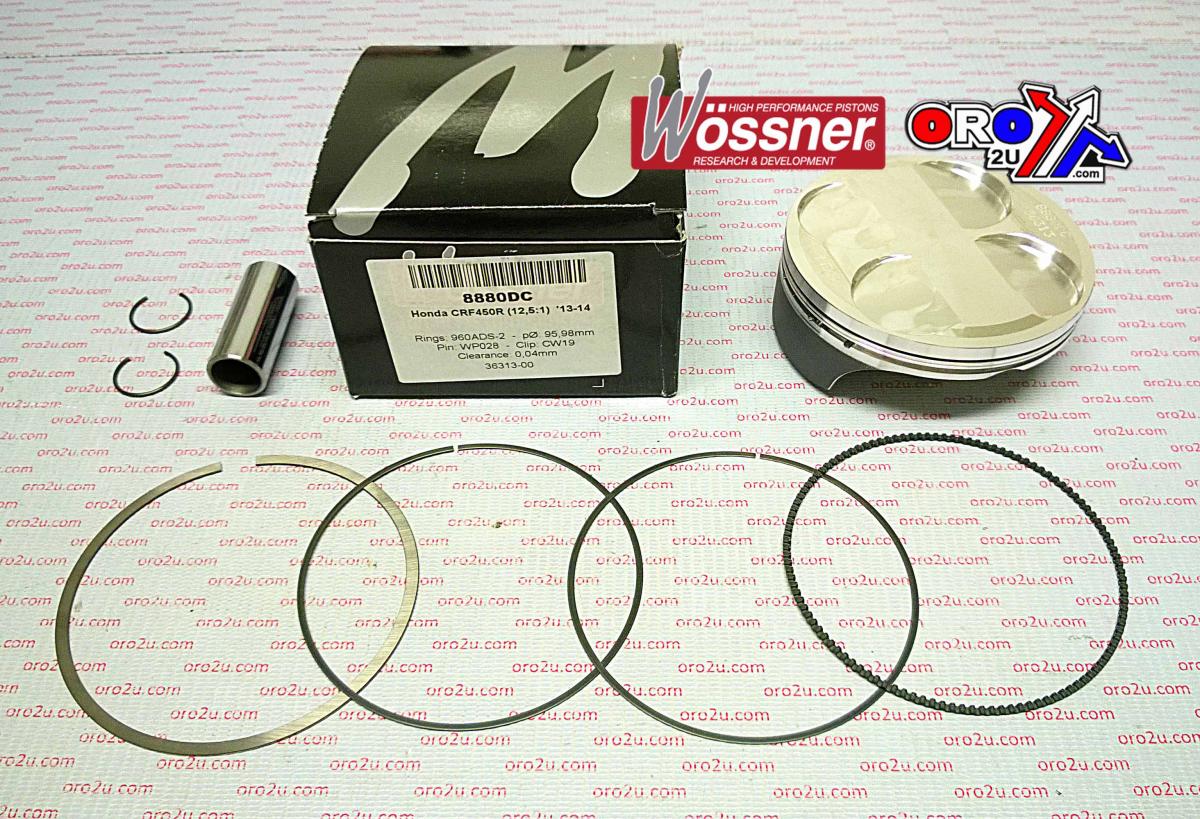

Piston kit 96mm BORE 95.96 Wossner  8881DA (STD)

HONDA
CRF450 2013 - 2014,
(High compression) (2 rings)

• Wossner forged pistons are superior in strength and design.
• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
• Made in Germany.

Part No. 56-W916.A.WO.HC Honda CRF450R 2013 - 2014,

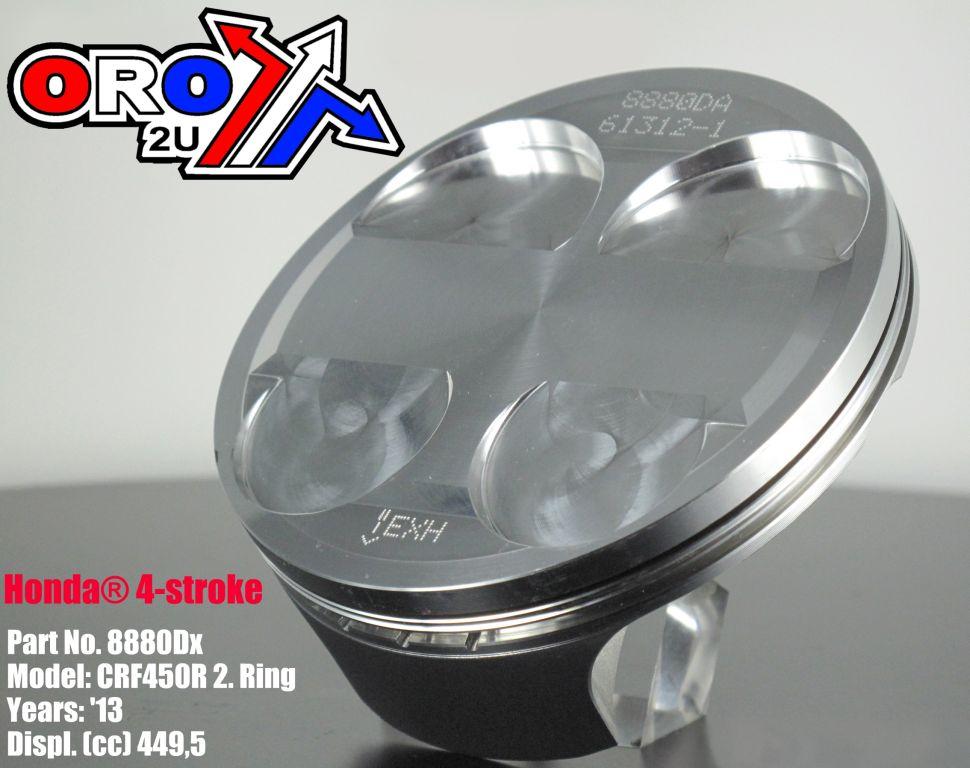

Wossner Piston 96 mm Bore (PN# 8881DA)
Clips P/N CW19
Pin P/N WP028
Ring Set P/N 960ADS-2

Display (cm3) 449
Hub stroke (mm) 62.10
Clearance (mm) 0.04
Wossner compression Ratio: 13.80:1
OEM Compression ratio: 12.50:1
Dome volume (cm3) +1.50
Compression height (mm) 20.70
Theorectical weight (G)

Cross reference numbers ONLY.
13110-MEN-A70, 40089M09600
