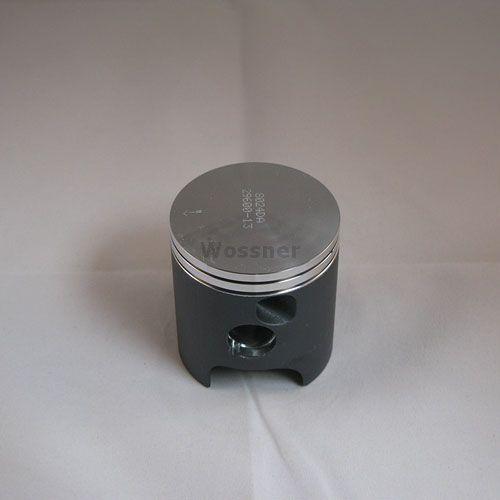

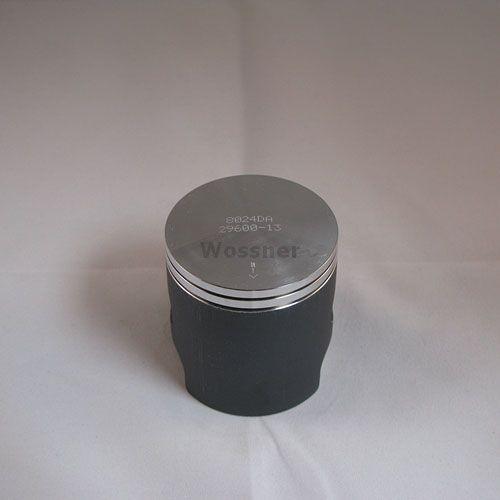

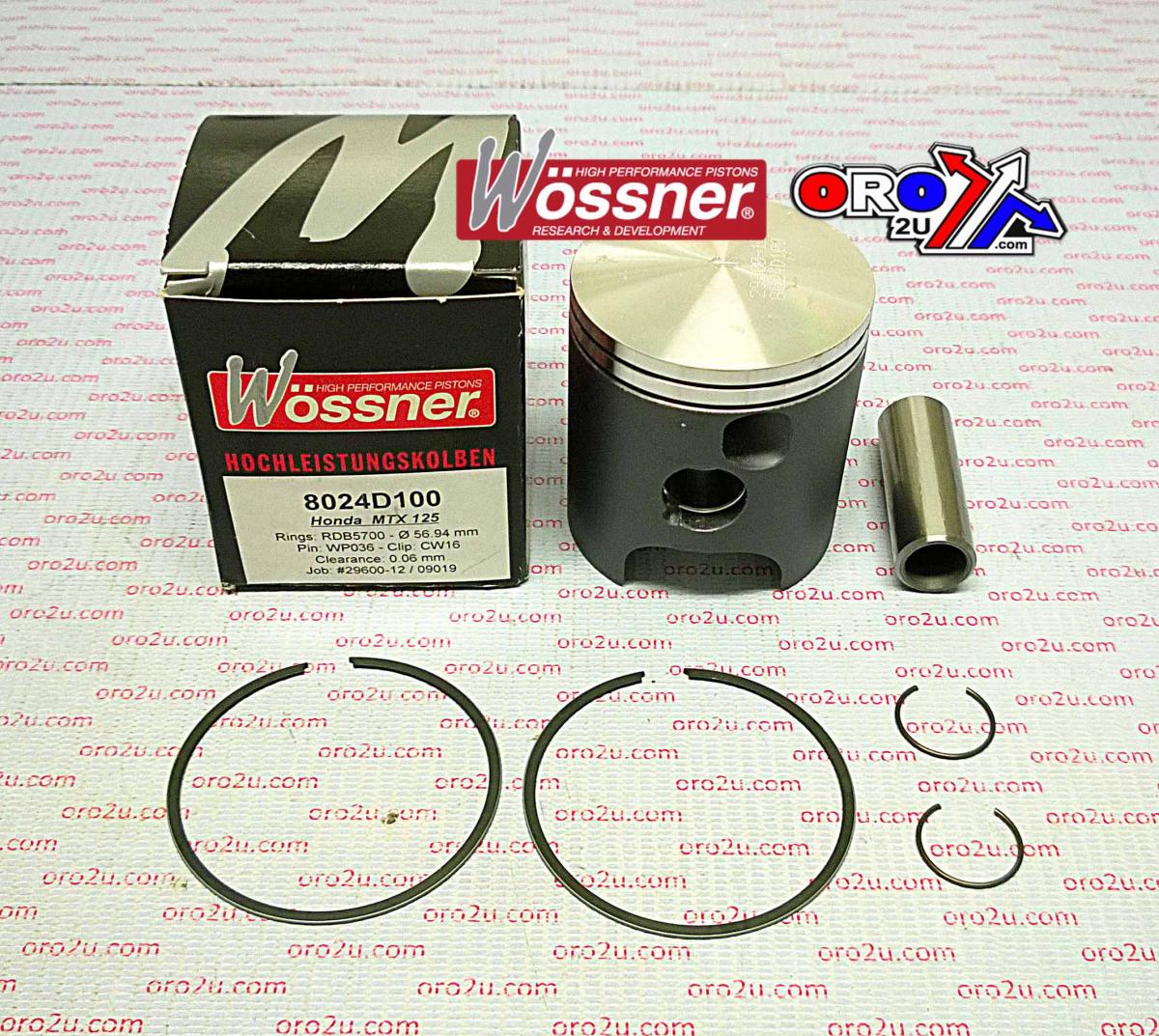

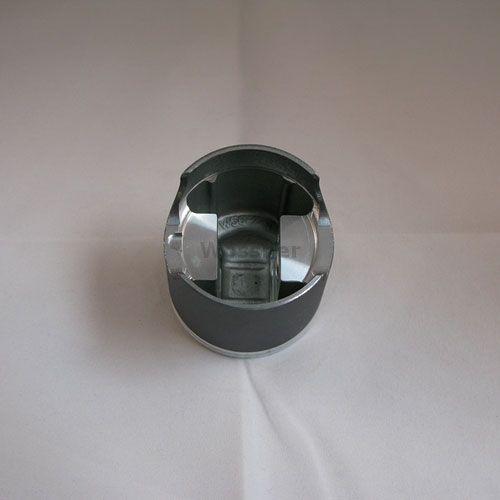

Wossner forged piston kit 8024DA is designed for Honda MBX125 and MTX125 models from 1983 to 1987. With a 56mm bore and a precise engineering focus, this kit offers durability, efficient heat transfer, and consistent performance under high thermal loads. Manufactured in Germany, it reflects high standards of design and quality.

Features

• Forged construction ensures superior strength and durability

• Elliptical design for uniform bearing surface under thermal expansion

• Efficient heat transfer from combustion chamber to cylinder walls

• Engineered to prevent piston collapse and reduce localised pressure

• Made in Germany

Specifications

• Bore: 56mm (Measured: 55.94mm)

• Display Volume: 124 cm³

• Stroke: 50.60mm

• Clearance: 0.06mm

• Compression Height: 30.40mm

• Wossner Compression Ratio: 2-stroke

• OEM Compression Ratio: 2-stroke

• Part No.: 56-W903+000.WO (Wossner Piston Honda MBX125 56 mm Bore, PN# 8024DA)

• Lock P/N: CW16

• Pin P/N: WP036

• Ring Set P/N: RSB5600 x 2

Cross-Reference OEM Part Numbers

• 13140-KE1-003

Vehicle Fitments

• 1983 Honda MBX 125

• 1983 Honda MTX 125

• 1984 Honda MBX 125

• 1984 Honda MTX 125

• 1985 Honda MBX 125

• 1985 Honda MTX 125

• 1986 Honda MBX 125

• 1986 Honda MTX 125

• 1987 Honda MBX 125

• 1987 Honda MTX 125
